FAAC E045 User Manual

E045 15 732786 - Rev.C
ENGLISH

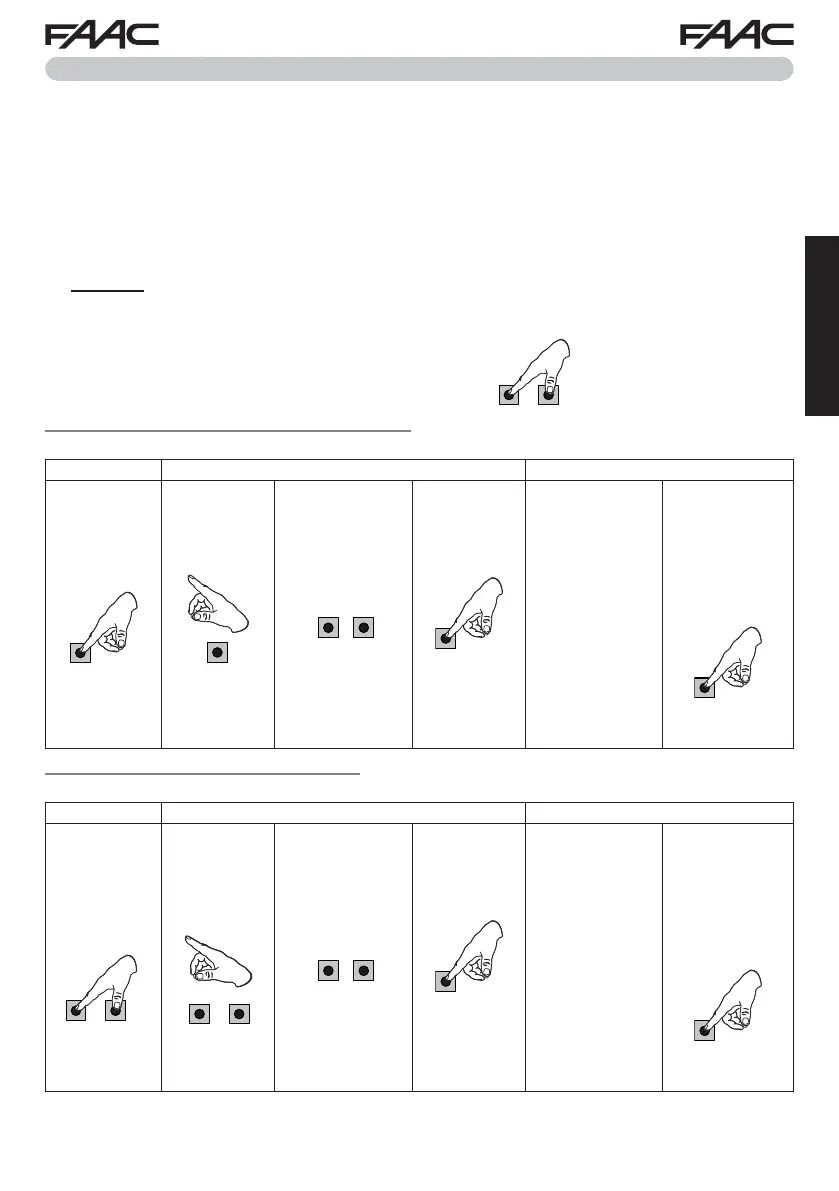

5. PROGRAMMING
Programming is divided in two levels:
• BASIC programming
• ADVANCED programming
The programming phases are (see Tab.):
1. to access PROGRAMMING (1A or 1B);
2. to show the set values and modify them, if you want. Changing the values is effective immediately,
while the final memorisation must be carried out upon exiting programming (
St).
3. exit the programming by using
St function. Select Y to SAVE the configuration you just performed,
otherwise select
no to EXIT WITHOUT SAVING any changes.
You can EXIT programming at anytime:
• press and hold F and then also
-
to switch directly to St.
F
+
- / R2
Tab. BASIC programming phases.
Tab. ADVANCED programming phases
 
PRESS AND HOLD
F:
THE FIRST
FUNCTION
APPEARS

1
F
RELEASE F:
THE FUNCTION
VALUE IS
DISPLAYED
F
USING
+
OR
-
,
SCROLL THE
AVAILABLE VALUES
UNTIL THE DESIRED
ONE
-/ R2
+/ R1
PRESS F:
TO MOVE TO
THE NEXT
FUNCTION

1
F
FUNCTION St
(LAST FUNCTION)
SELECT Y TO SAVE
THE PROGRAMMING
OTHERWISE
SELECT
no TO EXIT
THE PROGRAMMING
WITHOUT SAVING
PRESS
THE BUTTON
F
TO CONFIRM;
AT THE END THE
DISPLAY RETURNS
TO VISUALIZE THE
AUTOMATED SYSTEM
STATUS
F
 
PRESS AND HOLD
F
AND THEN ALSO
+
:
THE FIRST
FUNCTION
APPEARS

1
F
+
+/ R1
RELEASE THE
BUTTONS:
THE FUNCTION
VALUE IS
DISPLAYED
F
+
+/ R1
USING
+
OR
-
,
SCROLL THE
AVAILABLE VALUES
UNTIL THE THE
DESIRED ONE
-/ R2
+/ R1
PRESS F:
TO MOVE TO
THE NEXT
FUNCTION

1
F
FUNCTION St
(LAST FUNCTION)
SELECT Y TO SAVE
THE PROGRAMMING
OTHERWISE
SELECT
no TO EXIT
THE PROGRAMMING
WITHOUT SAVING
PRESS
THE BUTTON
F
TO CONFIRM;
AT THE END THE
DISPLAY RETURNS
TO VISUALIZE THE
AUTOMATED SYSTEM
STATUS
F

1
1
THE FUNCTION IS DISPLAYED UNTIL YOU HOLD
