FAAC E045 User Manual

E045 28 732786 - Rev.C
OK
OK


1”
P1 + P2
> 5”
+/ R1 +/ R1
2 x 2”
RADIO 1
DL11
> 30 cm
RX
TX
OK
OK


1”
MAX
MAX
5”
5”
MAX
MAX
20”
20”
2”
ENGLISH

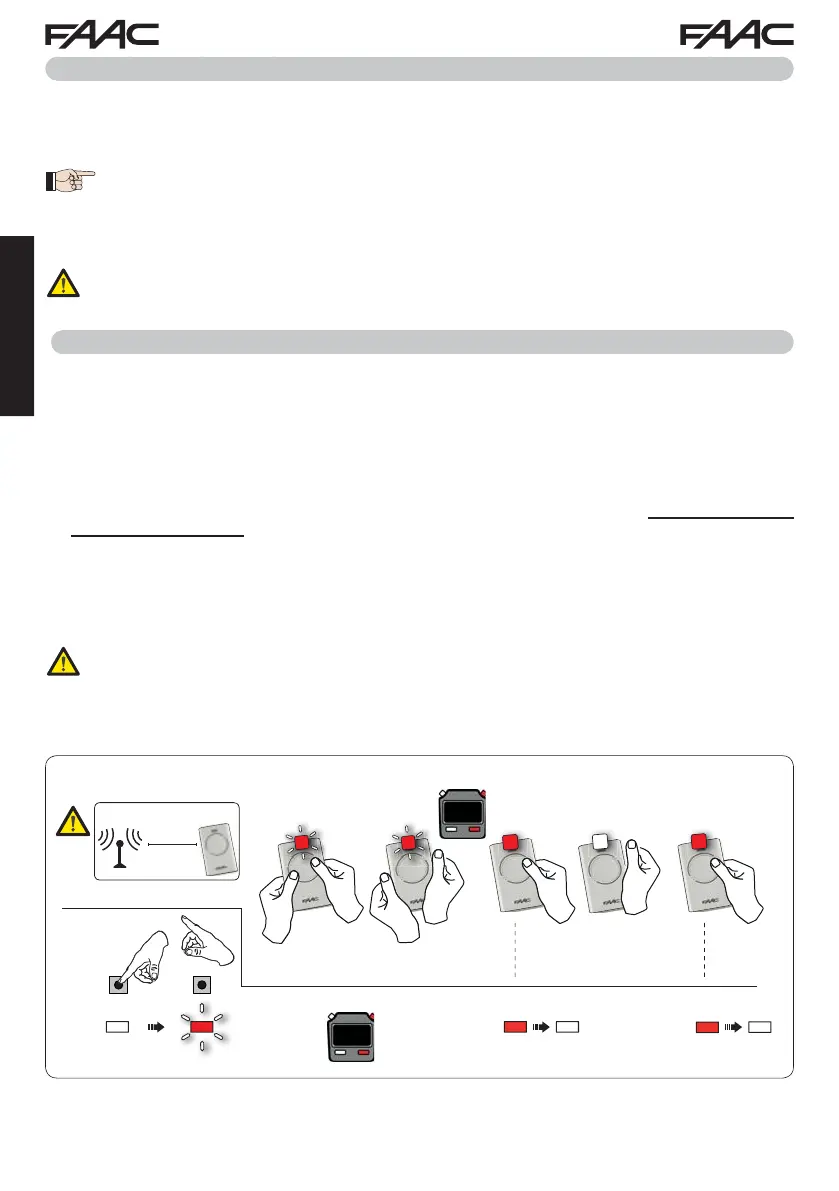

6. MEMORISING THE RADIO CODE
The control board features an integrated 2-channel decoding system (DS, SLH/SLH LR, RC) called
OMNIDEC. This system lets you memorise, using an additional receiver module (on J5 connector)
and more radio controls having different technology but the same frequency. You can thus control
both total opening (OPEN A) and partial opening (OPEN B).
The different types of radio code (DS, SLH/SLH LR, LC/RC) can coexist simultaneously
on the two channels. You can enter up to
255 radio codes divided between OPEN A
and OPEN B/CLOSE.
To use different encoding systems on the same channel, you must complete the learning of
each encoding system and then repeat the procedure for the other one.
Keep the remote control at least 30 cm from the receiver.
6.1 MEMORISING THE
SLH/SLH LR RADIO CONTROLS
1. Press and hold +/R1 - SW1 (OPEN A programming) or -/R2 - SW2 (OPEN B/CLOSE programming).
• After keeping the button pressed for about 5 sec, the corresponding radio LED (DL11 or DL12)
will begin to flash slowly for about 20 sec.
2. Release the button.
3. Simultaneously press and hold P1 and P2 on the
SLH/SLH LR radio control (only MASTER radio
control).
• The radio control LED will begin to flash.
4. Release both buttons.
• Ensure that LED DL11 or DL12 on the board is still flashing (see point 2) and, while the radio con-
trol LED is still flashing, press and hold the desired button on the radio control (the radio control
LED will go on steady).
• The corresponding LED on the board (DL11 or DL12) will go on steady for 1 sec and then go off,
indicating that memorisation has been completed.
5. Release the radio control button.
6. To complete memorisation, press the button of the memorised radio control twice in succession.
• The automated system will perform an opening cycle.
Ensure that there are no obstacles (by people or things) during the automated system
movement.

FAAC E045 Specifications

General

Brand	FAAC
Model	E045
Category	Control Unit
Language	English
