ENGLISH

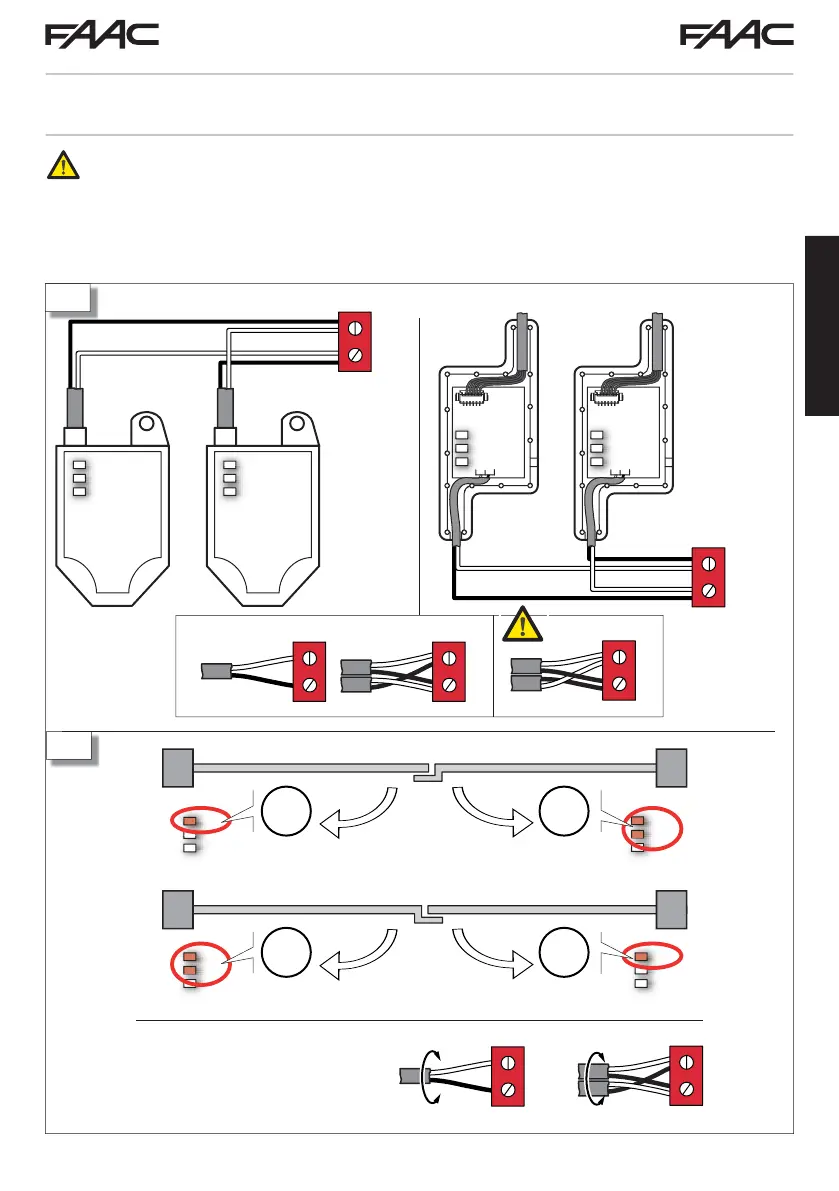

BUS-2EASY encoder
BUS-2EASY encoder connection is done using the bi-polar cables supplied with.
Connection - Address assignment of
BUS-2EASY Encoder
The polarity of the BUS-2EASY line connection determines the correspondence of the
encoder to one leaf or the other.
pay careful attention to the indications of the status LEDs located on the body of each
encoder.
LEAF 1 opens first and closes last.
M1 : 2 LEDs on
M2 : 1 LED on
· Note: to correct the coupling of the
encoder with motor M1 or M2, swap both
wires on the terminals.
