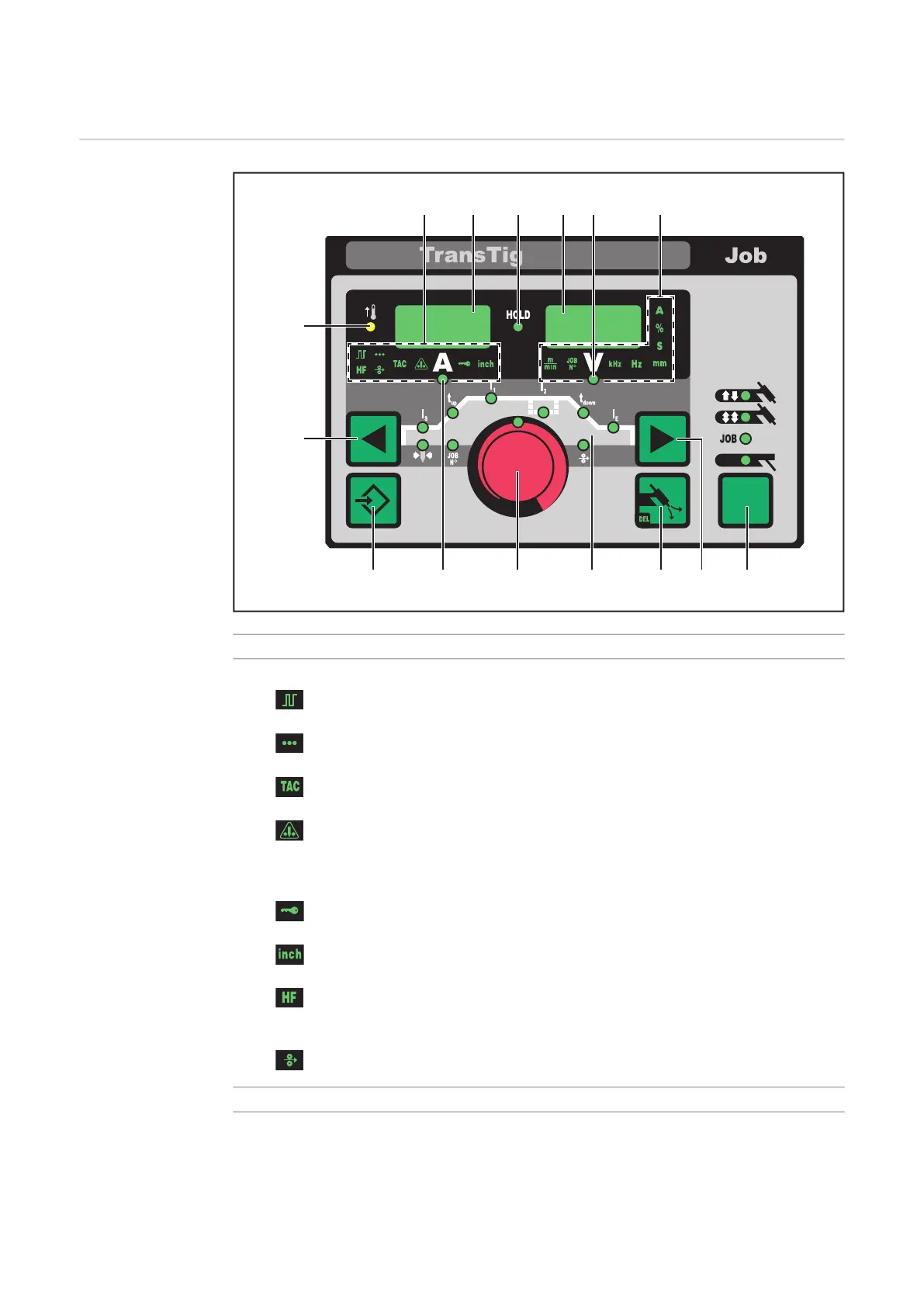

TransTig control panel
TransTig control
panel
No. Function
(1) Special indicators
Pulse indicator
lights up when the F-P setup parameter has been set to a pulse frequency
Spot welding indicator
lights up when the SPt setup parameter has been set to a spot welding time
Tacking indicator
lights up when the tAC setup parameter has been set to a period of time
Electrode overload indicator
lights up if the tungsten electrode is overloaded
See section on TIG welding in Chapter "Welding mode" for more informa-
tion on the electrode overload indicator.
Keylock indicator
lights up when the keylock is activated
Inch indicator (only for TransTig 2500 / 3000 / 4000 / 5000)
lights up, when the setup parameter SEt is set to US
HF (high frequency) ignition indicator
lights up when the HFt setup parameter has been set to an interval for the
high frequency pulses
Cold wirefeeder indicator
lights up when a cold wirefeeder is connected
