Fronius MagicWave 2200 Job User Manual

53
EN

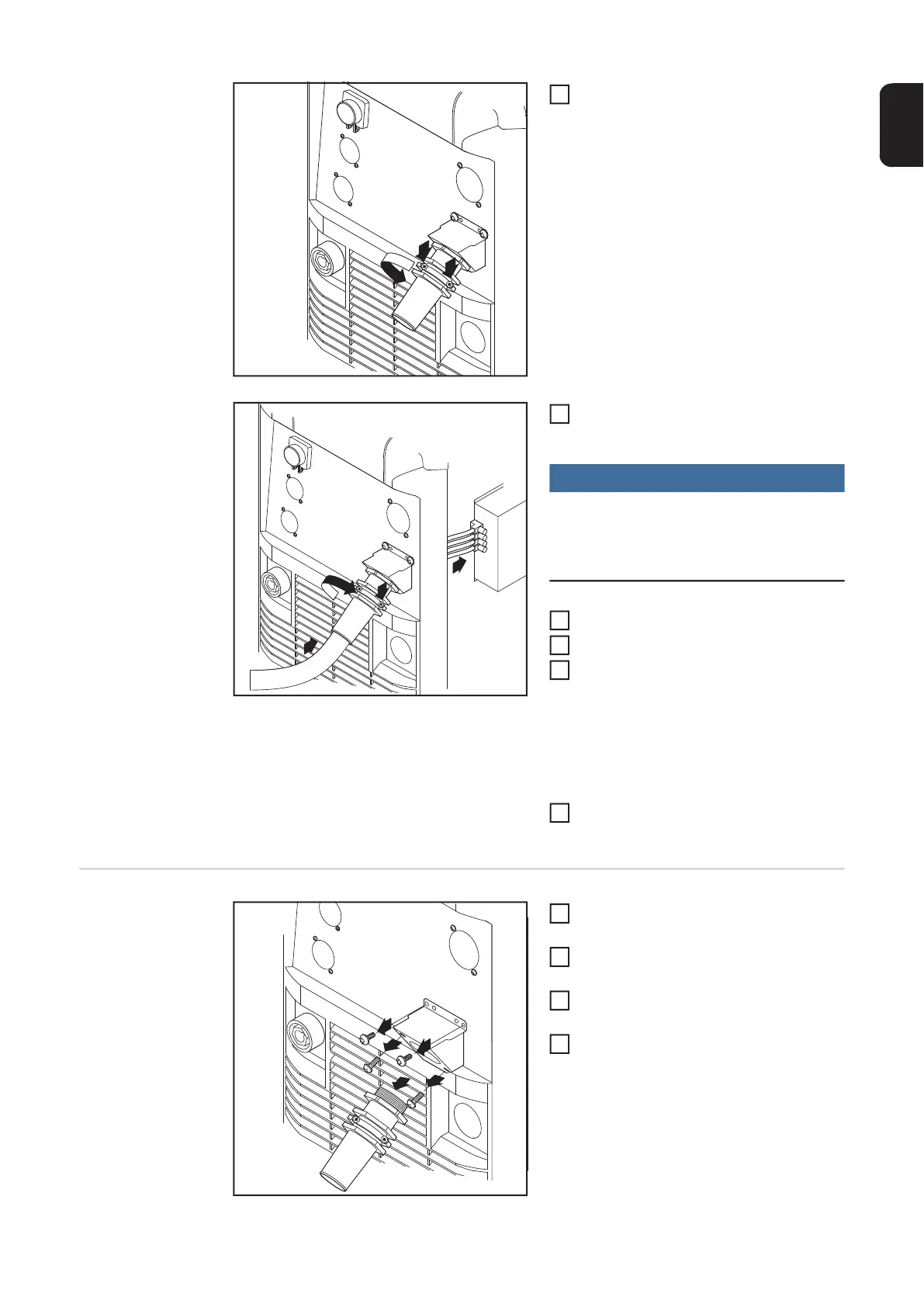

Undo the screws (2 x) and clamping
nut (size 30) on the strain-relief device
Insert the mains cable into the strain-
relief device
NOTE!
Push the mains cable in far enough to
make it possible to connect the ground
conductor and the phase conductors to
the block terminal properly.
Tighten the clamping nut (size 30 mm)
Tighten the screws (2 x)
Connect the mains cable to the block
terminal correctly:
– Ground conductor (green, or
green with yellow stripes) to the
PE connection
– Phase conductors to connections
L1 - L3
Re-fit the left side panel of the power
source
Replacing the
strain-relief de-
vice
Remove the left side panel of the pow-
er source
Remove the screws (2 x) from the exis-
ting strain-relief device
Pull the existing strain-relief device for-
wards to detach it
Remove the screws for the adapter
plate, and remove the adapter plate
4
PE
W1
V1
U1
5
7
8
6
5
6
7
8
9
2
3
2
4
4
1
2
3
4
