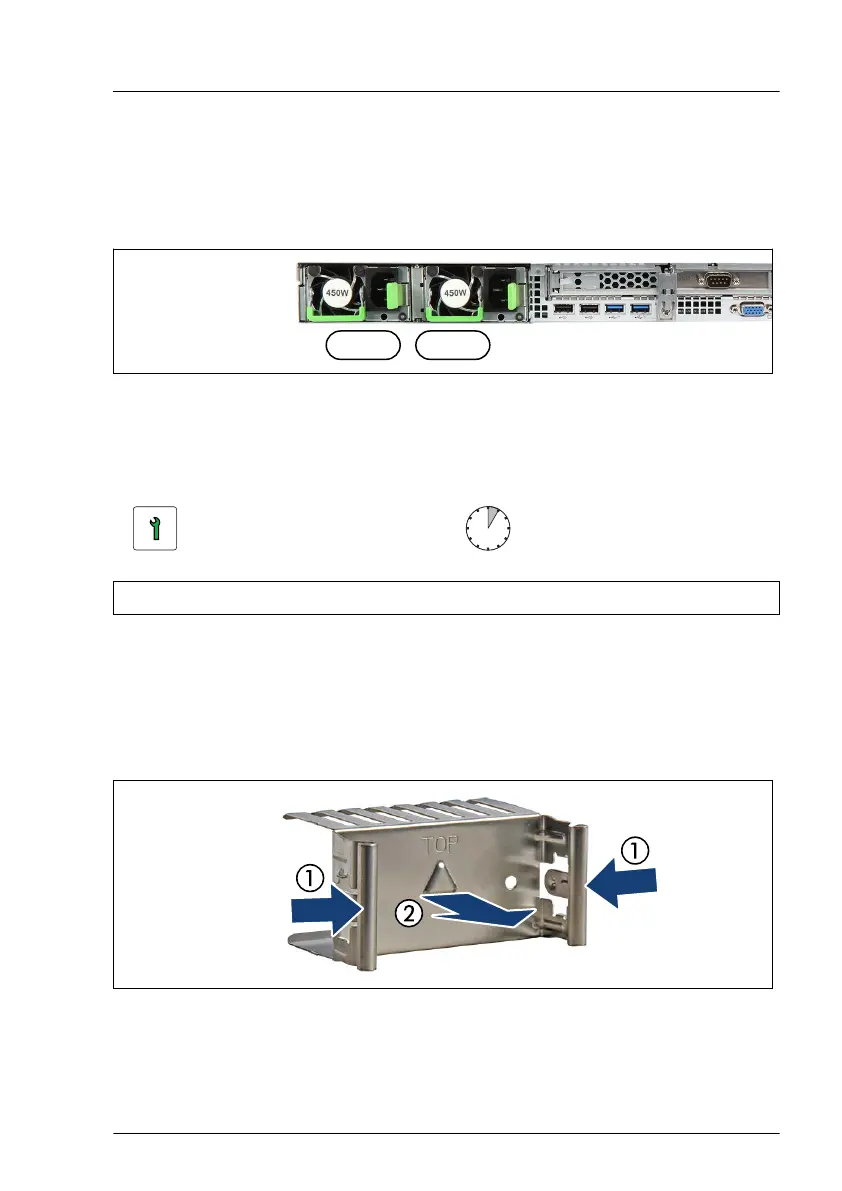

6.4 Redundant power supply

6.4.1 PSU bays

PSU 1 PSU 2

Figure 28: PSU bays

6.4.2 Installing a hot-plug PSU

Customer Replaceable

Unit (CRU)

Hardware: 5 minutes

Tools: Tool-less

Preliminary steps

No steps needed.

Removing the dummy cover

Figure 29: Removing the dummy cover

▶

Press in on both release latches (1) and remove the dummy cover (2).

Power supply unit (PSU)

RX1330 M4 Upgrade and Maintenance Manual 105
