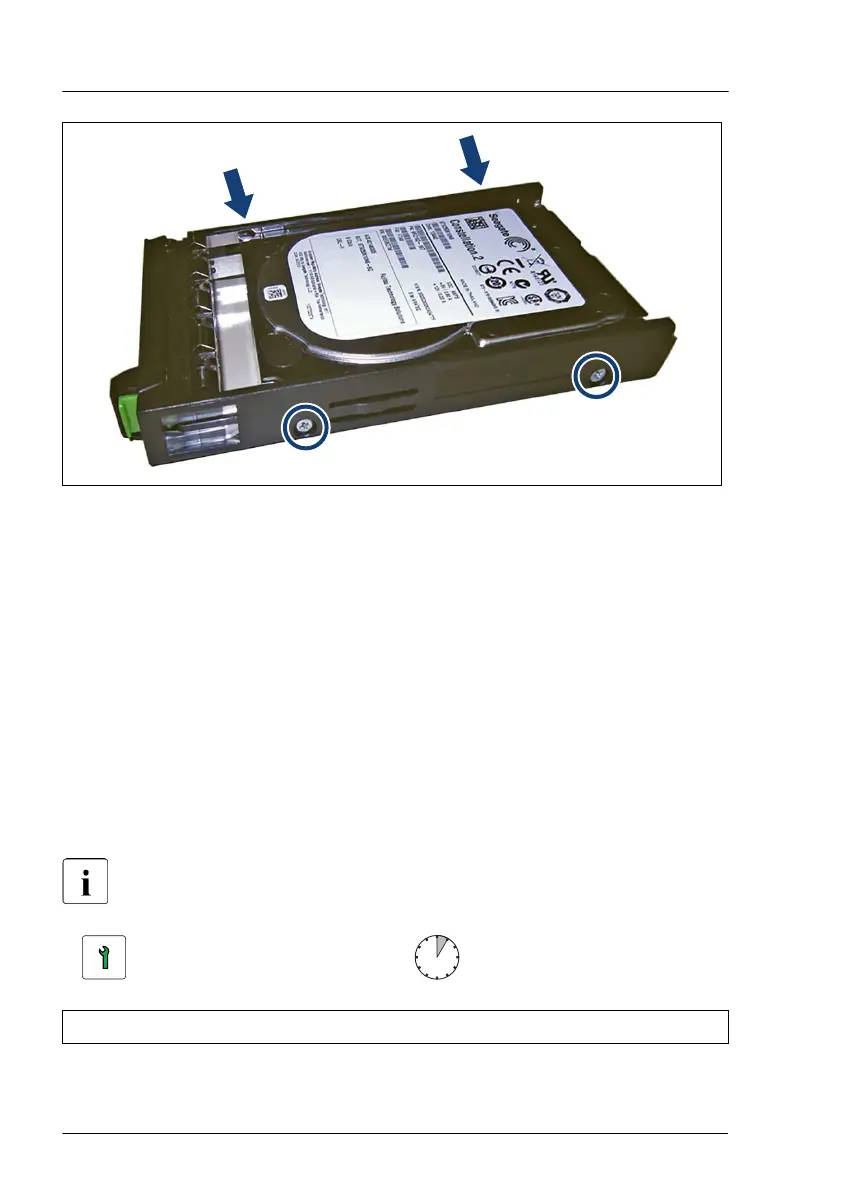

Figure 56: Installing the 2.5-inch HDD/SSD in the 2.5-inch installation frame (B)
â–¶
Fasten the 2.5-inch HDD/SSD with four screws.
Removing a 2.5-inch HDD/SSD from a 2.5-inch installation frame
â–¶
Please proceed in reversed order
.
Concluding steps
No steps needed.
7.3.2 2.5-inch HDD/SSD and 3.5-inch installation frame
Installing or removing the installation frame is only necessary for Japan.
Customer Replaceable
Unit (CRU)
Hardware: 5 minutes
Tools: Phillips PH1 / (+) No. 1 screw driver
Hard disk drive (HDD) / solid state drive (SSD)
