Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

9.2 Basic information
CPU
Slot 2
Slot 1
PWD CLR
RCVR
1 2
external connectors
LAN 1
LAN 1
Management
LAN
VGA
Shared LAN 2
USB 2.0
USB 2.0
USB 3.1
Gen 2
DIMM 2A
DIMM 1A
DIMM 2B
DIMM 1B
Micro
SD
FAN1
FAN2
SSD2
M.2
M.2
SSD1
Battery
TPM
Slot 3
FAN3
FAN4
iRMC
S5
JP8
PWR1
Front
Panel2
Front USB
Front Panel1
PWR2
PWR3
P30
HDD LED
ROC
PWR4
INDICATE
CSS
SATA
ODD
Front VGA
OOB
Intel
i210
Service
LAN
USB 1
SATA
0-3
PWR MAIN
PC98
SERIAL
Reset
Intel
C246
FAN5
USB 3.1
Gen 2
Intel
i210

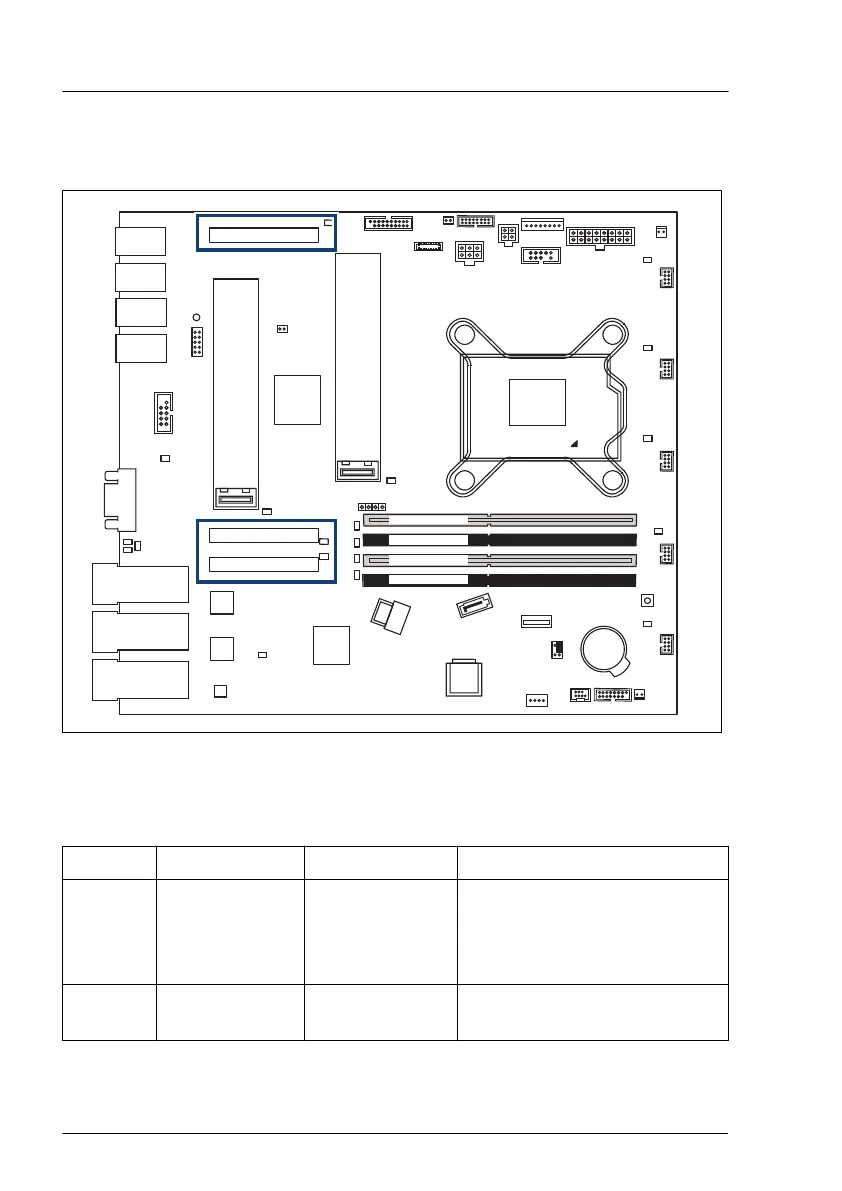

Figure 101: PCIe slots for riser cards
Equipping the PCIe slots
PCI slot Riser module Type Description
1 Riser module 1 PCIe Gen3 x8
(mechanical x8)
Low-profile slot, maximum
length 167.65 mm; dedicated
slot for modular RAID
controller
2
Riser module 2 PCIe Gen3 x4
(mechanical x8)
Low-profile slot, maximum
length 167.65 mm
Expansion cards and backup units
184 Upgrade and Maintenance Manual RX1330 M4
