1. MOUNTING
1-14

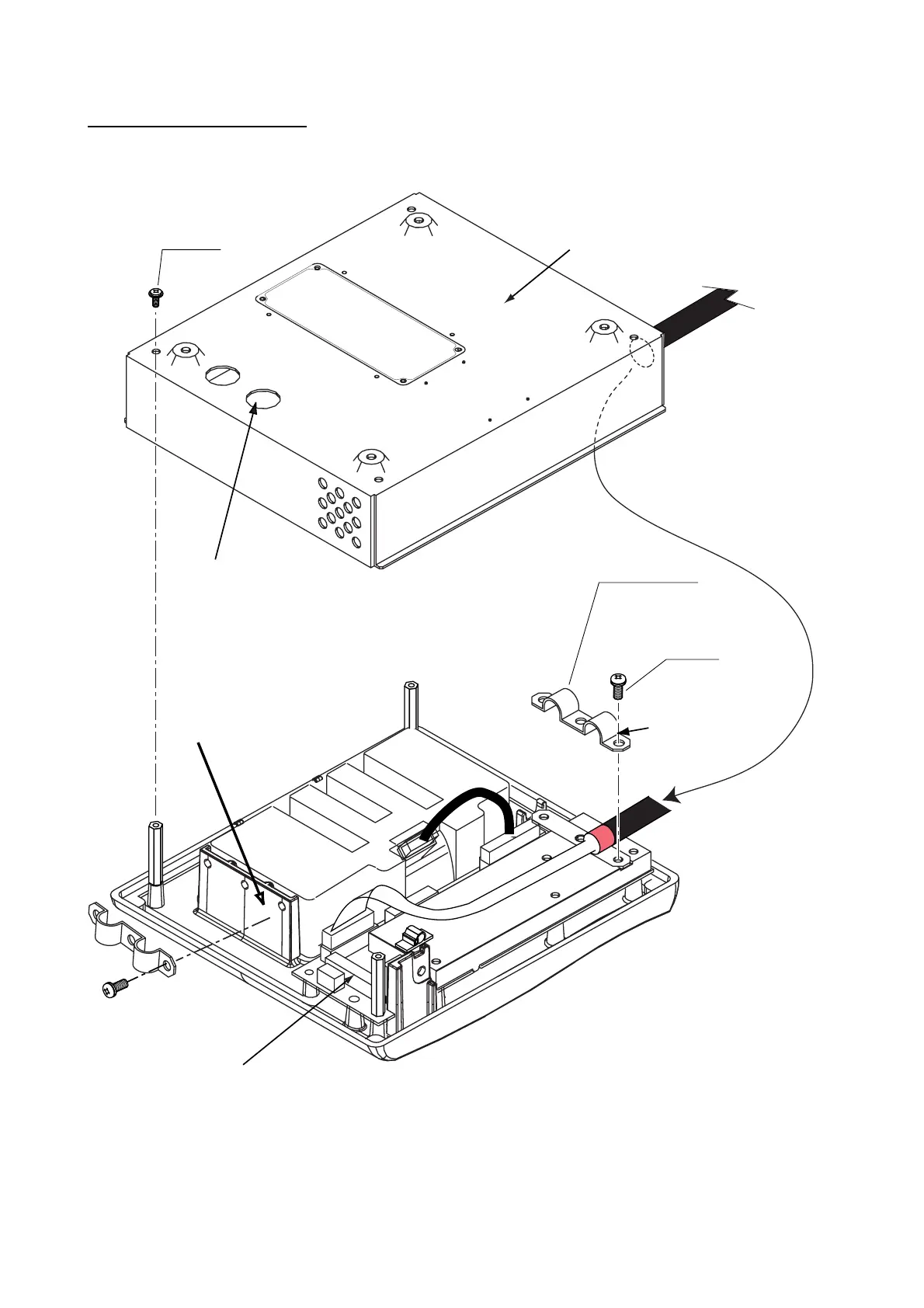

To change the cable entry
To change the cable entry from the side (default) to the bottom, modify the unit as shown
below.
Cable clamp
03-163-7804
J524
J521
Screw
M3x8
Screw
M4x8
2. Pull out the cable.
1. Remove the
cable clamp.
3. Pass the cable from this hole.
4. In here, clamp the copper part
of the cable with the cable
clamp removed at step1.
J522: If you connect RCU-016 in series with RCU-015, plug in here.
Bottom of the unit
RCU-015/016: Changing cable entry
