2. WIRING
2-3

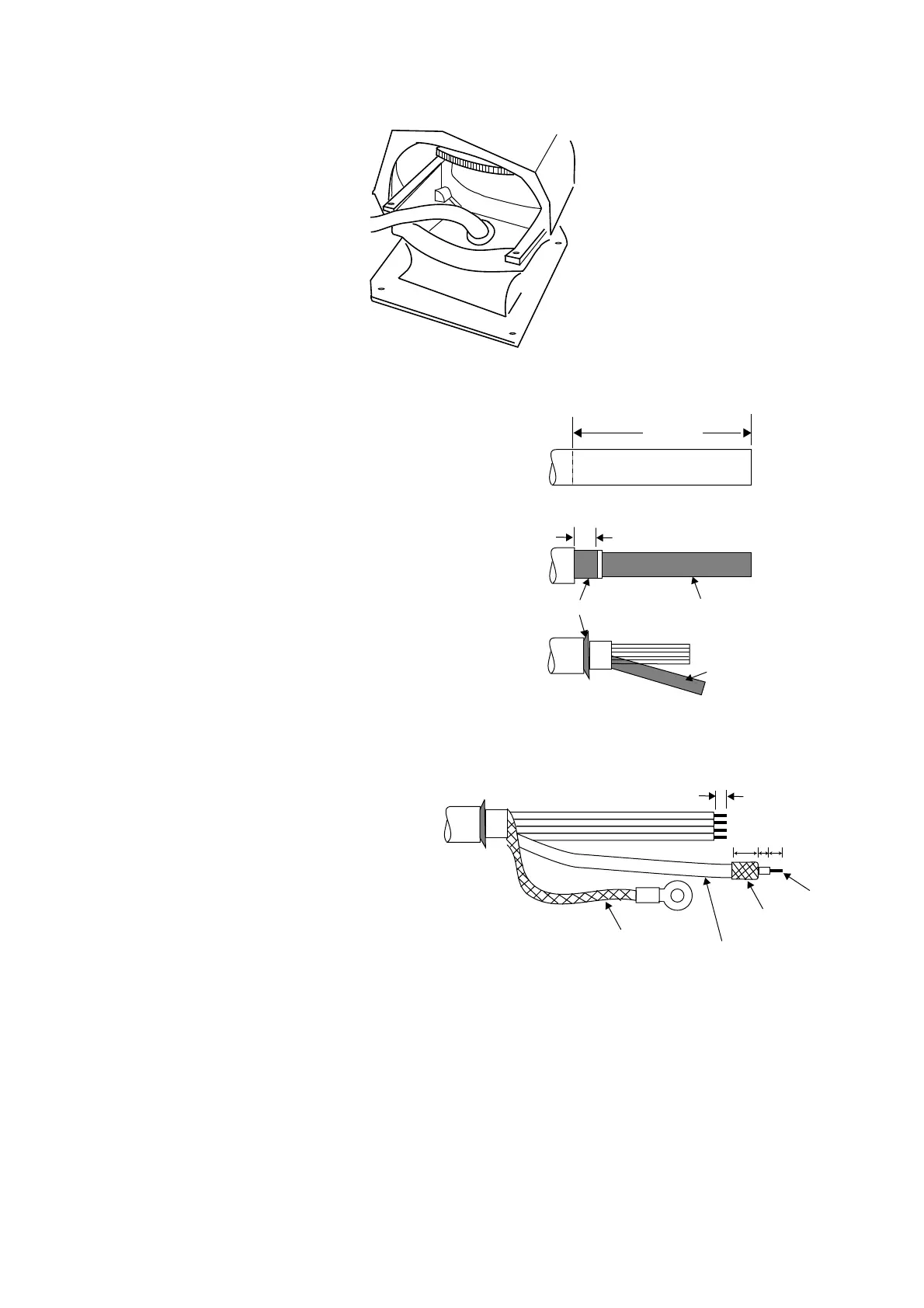

Antenna unit, front view, cover removed
6. Fabricate the signal cable RW-9600
as shown below.
a) Remove the outer vinyl sheath, by
about 500 mm, then armor and
inner sheath by about 470mm.
b) Unravel the shield to expose the
core wires.
c) Trim each core wire (except
coaxial wire) considering its
location on the terminal board.
d) Trim the shield leaving about 500
mm and attach crimp-on lug
FV5.5-4 (yellow,
I4).
e) Remove insulation of each wire by
about 6 mm.
7. Slide a washer, and fold back armor.
Slide a washer, rubber gasket,
washer, and clamping ring in order.
Cut the armor around the washer so
it is level with the washer.
Vinyl sheath
Shield
500mm
Shield
Fold back shield.
Conductor
6
14 5 9
Coaxial cable
30mm
Shield
Armor sheath
To Next Page
