Furuno 2127 User Manual

3-1
3. SETTING AND ADJUSTMENT
3.1 DIP Switch Setting
The processor unit is shipped for model FAR-2117/-D or FAR-2127/-D. If your model is
FAR-2817 (-D)/2827 (-D)/2117-BB/2127-BB, change the DIP switch setting as follows.
1. Remove the top cover of the processor unit.

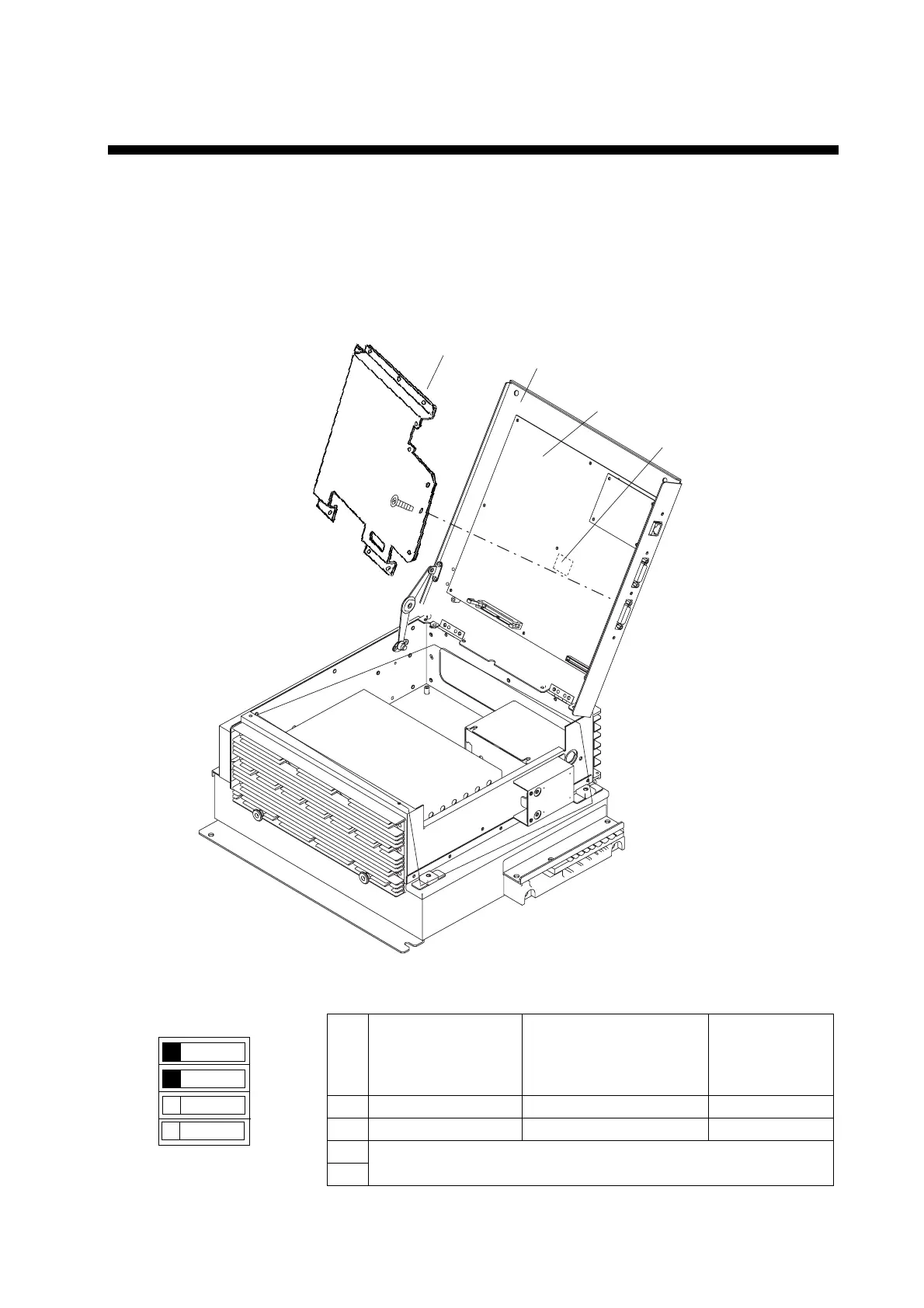

2. Open the SPU assembly block.
Shield cover
SPU assembly block
SPU board 03P9337
DIP switch S1
3. Set the DIP switch S1 as follows.
S1
Monitor SXGA for
FAR-2117/-D,
2127/-D
(Default)
Monitor UXGA for
FAR2817/-D, 2827/-D
(MU-231CR
S. No. 0269 and later)
FAR-2117-BB
FAR-2127-BB
1 OFF ON OFF
2 OFF OFF ON
3
4
Not used.
Note: Set #1 and #2 of S1 to OFF for MU-231CR S. No. 0268 and earlier.
1
2
3
4
OFF
ON
S1
