3. SETTING AND ADJUSTMENT
3-16
3.7 Dual Radar Display (non IMO-type only)

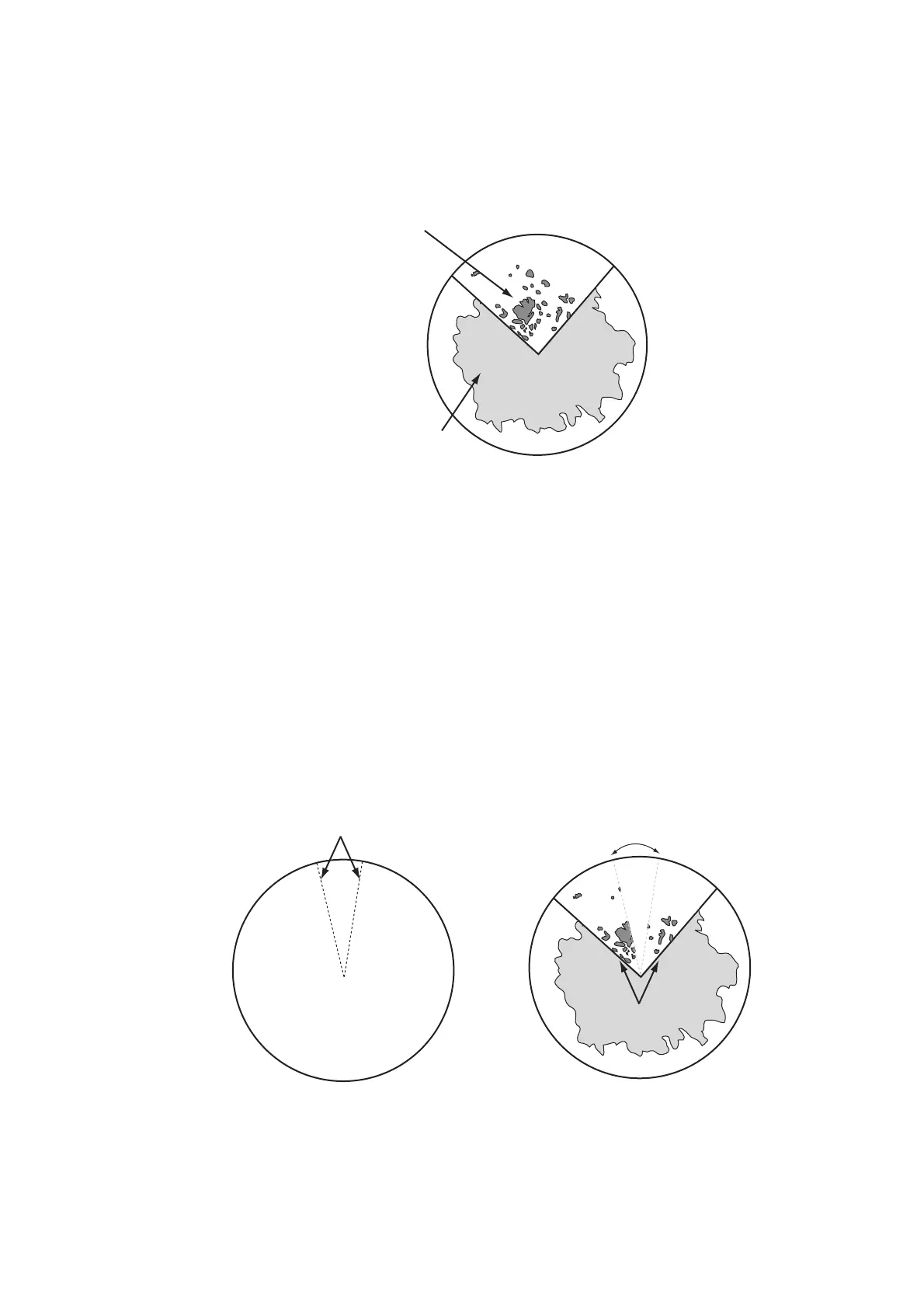

The image from two or more radars may be shown together on one radar display. This
allows you to take advantage of the best characteristics radars has to offer.
Image from main radar
Image from
external radar
Separate internal and external
images ("COMBINE" setting)
The following should be done in order to enable the dual radar display:
• Set antenna position correctly on both the main radar and the external radar.
• Select external radar to use, from the DUAL RADAR menu. (See paragraph
3.7.3.)
3.7.1 Enabling/Disabling the Dual Radar Display
Enable or disable the dual radar display as shown in this section.
Note 1: The Tx blanking sector boundary lines are not shown when the dual radar display is
active. Further, neither the internal or external image is shown in the Tx blanking
sector.
Tx blanking sector
Tx blanking sector
Display
area
Dual radar display with
Tx blanking sector
Tx blanking sector is not shown.
No image in Tx blanking sector.
To Next Page
