4. INSTALLING OPTIONAL EQUIPMENT
4-3

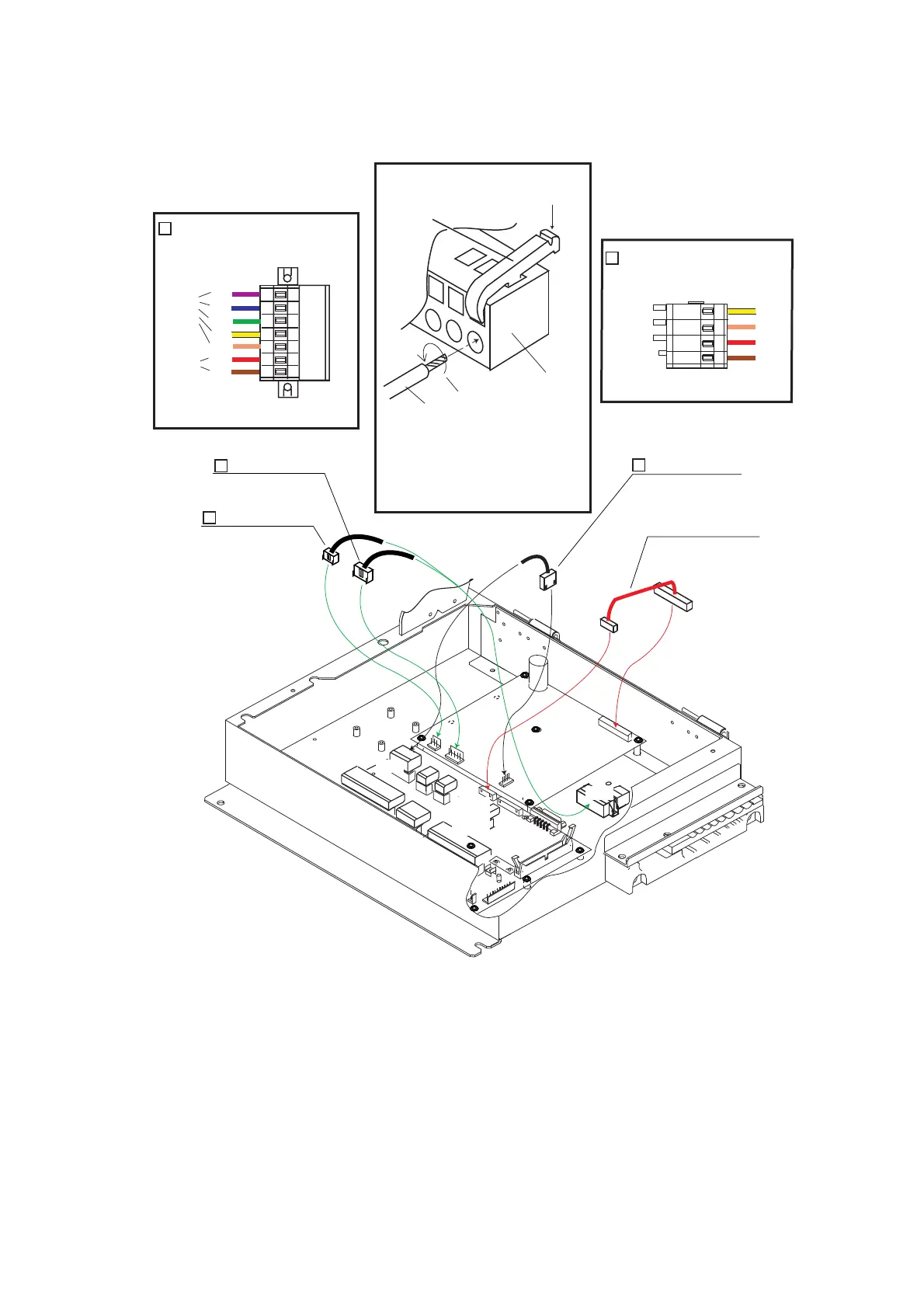

4. Connect the GYRO CONVERTER board and J602 with two connector assemblies
03-2089 and 03-2090.
1
1
4
1
12
1
3
1
2
1
3
1
12
1
5
1
7
XH-PH connector assy.
03-2088 (6-14P)
NH connector assy.
03-2091 (5P)
VH connector assy.
03-2089 (5P)
VH connector assy.
03-2090 (3P)
J1
P1
J603
P603
GYRO CONVERTER
64P1106A
TB
03P9342
P608
J7
J4
J5
P5
P4
P7
J602
To P608
To J602
1
2
2
P608
1
2
34
BRN
RED
ORG
YEL
1
Connection for P608
2
Connection for J602
17 23456
BRN
RED
ORG
YEL
GRN
BLU
PPL
J602
Procedures
1. Twist the cores
2. Press the terminal opener downward.
3. Insert the wire to hole.
4. Remove the terminal opener.
5. Pull the wire to confirm that it is
secure.
Terminal opener
Wiring for WAGO connector
WAGO connector
Wire
Twist
Press downward.
From J5
From J4
Connecting connector assemblies
To Next Page
