4. INSTALLING OPTIONAL EQUIPMENT
4-18

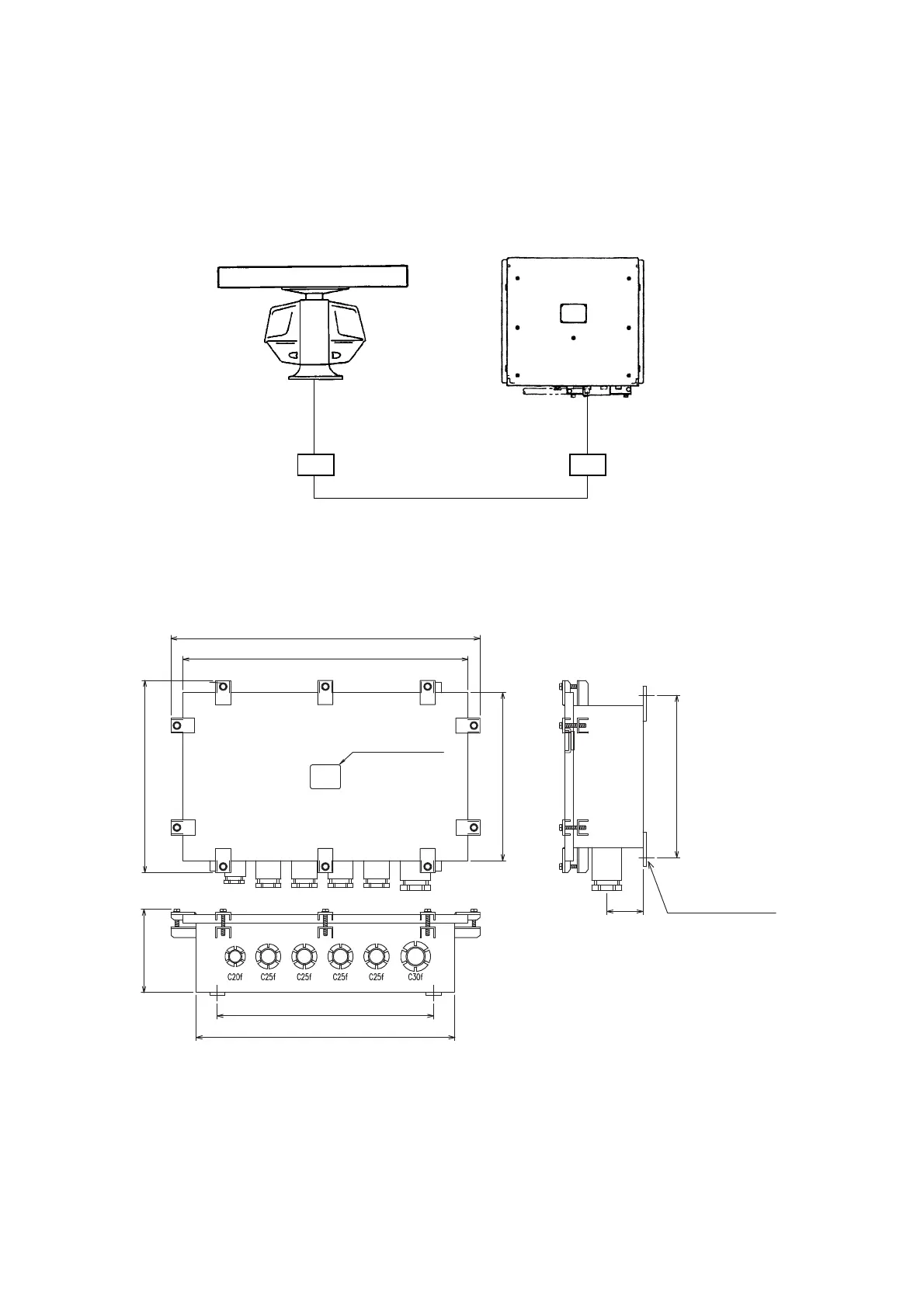

4.6 Junction Box
If the length of the antenna cable is more than 100 m, the optional junction boxes are
required. These boxes should be mounted at the location protected because its
waterproofing is IPX3.
RW-9600
(Max 15 m)
Junction box
RJB-001
RW-9600
(Max 15 m)
DPYCY-6 (3 pcs.)
TTYCY-4 (1 pc.)
RG-12/UY (1 pc.) (Max 270 m)
Antenna unit
Processor unit
Junction box
RJB-001
Shipyard supply
Mounting
Fasten the junction boxes to the mounting location with four sets of M8 bolt and nut.
514
474
320
280
139
360
430
270
60
NAMEPLATE
4-
I 10
FIXING HOLES
Mass: 12kg
