4. INSTALLING OPTIONAL EQUIPMENT
4-9
4.2 Memory Card Interface Unit
Mounting considerations
When selecting a mounting location, keep in mind the following points:
x Locate the memory card interface unit away from heat sources because of heat that can
build up inside the cabinet.
x Locate the unit away from places subject to water splash and rain.
x Leave sufficient space at the sides and rear of the unit to facilitate maintenance.
x A magnetic compass will be affected if the unit is placed too close to the magnetic
compass. Observe the compass safe distances on page ii to prevent deviation of a
magnetic compass.

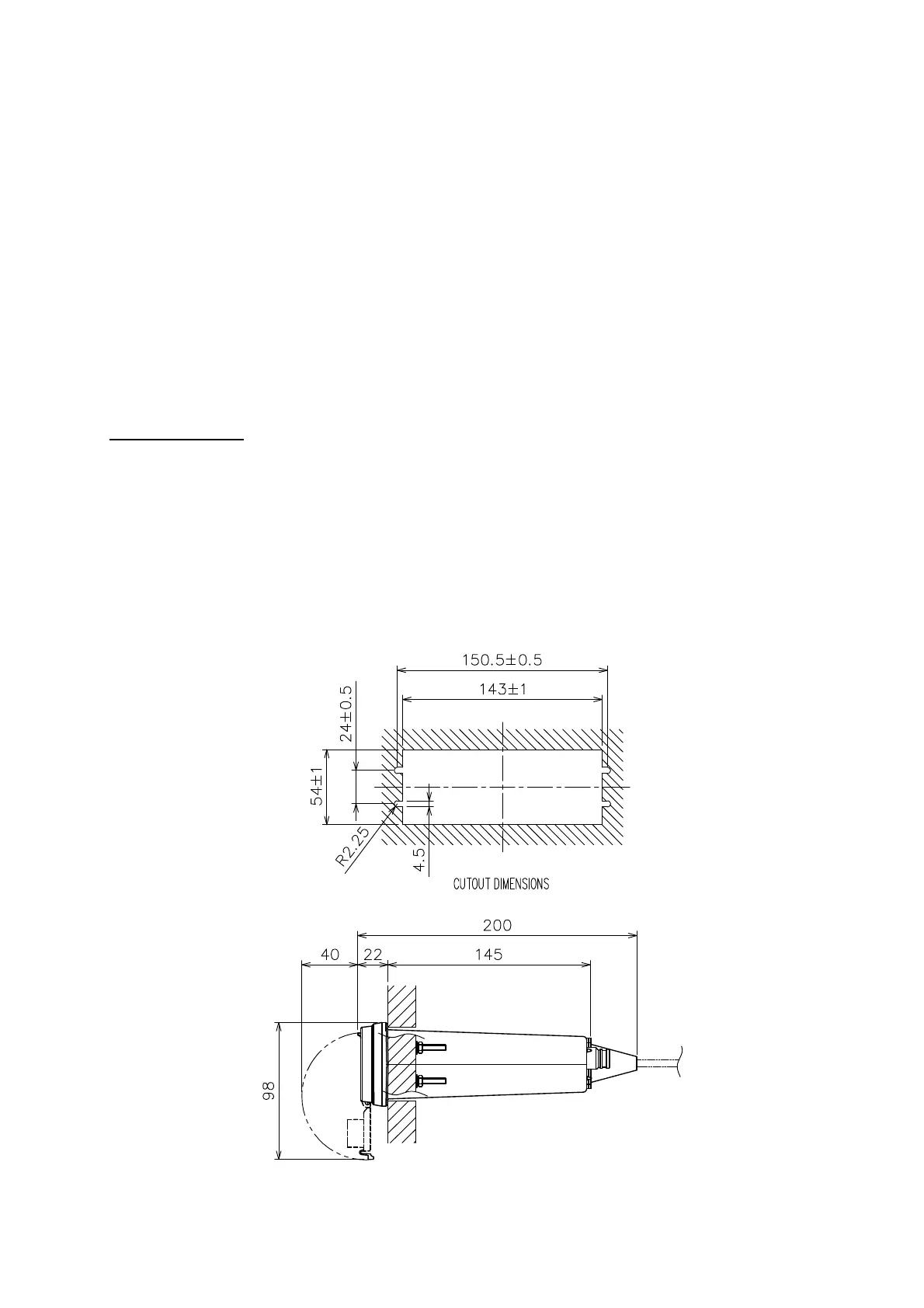

Flush mounting
This unit can be flush-mounted in a panel with the standard installation materials.
1. Prepare a cutout in the mounting location, referring to the outline drawing at the end of
this manual.
2. Screw in the threaded rods to the flange of the front panel of the unit securely by hands.
3. Set the unit to the cutout.
4. Insert the flat washer, spring washer and nut in that order for each rod and fasten the
nuts.
Flush mounting
To Next Page
