4. INST
ALLING OPTIONAL
EQUIPMENT
4-16

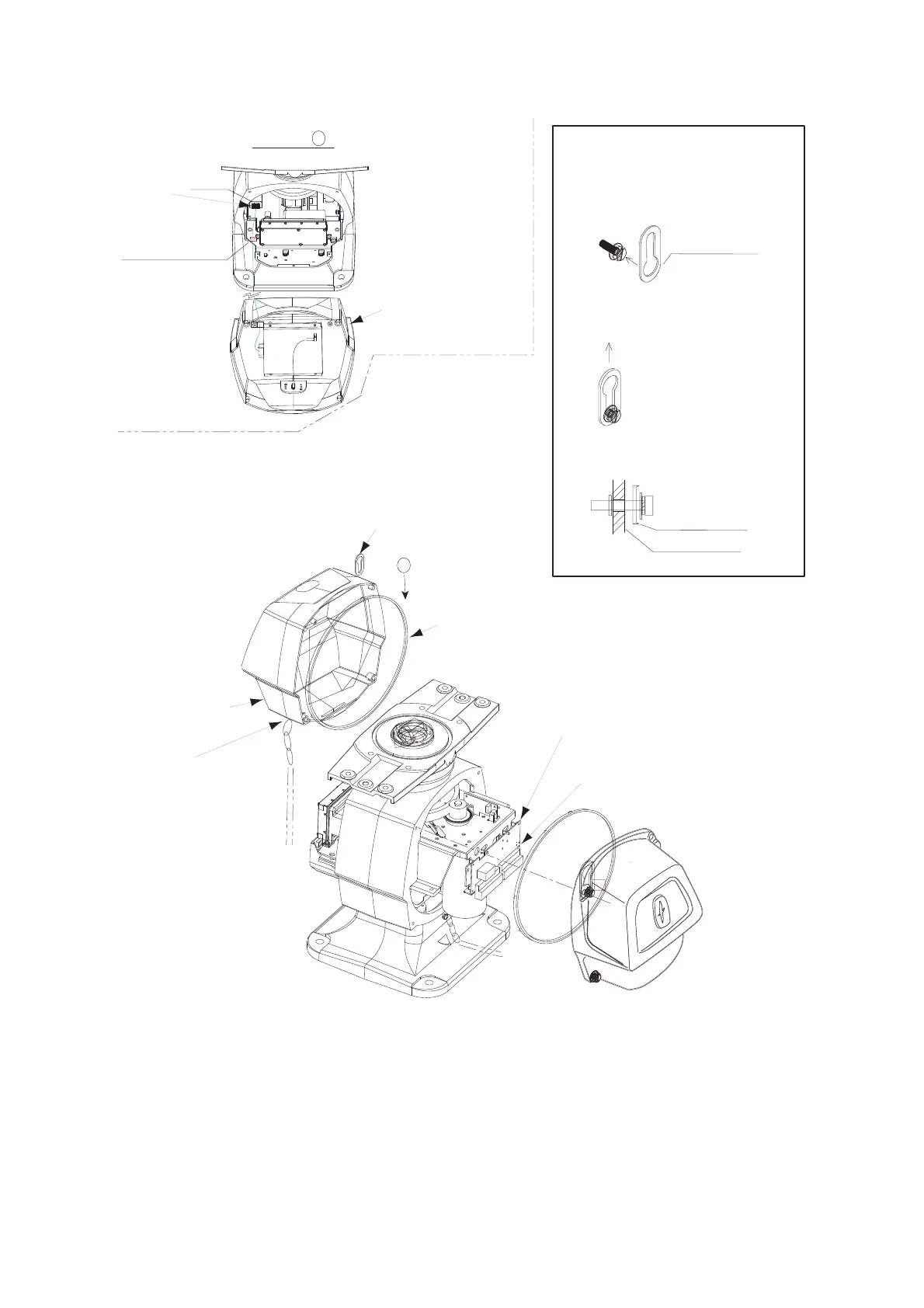

Lifting fixture
*
A
P922
View
Fix the cable.
Stern side
Bow side
Gasket
Lifting fixture
Scanner cover assy
Scanner cover assy
Relay plate
TB board
J911 is on rear side.
1.Insert the lifting fixture
as shown below.
Lifting fixture
Coating face
Note:Fix flat side of the fixture to
the coating face.
2. Fix the lifting fixture
as shown below.
Upside down the fixture
from step 1 and pull it
in arrow mark direction.
TB board 03P9349
How to fix lifting fixture
Change the chain here.
B
75
77
Table of Contents
Default Chapter
1
Table of Contents
1
Safety Instructions
3
Equipment Lists
5
Standard Supply
5
Optional Equipment
6
About the Category Sticker
7
System Configuration
8
1 Mounting
9
Antenna Unit
9
Mounting Considerations
9
Assembling the Antenna Unit
11
Coating the Waveguide Flange with Anticorrosive Sealant
11
Fastening the Antenna Unit to the Mounting Platform
12
Fastening the Radiator to the Radiator Bracket
12
Antenna Unit, Front View
13
How to Mount the Antenna Unit
13
Monitor Unit
14
Mounting Procedure
14
Flush Mounting
14
Flush Mounting of Monitor Unit
15
Attaching Panel Hook and Panel Cover
15
Desktop Mounting
16
Contents of FP03-09820/09830
16
Hood
17
Contents of Hood
17
Control Unit
18
Fixing with KB Fixing Plate
19
Fixing Without KB Fixing Metal
19
Side View for RCU-014/015/016
19
To Connect RCU-016 in Series with RCU-014
21
Inside of RCU-014
21
To Change the Cable Entry
22
Processor Unit
23
Floor Mounting or Bulkhead Mounting
23
2 Wiring
25
Interconnection
25
Standard Interconnection
25
Wiring Consideration
25
Antenna Unit, Rear View
26
Antenna Unit, Front View, Cover Removed
27
Signal Cable Entrance
28
Fabricating the Power Cable
30
Monitor Unit (Rear Panel)
30
Processor Unit
31
Cable XH10P-W-6P L=20/30M
32
Connection of Cables
32
Xh10P-W-5P-A L=10/20/30M
32
Location of Connectors
33
Cable Fabrication for the Cables Connected to the 03P9342 Board
34
Connection of Sub-Display
35
Changing AC Power Specification of Processor Unit
36
3 Setting and Adjustment
39
DIP Switch Setting
39
Initializing Tuning
40
Heading Alignment
41
ECHO ADJ Menu
42
How to Access the Installation Mode with the RCU-015 Trackball Style Controller
43
Adjustment Sweep Timing
44
Examples of Correct and Incorrect Sweep Timings
44
Suppressing Main Bang
45
Other Settings
46
ECHO Menu Setting
46
Cable ATT ADJ
46
Default and Height
46
Scanner Setting
47
Installation Menu Setting
48
Own Ship Info Menu Setting
50
TT PRESET Menu Setting
51
Other Menu Setting
53
Dual Radar Display (Non IMO-Type Only)
54
Enabling/Disabling the Dual Radar Display
54
Tx Blanking Sector
54
Dual Radar Display with Tx Blanking Sector
54
Specifying Sector Width and Length
57
Choosing External Radar (Image Source)
59
4 Installing Optional Equipment
61
Gyro Converter GC-10
61
Installing the GYRO CONVERTER Board
61
Attaching GYRO CONVERTER Board in the Processor Unit
62
Connecting Connector Assemblies
63
Installing Optional Equipment
63
Attaching Plastic Cover for GYRO CONVERTER Board
64
Connection of External Power Supply
65
DIP Switch, Jumper Wire Settings
65
Default Setting
65
Connection of External Power Supply to GYRO CONVERTER Board
65
Setting Method 1: DIP Switch Settings and Gyrocompass Specifications
66
Setting Method 2: by Make and Model of Gyrocompass
67
Location of DIP Switches, Jumper Wires on the GYRO CONVERTER Board
68
Setting the Heading Readout on the Radar Display
68
GYRO CONVERTER Board
68
HDG Menu
68
Memory Card Interface Unit
69
Connection
70
Desktop Mount
70
Console Mount
70
LAN Cable Kit
70
DVI-RGB Conversion Kit (for VDR Connection)
72
Processor Unit (Lower Part)
73
Fixing the DVI-RGB Conversion Board
74
Connecting Wires to the Housing
74
Performance Monitor PM-31
75
How to Fix Lifting Fixture
76
BNC Connector Converter
77
Junction Box
78
Cable Fabrication
79
5 Input/Output Data
83
IEC 61162 Input Sentence and Priority
84
IEC 61162 Output Sentence
84
Packing List
87
Antenna Unit Outline Drawing
101
Antenna Unit (W/De-Icer) Outline Drawing
109
Processor Unit Outline Drawing
113
Monitor Unit (Flush Mount) Outline Drawing
114
Monitor Unit (Desctop Mount) Outline Drawing
115
Control Unit Outline Drawing
118
Control Unit (Flush Mount) Outline Drawing
119
Control Unit (Tabletop Mount W/Kb Plate) Outline Drawing
120
Control Unit (Desktop Mount) Outline Drawing
121
Control Unit (Tabletop Mount W/Fixture) Outline Drawing
123
Memory Card Interface Unit (Flush Mount) Outline Drawing
127
Memory Card Interface Unit (Tabletop Mount) Outline Drawing
128
Memory Card Interface Unit (Overhead Mount) Outline Drawing
129
Display Unit (Combination Type) Outline Drawing
130
Switching Hub Outline Drawing
132
Marine Radar/Arpa Interconnection Diagram
133
Interconnection Diagrams
133
