Furuno FAR-2117 Service Manual

2.4 Control Unit
2-39
S6 Function
#1
SYSTEM FAIL ALARM ON/OFF
(ON: Output from J507)
#2
RELAY STATUS
(ON: Reversed polarity of the above signal)
PNL 基板 (03P9344)
トラックボール部
■
■■
■
CR11(U5 CPU RUN)
Blinks every second.
J524 (TB)
JP1
Open (Write Program)
Short (Default)
J521 (PROCESS0R)
- RCU-013 Connector
- RCU-016 connects with RCU-015
(Remote Panel.)
J527 (SYSTEM FAIL)
J522 (REMOTE)
- RCU-015 connects with RCU-016
(PROCESSOR.)
J525 (PROGRAM, Factory use)
S6 (DIP SW)

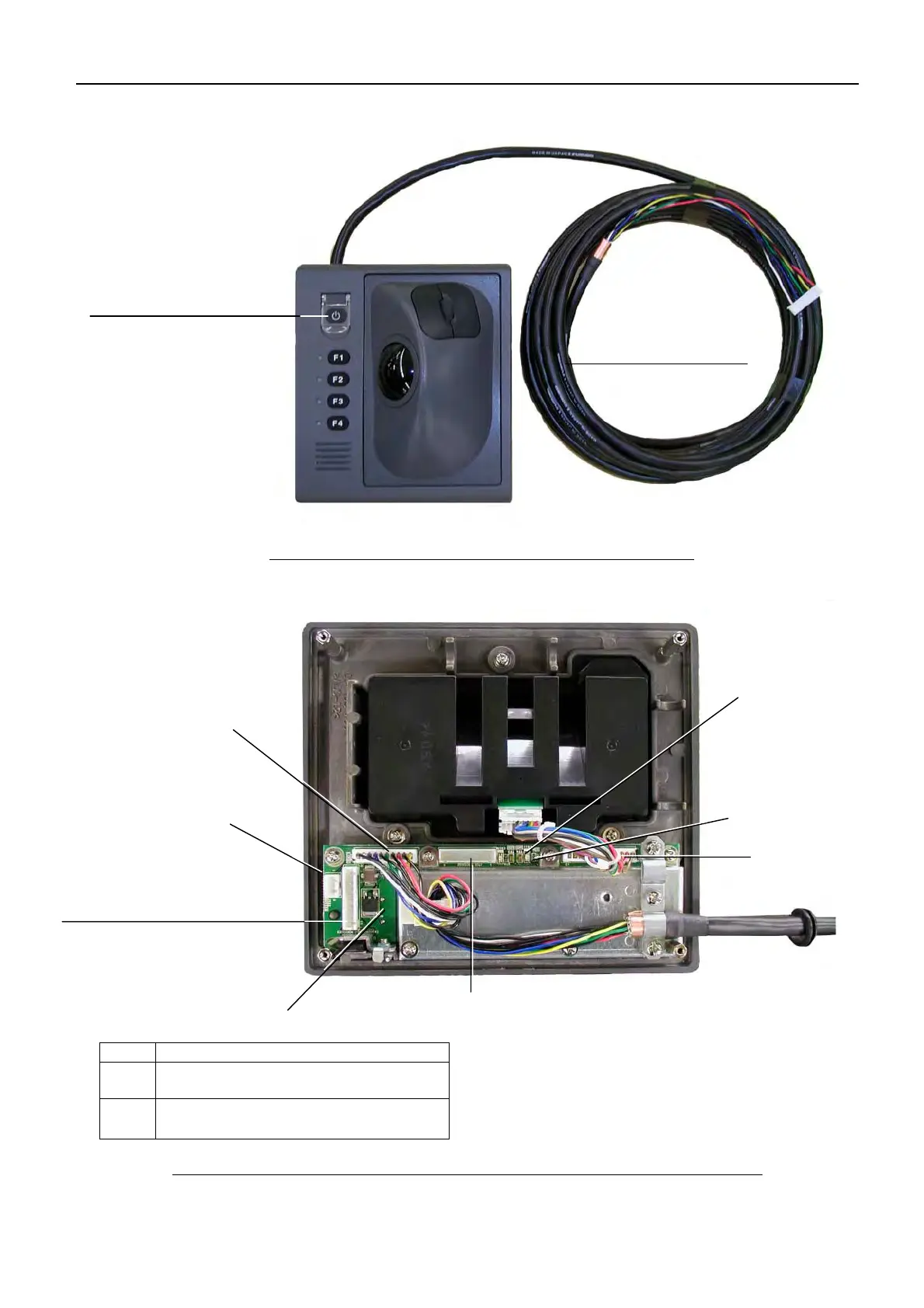

Fig. 2.4.5 Trackball/Remote Control Unit (RCU-015/016) with Cover Removed
Fig. 2.4.4 Trackball /Remote Control Unit, RCU-015/016
Power Switch
RCU-015: Provided
RCU-016: Not provided
XH10P-W-5P-A
L=1.5/10/20/30 m
