4.7 Setting of AD-100 or GC-10
4-42
4.7 Setting of AD-100 or GC-10
This is the setting for AD-100 or GC-10 (64P1106-99).
This board outputs both of the AD format and the NMEA data. Basically make the
setting so as to use data in the AD format.
- For input in AD format
Set the transmission cycle to 25 msec.
- For input in NMEA data
Set to Ver-2.0, 38,400 bps and transmission cycle to 25 msec.
For FURUNO technical information on the AD converter, refer to FQ4-2004-016.

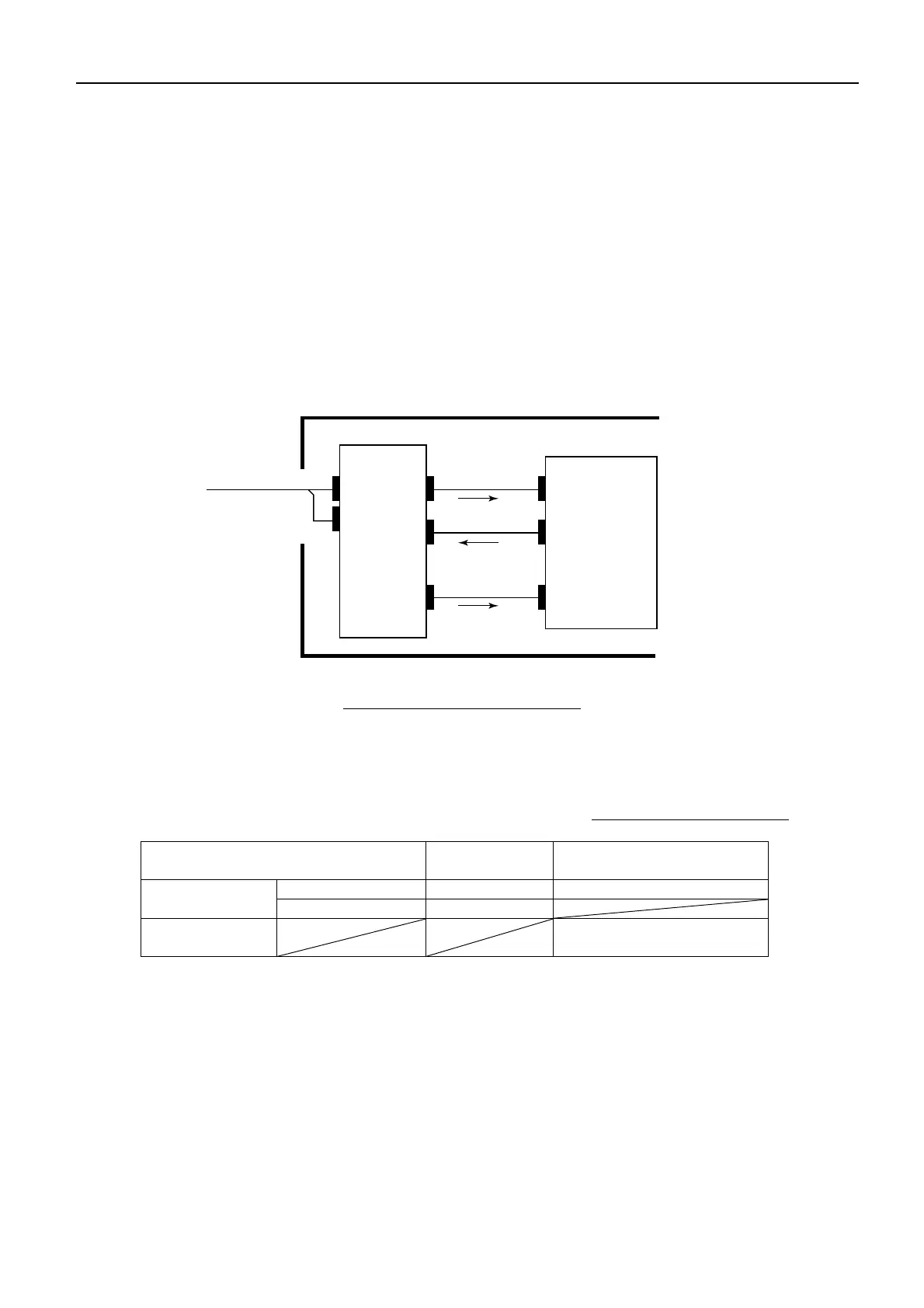

Fig. 4.7.1 Connection of GC-10
The related setting:
Table 4.7.1 Related Setting
Set item
For data input
in AD format
For input of NMEA data
1: HDG SOURCE AD-10 SERIAL
[HDG] icon menu
2: GC-10 SETTING Set HDG value
Jumper plug of
terminal board
[J656]: See page.4-40
(38.4 kbps)
J5(3p)
J7(5p)
J8(5p)
J9(5p)
J4(5p)
J603(GC-10)
J656(HEADING)
J608
(AD CONVERTER)
J1(14p)
J6(4p)
R1/R2
S1/S2/S3
Gyro compass
AD DATA/CLK
GC-10
Terminal p.c.b
GC Control
RPU-013
NMEA Ver-2.0
HDT/38.4kbps/25msec
or
