3.3 Main Menu Tree
3-27
9 CUSTOMIZE/
TEST
8 [TEST]
SELF TEST:
Displays the program versions, key test and the serial
input data.
ARPA TEST:
Allow checking ARPA functions with echoes created by
CPU. During the execution, “XX” is displayed in the
display. To terminate, set it to ST-BY. If ARPA test is
executed, the ARPA track is cancelled.

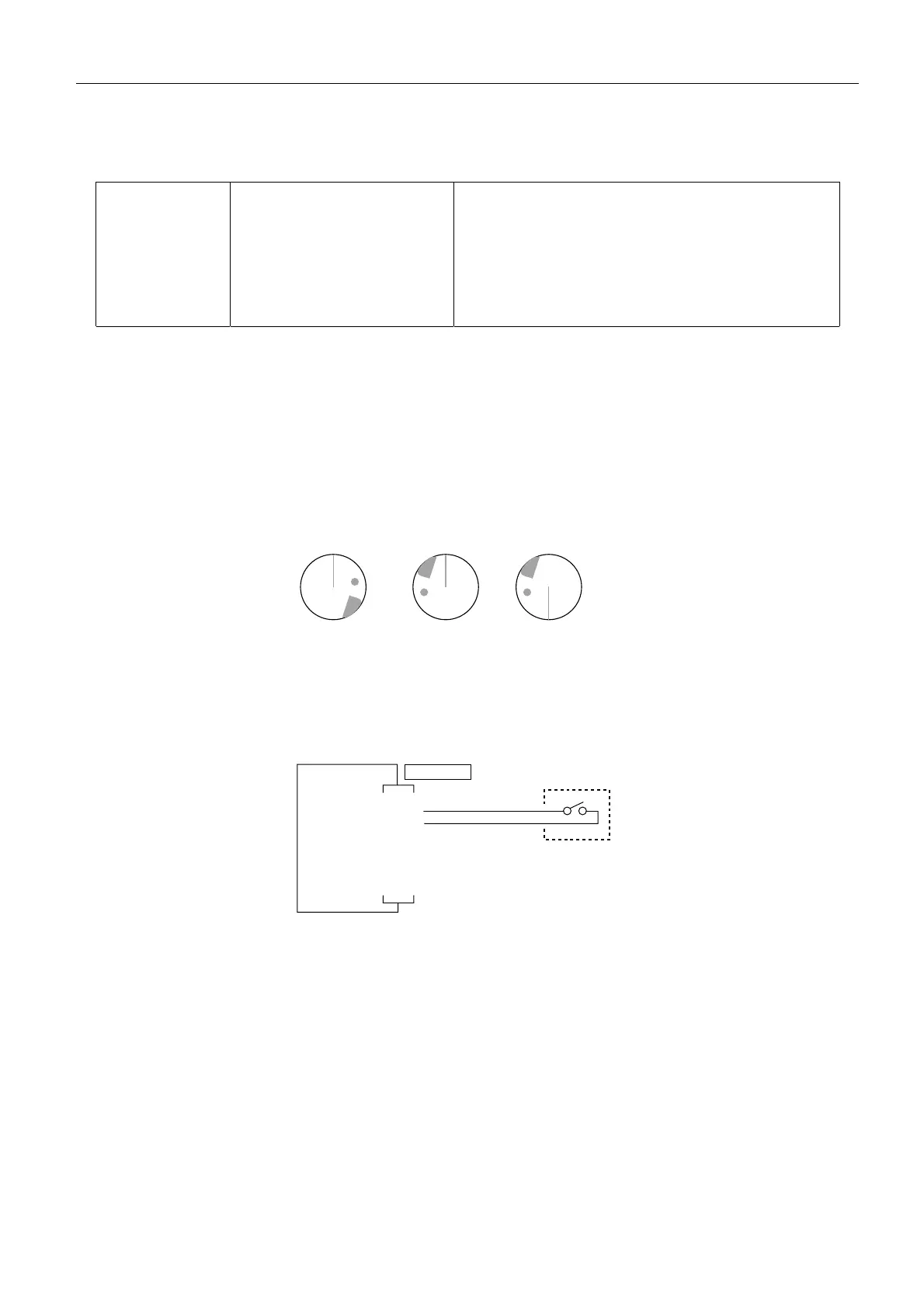

Shuttle Ferry
A shuttle Ferry mode is for the ship that can be steered from the two locations, forward and
reverse. The orientation of radar is presentation rotated at 180 degrees by switching
(contact closure signal) from external equipment via RS-232C port on the TB board of
RPU-013 as shown below.
When operations switched, “REVERSE” is displayed in red characters on the right of
“PRESENTATION MODE” box icon.
This set-up is performed by “OFF/MODE-1/MODE-2.”.
- OFF: turn off the “SHUTTLE FERRY” function.
- MODE-1: Gyro data is inverted at 180 degrees.
- MODE-2: Gyro data is unchanged from the forward mode.
J601:RS-232C
1. NC
2. RXD
3. TXD
4. NC
5. GND
6. NC
7. NC
8. NC
9. NC
Terminal p.c.b
RPU-013
Normal/Reverse SW
Gyro: 000 deg. Gyro: 000 deg.Gyro: 180 deg.
Normal Reverse Stern up
To Next Page
