4.4
Initialize Setting
Initialize Setting Initialize Setting
Initialize Setting
4-18
2. In case that the antenna motor power is the AC type (FAR-2137S/2837S)
The ANT ON signal controls the relay of the PSU-007.

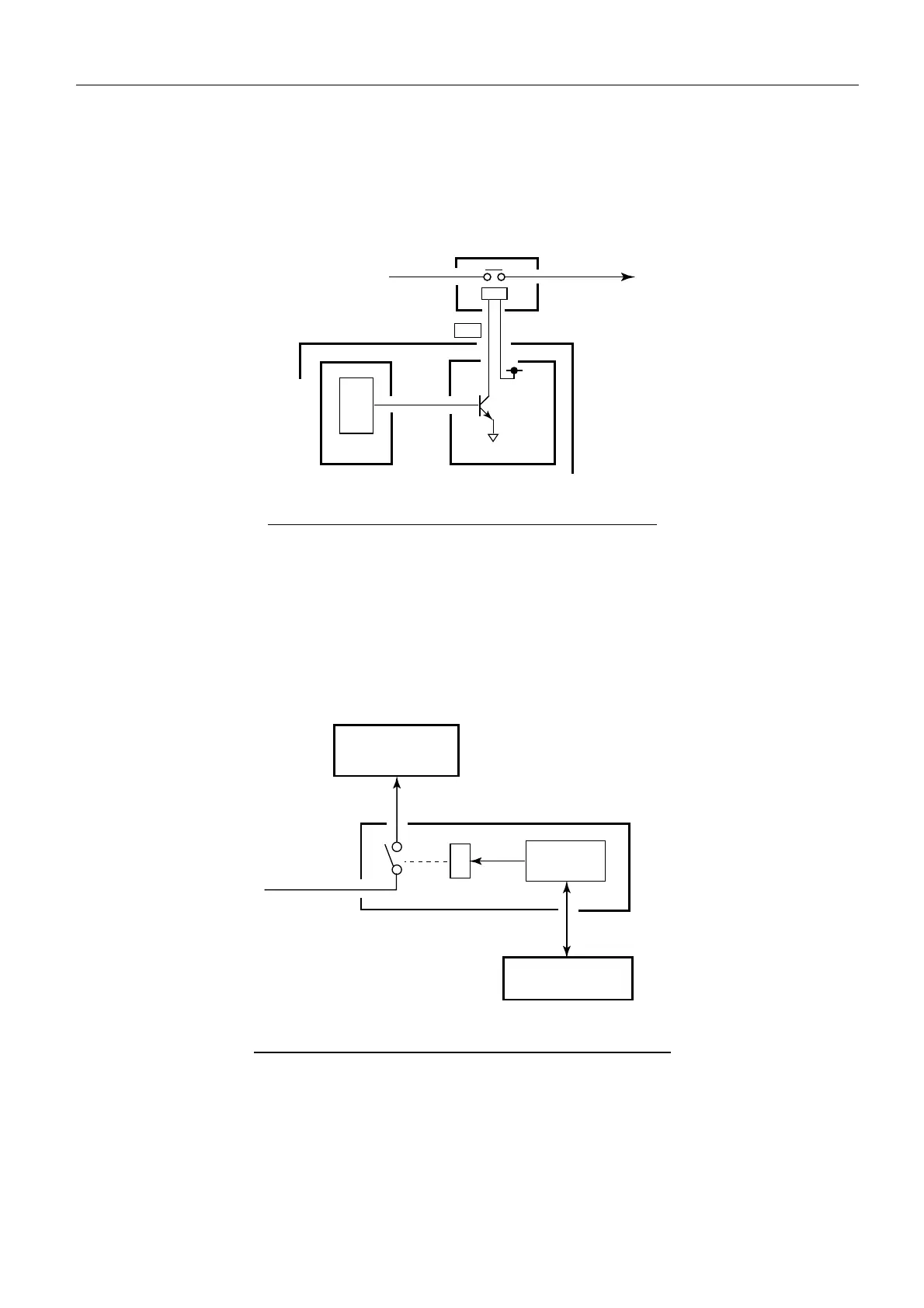

Fig. 4.4.3 Antenna Motor Power Control System - 1
3. In case that the antenna motor power is the AC type (FAR-2837SW)
Set “INITILAIZE -> 4 -> 6: MODEL” to “30 DOWN”.
In this setting, ANT ON signals are outputted from the RFC board of RTR-082, and
relay controls the antenna motor power in RTR-082.
Fig. 4.4.4 Antenna AC Motor Power Control System - 2
ANT ON
SPU-013
U21
MAIN CPU
Termional
Q5
2SC3265Y
J604
AC in
ANT Motor
AC power
PSU-007
RL
+12V
RPU-013
RFC p.c.b
RPU-013
RL
ANT MOTOR
ANT Power (AC)
ANT ON
RSB-014
RSB-015
RTR-082
To Next Page
