Furuno FAR-2117 Service Manual

4.4
Initialize Setting
Initialize Setting Initialize Setting
Initialize Setting
4-33

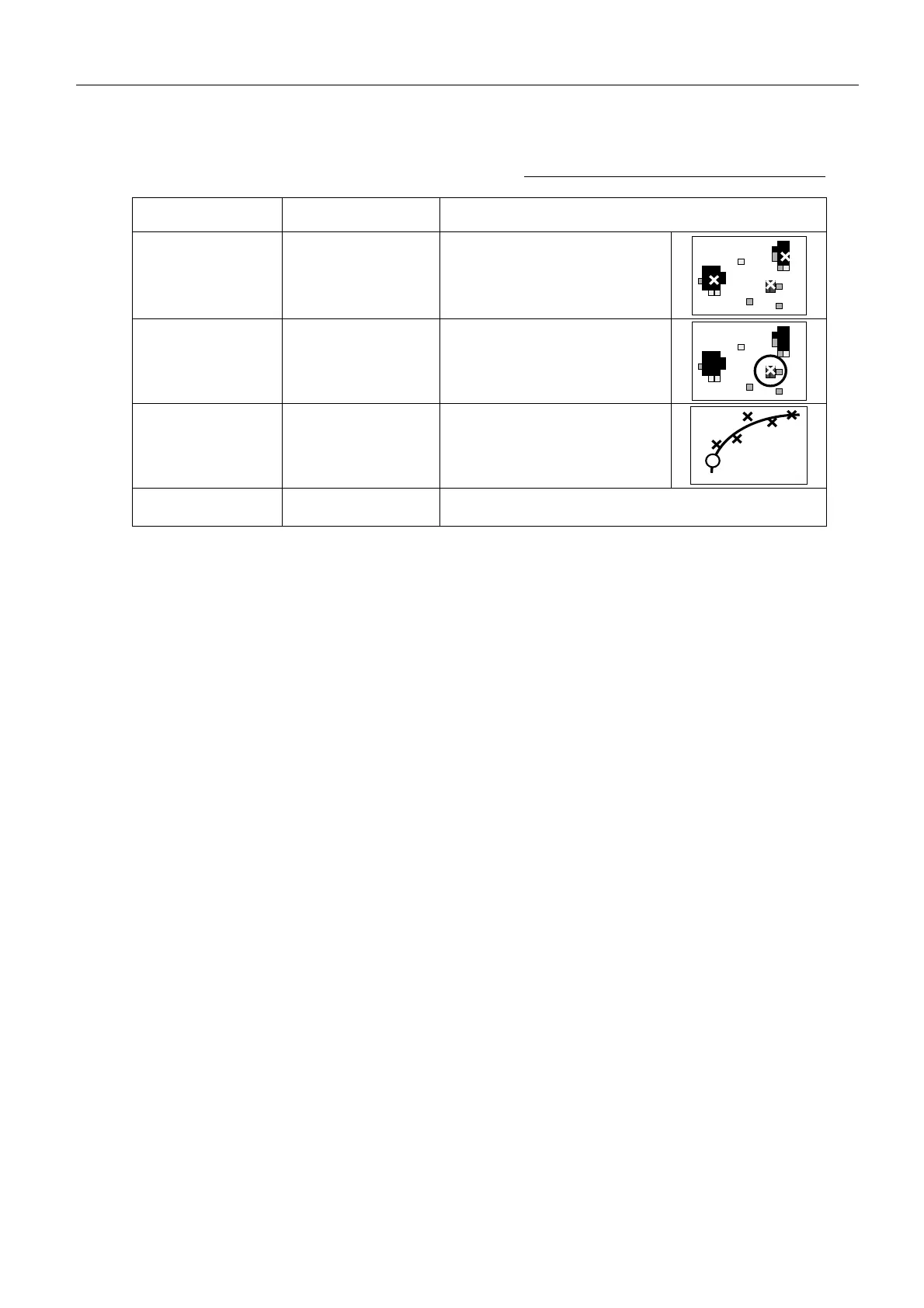

Table 4.4.8 Overview of ARPA Software
Part of processing Related setting Overview
Echo detection
(SPU FPGA: ARPA
Front end)
3 MAX RANGE
4 ECHO LEVEL
5 QV DISPLAY
Detects echoes and finds the
position.
Echo sorting
(SPU FPGA)
7 [ACQ PRESET]
Sort echoes appropriate for a
target.
Momentum estimate
(ARPA CPU)
8 [TRACK PRESET]
Finds the target position and
speed. (Averag in FILTER
RESPONSE)
Interface 2 TTM OUTPUT
Select REL or TRUE. Specify a port in the setting of
“OTHER -> 5 INS”.
