Furuno FAR-2117 Service Manual

(組)回転結合器 ROTARYJOINTASSEMBLY RSB‑096/097 (008‑487‑200)
(組)ｱﾝﾃﾅ取付台 RADIATORBRACKETWITHBODY RSB‑096/097 (008‑537‑160)
±ﾅﾍﾞｾﾑｽA WASHERHEADSCREW*A* M4X15
RSB‑096(組)駆動部 DRIVINGGEARASSY RSB‑096 (008‑535‑380) RSB‑097(組)駆動部 DRIVINGGEARASSY RSB‑097 (008‑535‑400)
ｶﾊﾞｰﾖｳﾊﾟｯｷﾝ PACKING 03‑001‑3263 (300‑132‑631)
ｶﾊﾞｰﾖｳﾊﾟｯｷﾝ PACKING 03‑001‑3263 (300‑132‑631)
(組)ｽｷｬﾅｶﾊﾞｰ SCANNERCOVERASSEMBLY RSB‑096/097 (008‑487‑180)
RSB‑096/097‑078RF部 RFMODULE RTR‑078 (008‑535‑440) RSB‑096/097‑079RF部 RFMODULE RTR‑079 (008‑535‑450)
ｹｰﾌﾞﾙ(ｸﾐﾋﾝ) CABLEASSEMBLY SMAPS/PL‑MSF358*L150 (000‑147‑436)
(組)SM‑XHｺﾈｸﾀ SM‑XHCONNECTOR 03‑2109(R6‑6P) (008‑534‑850)
Ａ
矢視図
Ａ
6ｶｸﾀｯﾋﾟﾝ HEX.TAPPINGSCREW 4X8SUSﾌﾗﾝｼﾞﾂｷ
‑6ｶｸｾﾑｽA HEX.WASHERHEADBOLT*A* M6X12SS41虹
SM‑XHｺﾈｸﾀ SM‑XHCONNECTOR 03‑2130(P2‑3P)
ｸﾗﾝﾌﾟ CABLECLAMP CKS‑10‑L (000‑106‑350)
標準(組)ｽｷｬﾅｶﾊﾞｰ 
SCANNERCOVERASSEMBLY
RSB‑096/097 (008‑487‑180)
(組)ｱﾝﾃﾅ部 ANTENNARADIATORASSEMBLY XN12AF (008‑485‑250) (組)ｱﾝﾃﾅ部 ANTENNARADIATORASSEMBLY XN20AF (008‑485‑260) (組)ｱﾝﾃﾅ部 ANTENNARADIATORASSEMBLY XN24AF (008‑485‑270)
APPR OVED
CHE CKE D
DR AWN
DWG. NO.
TITLE

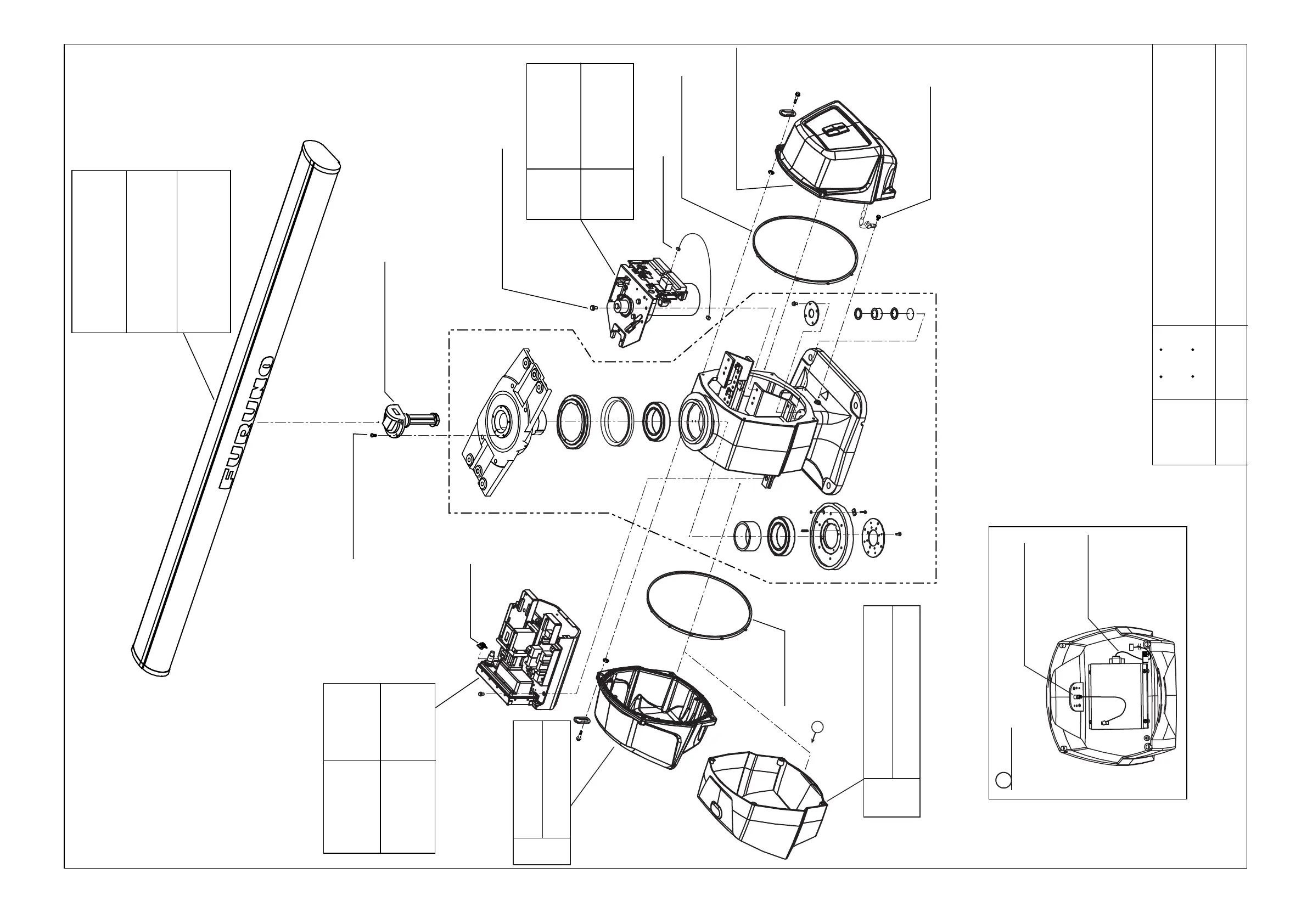

FAR 2117/2127/2817/2827/2117-BB/2127-BB RSB-096/097
PM付き(組)ｽｷｬﾅｶﾊﾞｰPM SCANNERCOVERWITHPM31/ANT PM‑31 (008‑536‑340)
2003.11.17
T.Harazuka
C3519-E02-A
D‑1
