Furuno FAR-2117 Service Manual

2/2
Factory-modified sets: From production in August 2007
RSB-098-080: R138-1843 and after
RSB-099-080: R139-0888 and after
RSB-101-080: R141-0104 and after

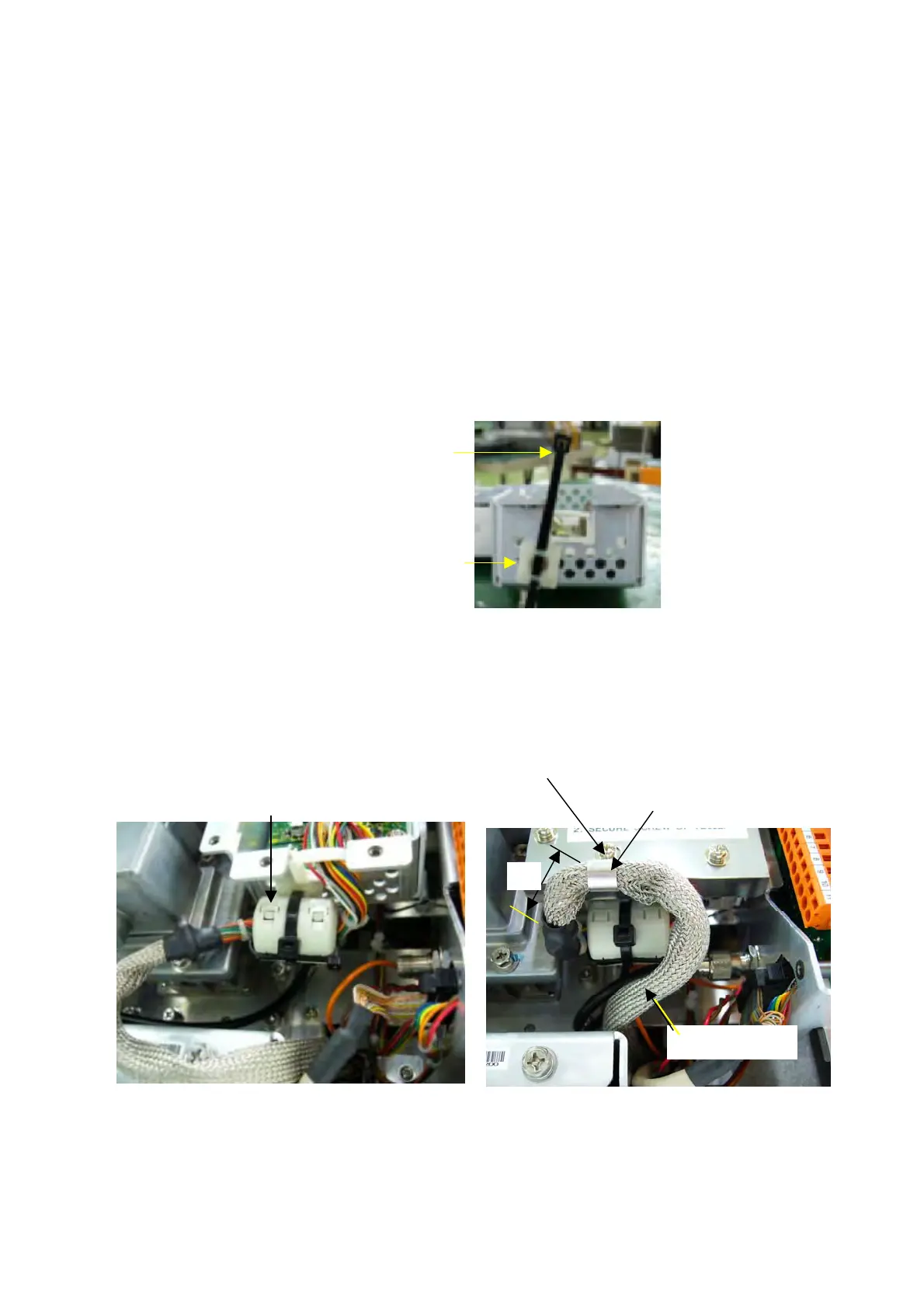

Fixing EMI Core onto New IF AMP Case
The EMI core is fixed onto new IF AMP case as illustrated below.
1. Enter a cable tie about half way through the cable tie holder.
Cable tie, CV-200HT
Cable tie holder, TMS-20
Fig.2 New IF AMP case (Bottom view)
2. Fix the EMI core with the cable tie. See Fig.3. (The EMI core is fixed temporarily before
mounting the IF AMP case.)
3. Ground the shielding tube with a grounding cable clamp, E0809A and M4x10 Sems screw
fixing the IF AMP case cover. See Fig.4.
M4x10 Sems
EMI core Grounding cable clamp, E0809A
Shielding tube
Fig.3 Fixing EMI Core Fig.4 Grounding Shielding Tube
A
=15 to 25 mm
A
