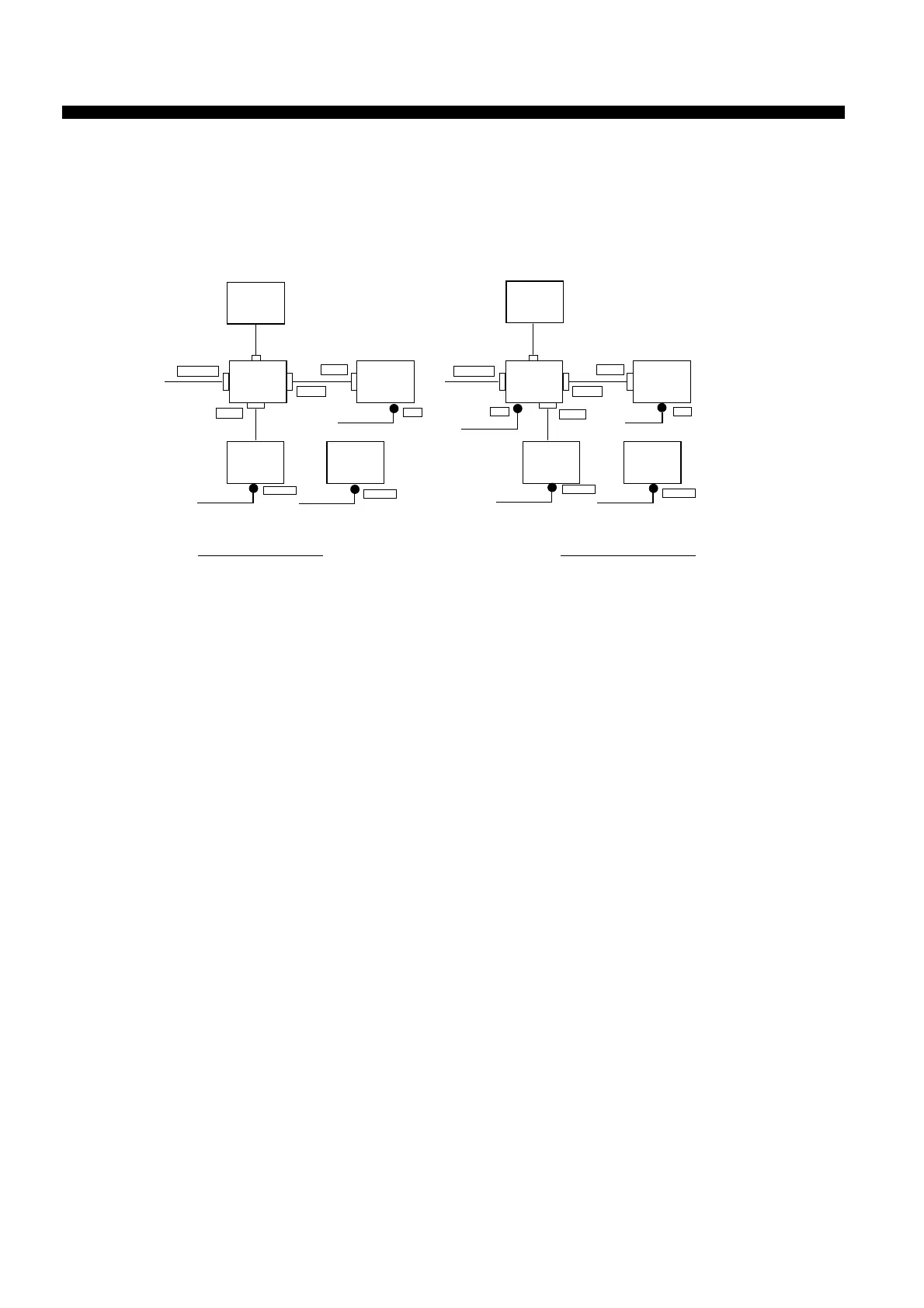

1. Connection
DSC-8V System DSC-8VP System
The difference between the DSC-8V and DSC-8VP is asbelow.
DSC-8V No power supply circuit. Power is supplied from VHF radiotelephone
FM-8000.
(When the FM-8000 is turned on, the power (15VDC) is supplied to
the DSC-8V.)
DSC-8VP Built-in Power board. The DSC-8VP operates from 10.8 to 40.0VDC.
Section B3. DSC-8V/8VP
B3-1
DSC-8V
FM-8000
VHF RT
REM-1
CIF/NMEA
A
B
Printer
PP-500PP -510 PP-500PP -510
DSC-8VP
FM-7000
VHF RT
REM-1
CIF/NMEA
A
B
Printer
DC
DC
21.6 - 31.2V
POWER
POWER
24 VDC
100/220 VAC
POWER
POWER
24 VDC
100/220 VAC
DC
10.8 - 40.0V
13.5V
DMC-5
DMC-5
or
or
