FM-8500

E4-8

Jumper Setting

Change the jumper plug setting (JP2) on the CONTROL board according to the type of

the wing microphone : Carbon MIC or Dynamic MIC.

Handset

- HS-6000FZ6 (Carbon MIC)

- HS-6000FZ5 (Dynamic MIC)

MIC Receptacle Box

-RBD-VHF (For Carbon MIC)

-RBD-VHF-B (For Dynamic MIC)

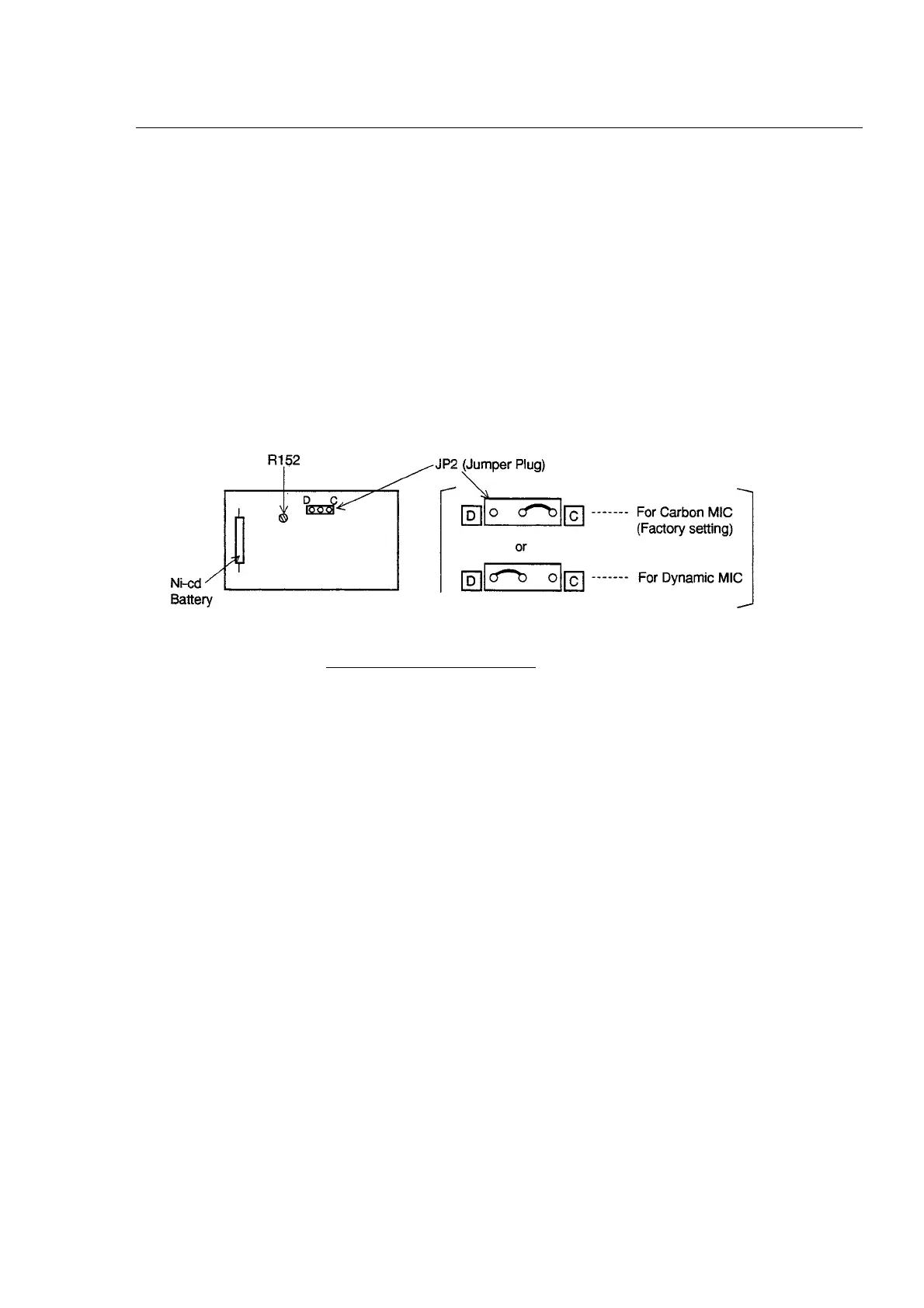

Top view of CONTROL PCB

For dynamic MIC, set R152 on the CONTROL board at fully counterclockwise (max).

No adjustment is required for carbon MIC.
