Furuno FS-5000 User Manual

1. Connection
2. System settings
Each port must be set up through the menu. Selecting equipment as follows.
1. Press [SETUP] key.
2. Press [1]:NAVTEX, [2]:2182WR, [4]:VHF DSC, [5]:MF/HF DSC or [6]:SES/EGC key
within 2-3 seconds.
3. Select each of content on setup menu by [SELCT] key.
4. Press [ENT] key.
Other setup
*Alarm tone selection : [SETUP], [7]
*Enter Date & time : [SELECT], “TIME”

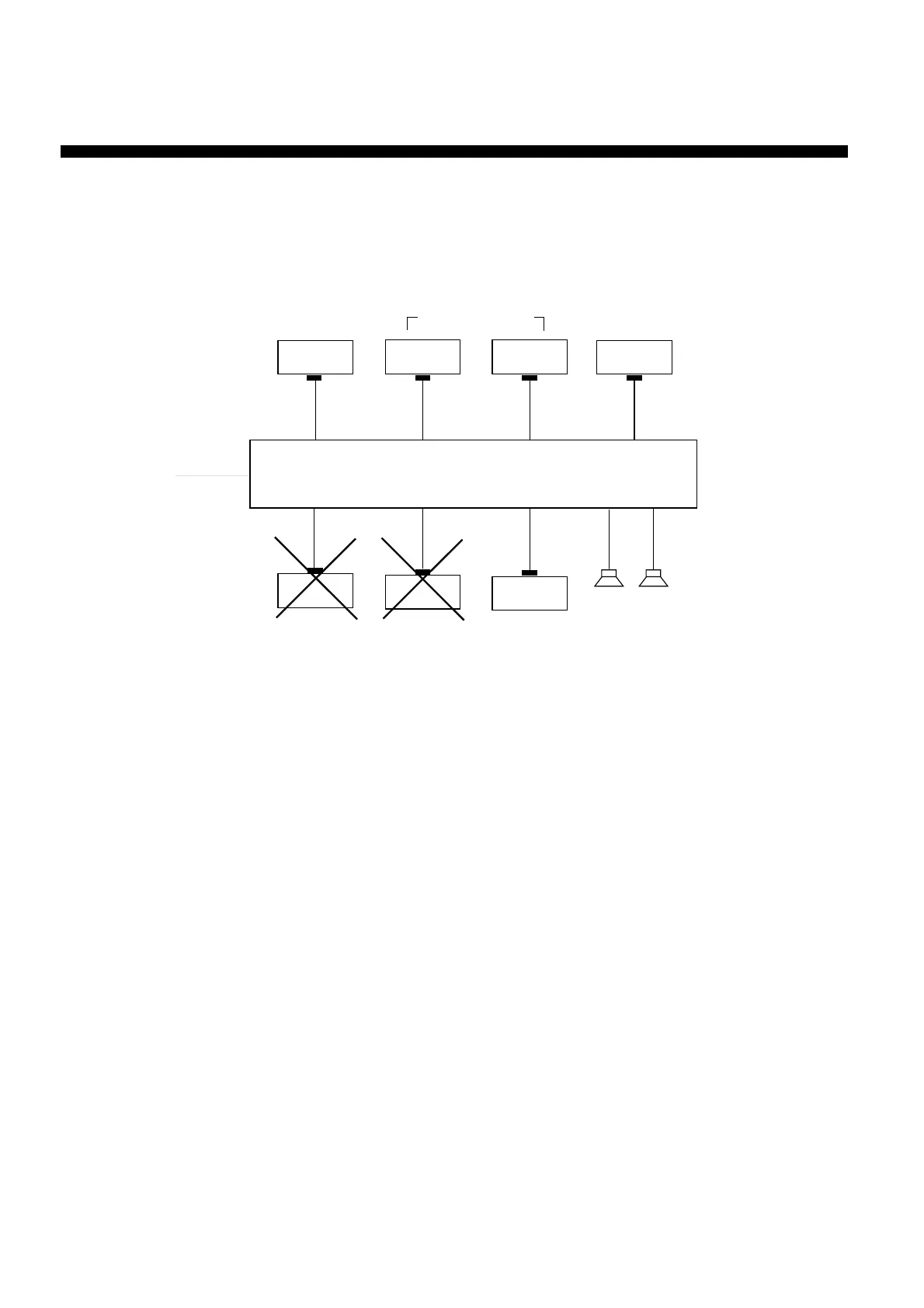

Section F1. DMC-5
F1-1
TB-1 TB-2
TB-7 TB-8 TB-9
TB-10
TB-3TB-4
TB-5TB-6
MF/HF DSC
System
NAVTEX
EGC RECV
2182 kHz WR
NO.1 VHF
+DSC System
NO.2 VHF
+DSC System
INMARSAT-C
(Class 2)
10-40V DC
Tx/RX data Tx/RX data Tx/RX data
AF AF
ALARM ALARM ALARM
DMC
(RS-410N)
(RS-410N) (RS-410N)
(C.Loop) (C.Loop) (C.Loop)
DMC-5
EGC-5 AA-45B/46B NX-500
AL-5/5F AL-5/5F
MF/HF RT (FS-5000/1562/etc)
WR (AA-50)
DSC (DSC-5/6/60)
FM-8500
FM-8700
FM-7500
FM-7000+DSC-5/5V
FM-8000+DSC-8VP FELCOM-10/11/12
