Furuno FS-5000 User Manual

DP-5
D1-1

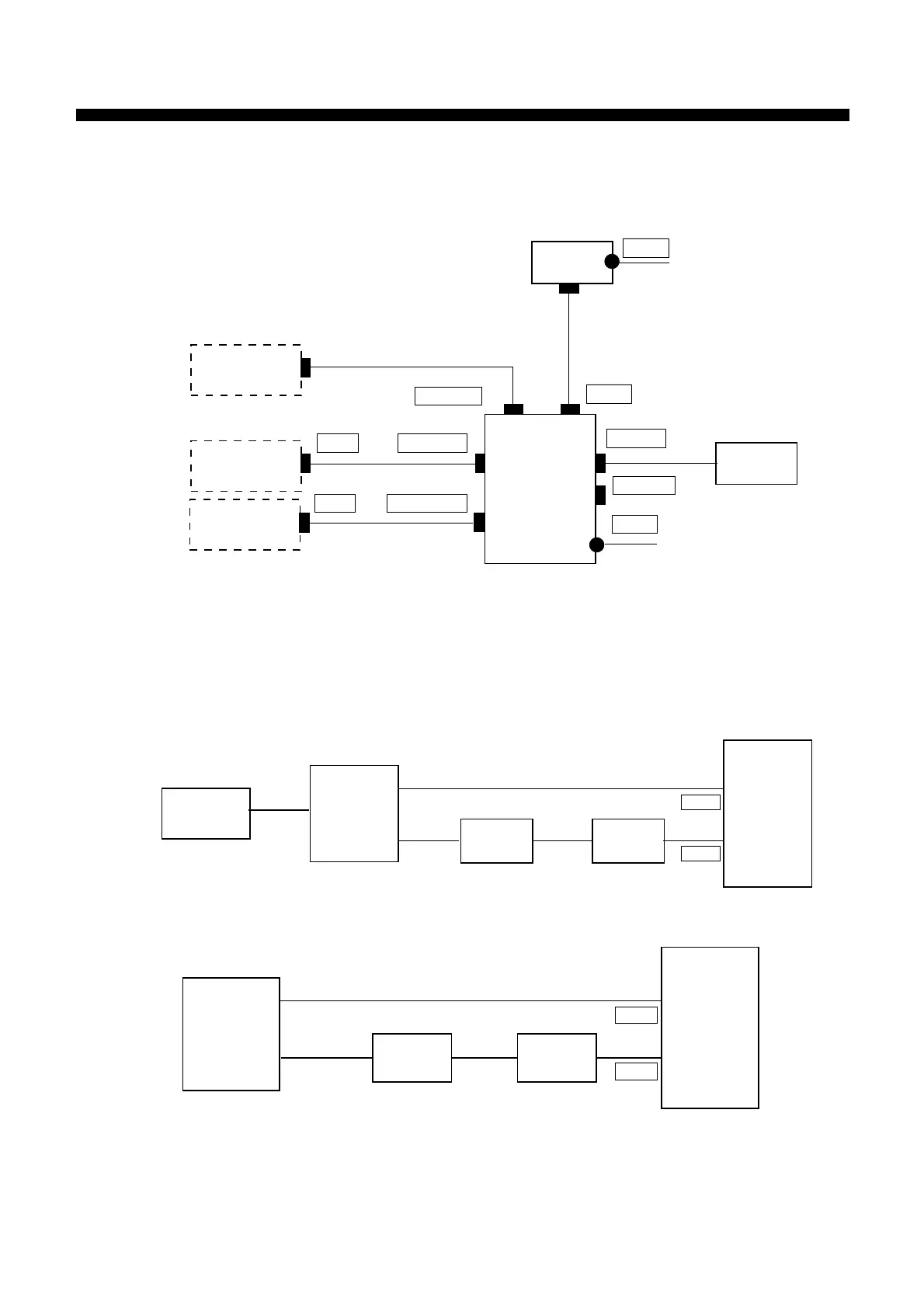

1. Connection
Distributor
(05P0606)
FS-1562
AA-50 DSC-5/6
DP-5
REM
MF/HF TR DSC
MF/HF Rx NBDP
REM-A
REM-B
FS-5000
AA-50 DSC-5/6
DP-5
REM 1 or 2 or 3
REM 2 or 3 or 1
MF/HF TR DSC
MF/HF Rx NBDP
REM-A
REM-B
Printer
DP-5
MF/HF DSC
MF/HF RT
Key board
Printer
Key board
CONTROL
REM-A(RT)
REM-B(DSC)NBDP
24VDC
NMEA/CIF
Power
GLL, RMA, RMC, VTG
DBT, MTW, VHW, TRF
REM
NAV Device
*
*
* When the radiotelephone (DSC) is connected to REM-A port,
set to RT (DSC) on F6: terminal menu.
* When the DSC (radiotelephone) is connected to REM-B port,
set to DSC (RT) on F6: terminal menu.
