FS-1562

A1-7

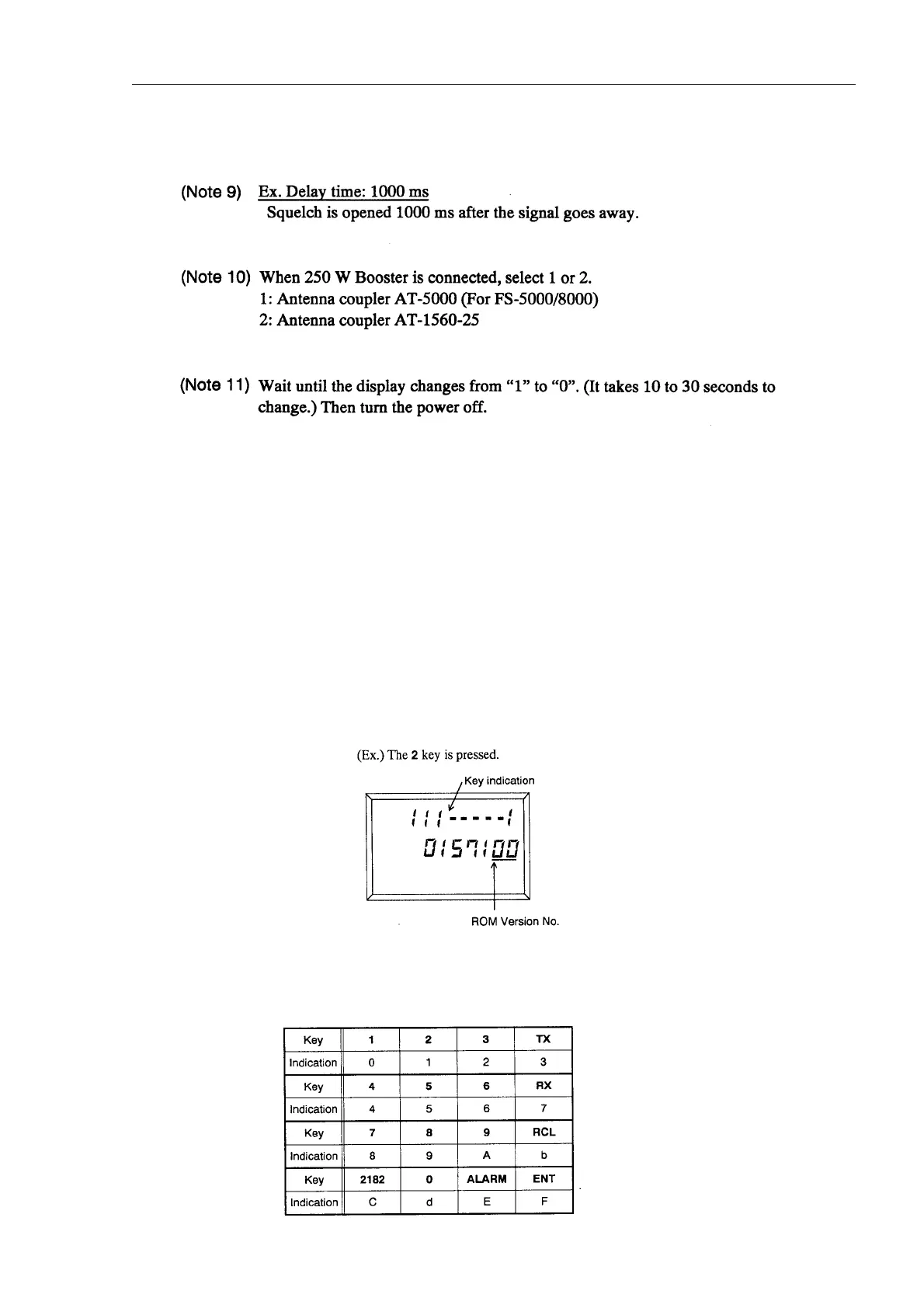

2.5 LCD/Keyboard test & ROM Version No. Confirmation

1. While pressing and holding down the [ENT] key, turn on the power. All LCD segment

appear.

2. Release the hand from the [ENT] key.

3. Press keys one by one. When the key is pressed, the corresponding number or letter

appears at the upper right of LCD. See table below.

All LCD segments reappear several seconds after the 2 key is pressed.

Table of Contents9
Section A1. FS-1562-15/2523
Connection23
System Settings24
Procedure24
System Channel List (Ver-09)25
System Channel List (Ver-03)27
System Settings Descriptions28
Lcd/Keyboard Test & ROM Version No. Confirmation29
Channel Programming30
Power Data Setting33
Self Test34
Transceiver Unit34
Antenna Coupler Unit35
Section A2. FS-75/255036
Connection36
System Settings37
Procedure37
System Channel List (Ver-09)38
System Settings Descriptions40
Lcd/Keyboard Test & ROM Version No. Confirmation41
Channel Programming42
Power Data Setting45
Self Test46
Transceiver Unit46
Antenna Coupler Unit47
Section A3. FS-5000/800048
Connection48
System Settings49
System Channel List49
Confirmation of Settings53
System Channel Description54
Default Setting for each Country59
Jumper Settings60
For NAV Data Format Selecting, CIF or NMEA60
When Using C.loop between FS-5000/8000 and DB-50060
User (Preset) Channel Programming62
Power Adjustment63
Self Test68
Transceiver Unit68
Antenna Coupler Unit69
Section B1. DSC-570
Connection70
Changing System Settings and MMSI Number72
Changing System Settings72
Settings List74
Jumper Wire Settings77
Self Test78
Clearing Contents of S-RAM and EEROM79
DSC Frequency Table81
Menu Tree82
Power and Frequency Measurement of MF/HF Radiotelephone86
Power and Frequency Measurement of VHF Radiotelephone87
Section B2. DSC-6/6A88
Connector on Rear Panel88
Typical Configurations (Type-1)88
System Settings90
Initial Settings90
Changing System Settings91
System Settings List92
Jumper Setting94
Changing ID (MMSI) Number95
Clearing Contents of S-RAM and EEROM96
Self Test98
DSC Frequency Table99
Menu List100
Section B3. DSC-8V/8VP103
Connection103
Changing System Settings104
System Settings List105
Jumper Wire Setting106
Clearing Contents of S-RAM and EEROM107
Self Test109
Menu List: [SELECT]110
Section B4. DSC-60113
Connection113
System Setup List114
Setup Menu: [#/SETUP]114
System Menu Description116
Setting DIP Switches118
Outline of the Settings on CONTROL/MODEM Board118
Setting for the Connection with FS-75/1562/5000 and DP-6119
Setting for the Connection with Navigational Aids120
Setting for the Connection with DMC, IC-302 and PC121
Setting the Receiver Board122
How to Enter MMSI123
Self Test124
Setup Menu List125
How to Update System Program131
Over View131
Updating MAIN Program with IB-581132
Updating MODEM Program with IB-581133
Section C1134
Over View134
Connection135
Jumper Setting135
Self Test136
Nbdp137
Section D1137
Connection137
Setting List138
Initial Settings141
Answerback Code and ID Code Entry141
Terminal Settings (F6)142
System Settings (F8)145
Manual Reception (F3-6)148
NAV Data Format Selection (CIF/NMEA)148
Changing Answerback Code and ID Code149
Changing F6 and F8 Settings150
Clearing Contents of S-RAM and EEROM151
S-RAM Clear151
EEROM Clear152
Section D2153
Connection153
Settings List154
Initial Settings155
Answerback Code and ID Code Entry155
System Settings (F6)156
Manual Reception (F3-6)158
Printer and Language Setting158
Changing AAB, ID Code and System Settings159
Changing Answerback Code and ID Code159
Changing F6: System Settings160
Self Test161
How to Update Programs162
Terminal Program162
Main: Main Unit Program164
Section E1. FM-7000165
Connection165
System Settings166
Adjustment176
Tx Power Adjustment176
Frequency Adjustment176
Self Test177
Private Channel List181
Section E2. FM-7500184
Connection184
Settings184
Connection185
System Settings185
Changing System Setting185
Channel Preset (CH0 to CH255 Available)189
Adjustment192
Tx Power Adjustment192
Frequency Adjustment192
Self Test193
Private Channel List197
Section E4. FM-8500200
Connection200
System Settings201
Initial Settings201
Changing System Settings (Protection ON/OFF)204
System Settings List205
Jumper Setting207
Changing ID (MMSI) and Private Mode208
Adjustment210
TX Power Adjustment210
TX Frequency Adjustment211
Clearing Contents of S-RAM and EEROM212
Self Test216
Private Channel List217
Section E5. FM-8700221
Connection221
System Settings222
Initial Settings222
Changing System Settings (Protection ON/OFF)225
System Settings List226
Jumper Settings228
Changing ID (MMSI) and Private Mode229
Adjustment231
TX Power Adjustment231
TX Frequency Adjustment233
Clearing Contents of S-RAM and EEROM234
Self Test236
Private Channel List239
Section F1. DMC-5243
Connection243
System Settings243
Clearing Contents of S-RAM and EEROM245
Self Test247
Inmarsat C248
Section G1. FELCOM 10248
Connection248
System Settings248
System Setup: [F5]248
Terminal Setup: [F6]249
Updating a Distress Alert: [F10]249
Jumper Wire Setting250
EGC MSG. Alarm Output ON/OFF Setting250
For Data Format (NMEA/CIF)251
System Status Monitor252
S-RAM Clear254
Menu Tree255
FURUNO Information (FQ5-93-025:New Version CPU Board)256
Section G2. FELCOM 11257
Connection257
System Settings257
System Setup: [F5]257
Terminal: [F6]258
Updating a Distress Alert: [F10]258
Dip Switch Setting259
System Status Monitor260
FURUNO Information262
Mes ID264
S-RAM Clear (IC-511)264
Menu Tree265
How to up Date the Terminal (IB-581) Program266
Section G3. FELCOM 12267
Connection267
System Settings267
System: [F8]267
Updating a Distress Alert: [F8]268
Dip Switch Setting269
System Status Monitor270
Mes ID272
Menu Tree273
How to Update the Terminal and CPU-2 Program274
Terminal274
Section H1. FELCOM 80277
Connection277
System Settings List279
Setting Procedure281
DIP Switch Setting (Antenna Unit: IB-180)281
Tx if Output Level Setting (Communication Unit: IB-280)282
Gyro Converter Setting (Communication Unit: IB-280)283
Setting of Telephone292
Printer: PP-510 Setting (Ver 1650098100)292
FAX Settings: PFX-50293
Terminal Settings298
Self Test301
How to Update Terminal Program305
Section H2. FELCOM 81307
Connection307
System Settings List308
Setting Procedure310
Adjustment of Limit Switch (Antenna Unit: IB-181)310
Tx RF Output Level Setting (Communication Unit: IB-281)310
Setting of Telephone311
FAX Settings: PFX-50312
Terminal Settings317
Self Test322
Ib-581322
Description of Status Monitor Display323
How to Update the Terminal Program326
Reference) How to Use HSD Checker327
Section H3. FELCOM 82330
Connection330
System Settings331
Heading Alignment331
Telephone Setting332
Fax Setting (PFX-50)333
Gyro Setting335
Setup NAV Data Input Circuit339
Entering Answer Back Code (Only for Class-1)340
OID/DID Setting341
HSD Set up348
About Password349
Returning Settings to Factory Defaults351
Self-Test352
Using Handset352
Using Terminal Unit353
Reading Program Number354
Distress Alert Test (FUNC683)355
Status Monitor357
Using Two-Digit Code Service (Loopback Test)365
Data Test366
HSD Test367
LED Status369
How to Check Angular Rate Sensor374
How to Check Rotary Joint374
Error Messages at the Terminal Unit375
Program Update380
Connection381
Upgrading SYSTEM, DEMOD, SYNC, DECODE, and TERM Programs382
Upgrading Handset Program384
Upgrading Terminal Program386
Menu Tree387
Menu on Handset387
Menu on Terminal Unit (Class1)390
Remote Station392
Over View392
Remote Port Specifications394
Priority Settings399
Jumper Settings400
Confirmation of Jumper Settings401
Speaker and Handset Volume401
Jumper Settings402
Confirmation of Jumper Settings403
Speaker and Handset Volume403
Connection404
Db-500406
Connection406
Fs-5000/8000407
RB-500/700 Connection409
FS-1562 and DSC/DP Connection411
Interconnection Diagrams412
Jumper Settings on MAIN Board415
Section J1416
Connection416
Slide Switch Settings417
System Settings418
FURUNO Information (FQ5-93-006)419
Self Test421
Terminal Unit426
Section K1426
How to Quit Programs426
Changing the Terminal Software427
Overview427
A Method to Change the Terminal Program by Formatting A-Drive427
Installing PC-DOS429
Overview429
Outline of the Procedure429
Until PC-DOS Starts430
Backup the System Files (PC-DOS: Ver.6.3)432
Changing BIOS (Basic Input Output System) Settings433
Changing DIP SW and Internal Connector435
Installing System Files436
How to Erase Password438
AR-B1378-F2 (New Type CPU Card)439
How to Install PC-DOS440
Changing BIOS Settings441
Section K2443
DOS Installation443
How to Copy DOS Program443
Dos Installation444
Erasing Password446
BIOS Default447
Layout and Hardware Settings450
Appendix451
AP1. Cable Specifications451
Cable Specifications451
How to Calculate Voltage Drop in Power Cable456
Coaxial Cable Specifications459
How to Attach the Antenna Cable Connector461
Installation of Pre-Amp Unit and Coaxial Cable463
AP2. Power Consumption464
Power Consumption List464
Sample of Battery Calculation Table467
Specifications of Rectifier and Battery Charger468
Ap3. Nmea470
List of NMEA Sentences470
Sentences Formatters472
AP4. Program ROM477
Communication Equipment ROM List477
FURUNO Information487
