Gambro AK 98 - Replacing Valve Membranes; Valve Membranes; Valve Mounting Tool K15391 C

208 AK 98™ Dialysis Machine - Maintenance manual
HCEN12630 Revision 07.2015
Program version 1.xx

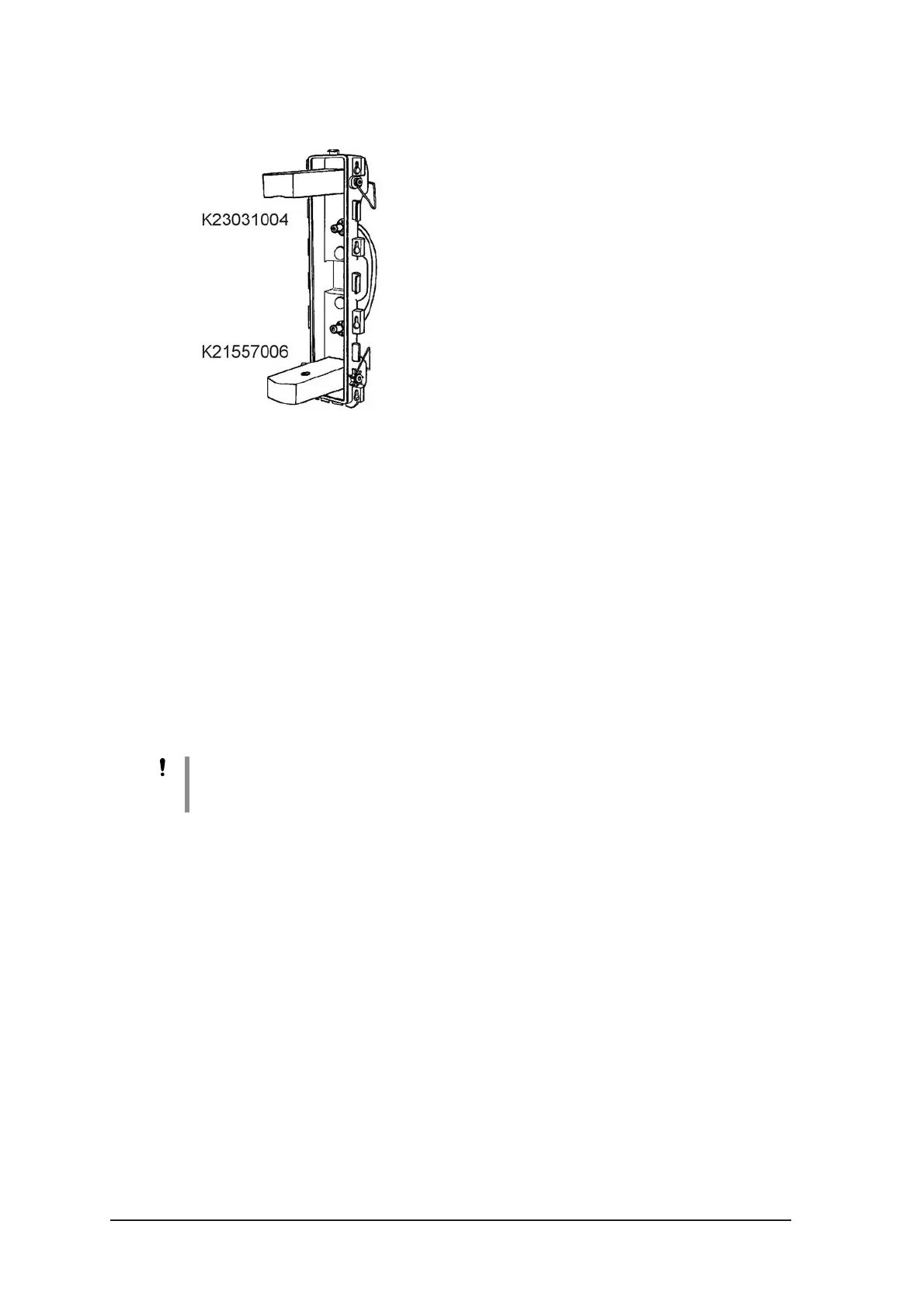

4) (Only for the AK 98 dialysis machine
equipped with BiCart cartridge holder)
Change both the upper and the lower spike
kit in the BiCart cartridge holder. Assemble
according to machine configuration.
● K23031004 (Upper)
● K21557006 (Lower)
8.6.3 Valve membranes
8.6.3.1 Replacing valve membranes
Correct assembly procedure of the housing and membrane is essential for proper
function and preventing future leaks.
Procedure
1) Place the membrane in the valve housing with the seam on the periphery of the
silicone membrane facing from the magnet of the valve, see picture below in
Section 8.6.3.2 “Valve mounting tool K15391C” on page208.
2) Tighten the screws with a torque of approximately 0.7 Nm. Make sure that self
locking nuts are used.
Results
NOTE!
Do not over tighten the screws, this will deform the valve housing and cause
leakage.
8.6.3.2 Valve mounting tool K15391C
A special service tool for mounting of the valve membrane correctly in the valve
housing is available.
