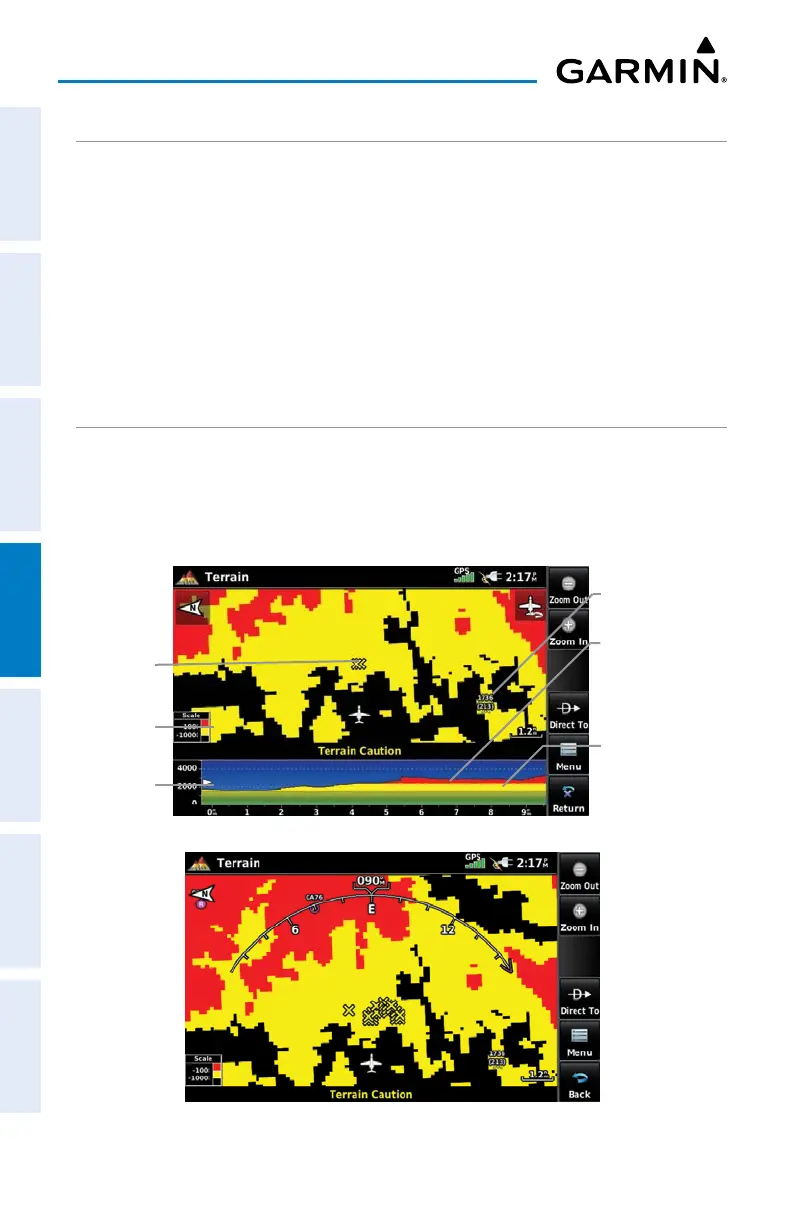

Page #150 background image
Garmin aera 760 Pilot’s Guide
190-02674-00 Rev. B
134
Hazard Avoidance
OverviewNavigationFlight PlanningHazard AvoidanceAdditional FeaturesAppendicesIndex
TERRAIN AND OBSTACLE COLOR CODE
Red—terrain or obstacle is above or within 100 feet below the aircraft.
Yellow—terrain or obstacle is between the user-defined Caution Elevation and 100
feet below the aircraft.
Enabling/Disabling Terrain Shading on the Navigation Map:
1)
From the Main Menu, touch Map.
2)
Touch Menu.
3)
Touch Terrain.
TERRAIN VIEWS
Enabling/disabling profile view:
1)
From the Main Menu, touch Terrain.
2)
Touch Menu.
3)
Touch Profile View.
Terrain Profile
View
Terrain
Legend
Terrain 'Map with Profile' View
Obstacle
Red Terrain is
above or within
100 ft below the
aircraft.
Yellow Terrain is
Between the User-
defined Caution
Elevation and
100 ft Below the
Aircraft
Potential
Impact
Point
Terrain 'Map Only' View
