Garmin aera 760 Pilot’s Guide
190-02674-00 Rev. B
50
Navigation
OverviewNavigationFlight PlanningHazard AvoidanceAdditional FeaturesAppendicesIndex
Configuring a VNAV profile:
NOTE:
Some waypoints such as intersections do not have an altitude in the
database and thus only the VNAV altitude in MSL (not Above Waypoint) may
be specified for these waypoints.
1)
From the Main Menu, touch Tools > VNAV.
2)
From the 3D Vision page, select Menu > VNAV.
3)
Touch the desired fields ('Waypoint', 'Profile', 'Altitude', etc.) to enter
the VNAV profile.
4)
Touch and hold the Back Icon to return to the Main Menu.

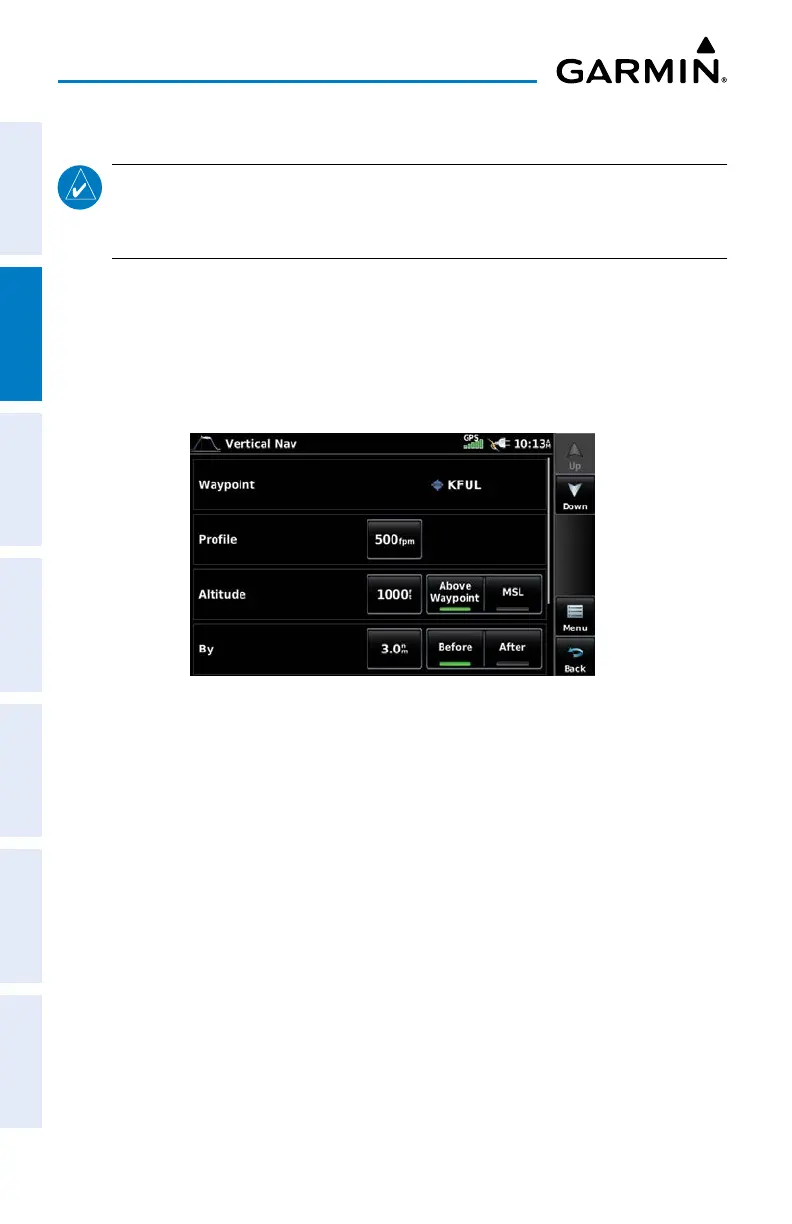

Vertical Navigation Configuration
•
Waypoint—Enter any waypoint along the currently active route as the
reference waypoint. The reference waypoint defines the target location.
•
Profile—Enter the descent rate.
•
Altitude—Enter the desired reference waypoint altitude. Select ‘Above
Waypoint’ to use field elevation for airports in the navigation database or
‘MSL’ to specify an exact MSL altitude target.
•
By—Enter the target location with settings of distance ‘Before’ or ‘After’ a
reference waypoint. To set a target location at a reference waypoint, enter a
distance of zero.
•
VNAV Messages—Touch ‘On’ or ‘Off’ to enable/disable VNAV alert messages.
