GFC 600 AFCS Part 23 AML STC Maintenance Manual Page 28
190-01938-00 Revision 13
5.5 GI 285 Troubleshooting
Symptom
Recommended Action
No annunciations visible
• Recycle AUTOPILOT circuit breaker to cause PFT to start. All
annunciations will flash briefly during PFT.
• Verify power/ground wiring to GI 285
• Verify wiring between GI 285 and GMC 605.
5.6 GTA 82 Troubleshooting
Symptom
Recommended Action
PFT will not pass
• Verify wiring between GMC 605 and GTA 82.
• Verify power/ground wiring to GTA 82.
5.7 GSA 80/81 Troubleshooting
Symptom
Recommended Action
PFT will not pass
• Verify wiring between GMC 605 and GSA 80/81.
• Verify power/ground wiring to GSA 80/81.
Servo will not engage (no control
resistance felt)
• Verify wiring of AP DISC/TRIM INT wiring from circuit breaker through AP
DISC/TRIM INT switch to the servo
• Verify cable tensions.
5.8 Backshell/Backplate Connectors
The following figures depict the unit connectors, with views as described.

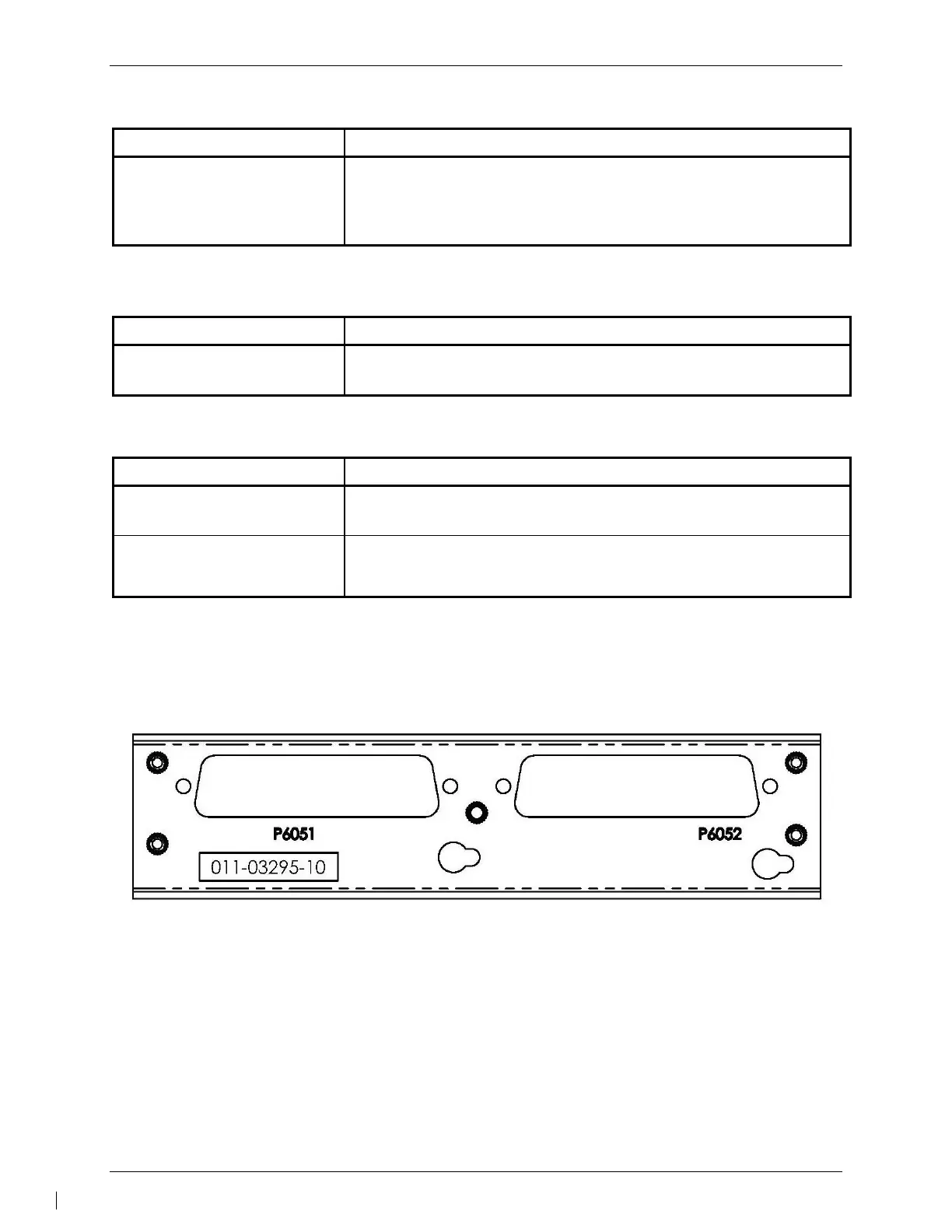

Figure 5-1 – GMC 605 Backplate, viewed from rear of rack
