GFC 600 AFCS Part 23 AML STC Maintenance Manual Page 38
190-01938-00 Revision 13
Installation:
1. Using a lint-free cloth, remove excess grease build-up from the servo output gear (see
Figure 6-7.)
IMPORTANT!
It is not necessary to remove all of the grease from the output gear, only the
excess grease. DO NOT USE SOLVENTS TO CLEAN THE OUTPUT GEAR!
2. Using a brush or other applicator, apply a thin coat of Aeroshell 33MS (Lithium-complex
based) grease to the servo output gear indicated by the arrow in Figure 6-7.

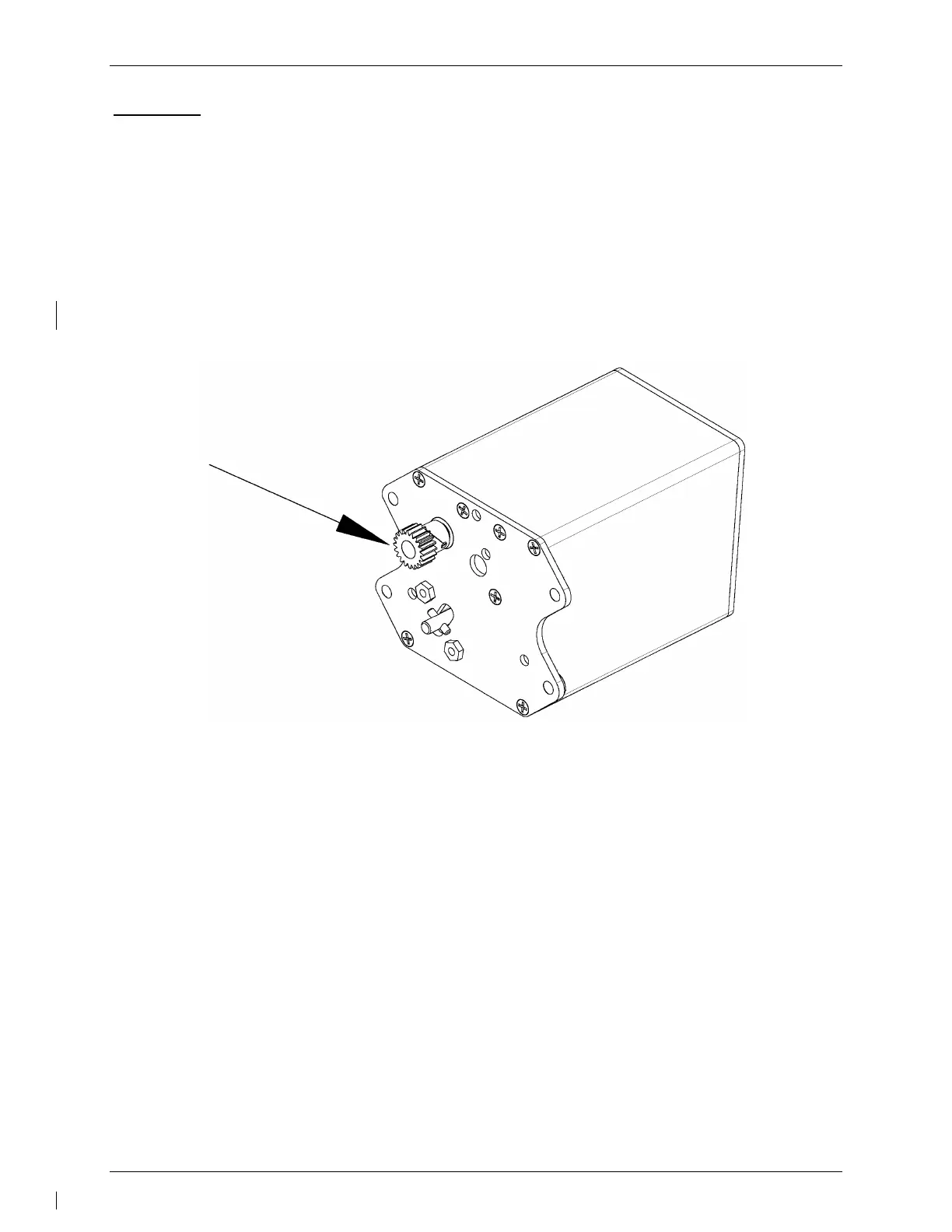

Figure 6-7 – Servo Output Gear
3. Carefully place the servo into the servo gear box.
4. Fasten the servo to the servo gear box using the existing hardware. Use the data
provided in the appropriate model-specific installation manual addendum. Refer to the
Master Drawing List 005-01009-01.
5. Inspect the harness connectors and check that no pins are bent or otherwise damaged.
Connect the harness and secure it appropriately.
6. If no further maintenance is required, continue to Section 7.7.
