GE ASTAT XT QT 0008U Series User Manual

64 • Application diagrams

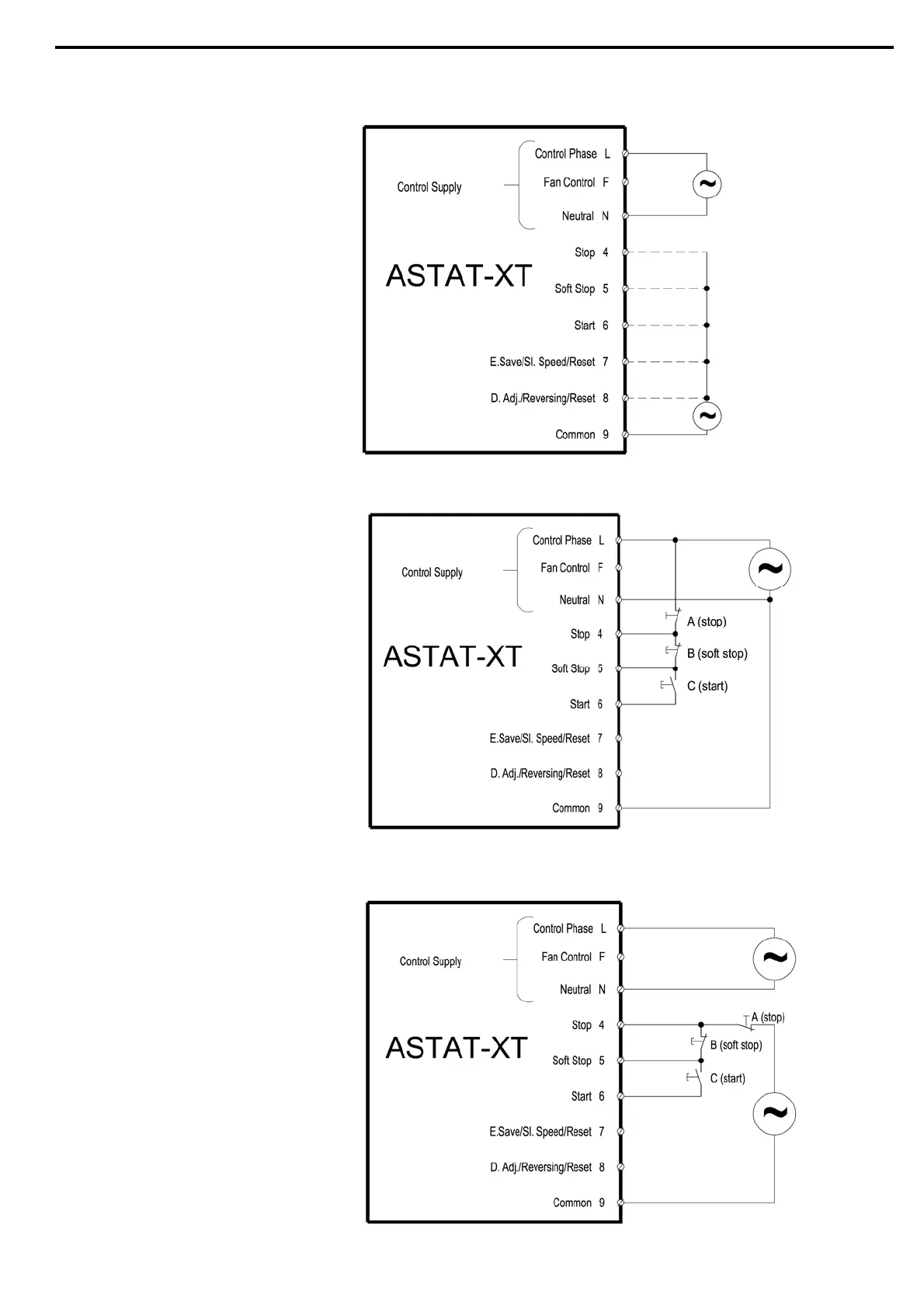

8.4 Control Supply and Control Inp
ut from Separate Sources
Notes:
• Use this diagram when Control Supply
and Control Input voltages are not
from the same source.
• Connect terminal 21 as per section 8.1
page 62.
• Supply must be protected for short
circuit and over load. 6A fuse is
recommended.
• It is recommended to use a separate
fuse for the auxiliary circuits.
8.5 Soft Start, Soft Stop and Stop, Control Supply and Control Input from the Same Source
Notes:
• Switch A can be used as an immediate
stop.
• Switch B is used as a soft stop
command to the ASTAT-XT.
• Switch C is used as a momentary or
maintained start command to the
ASTAT-XT.
8.6 Soft Start, Soft Stop and Stop, Control Sup
ply and Control Input from Separate Sources
See notes to section
8.5.
