GE ASTAT XT QT 0008U Series User Manual

65 • Application diagrams

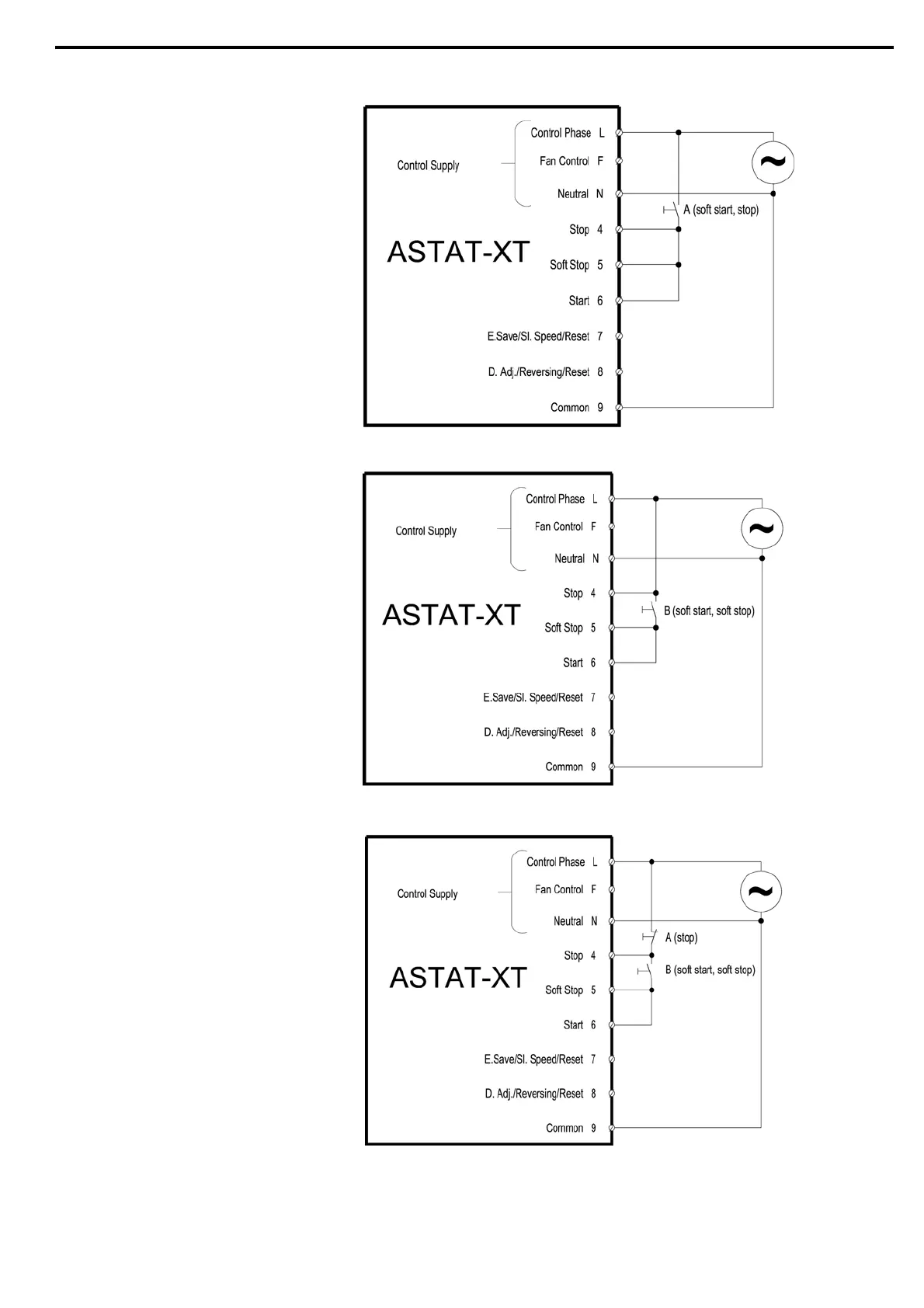

8.7 Soft Start and Immediate
Stop (no Soft Stop)
Notes:
• When switch A closes the motor will
soft start.
• When switch A opens the motor will
stop immediately (no soft stop).
• The drawing shows Control Supply
and Control Input from the same
source. Refer to section
8.6 for Control
Supply and Control Input from
separate sources.
8.8 Soft Start and Soft Stop
Notes:
• When switch B closes motor will soft
start.
• When switch B opens motor will soft
stop.
• The drawing shows Control Supply
and Control Input from the same
source. Refer to section
8.6 for Control
Supply and Control Input from
separate sources.
8.9 Soft Start, Soft Stop and Immediate Stop
Notes:
• When switch B closes motor will soft
start.
• When switch B opens motor will soft
stop.
• Switch A opens the motor will stop
immediately.
• The drawing shows Control Supply and
Control Input from the same source.
Refer to section
8.6 for Control Supply
and Control Input from separate
sources.
