GE G60 User Manual

3-6 G60 Generator Protection System GE Multilin
3.1 DESCRIPTION 3 HARDWARE
3

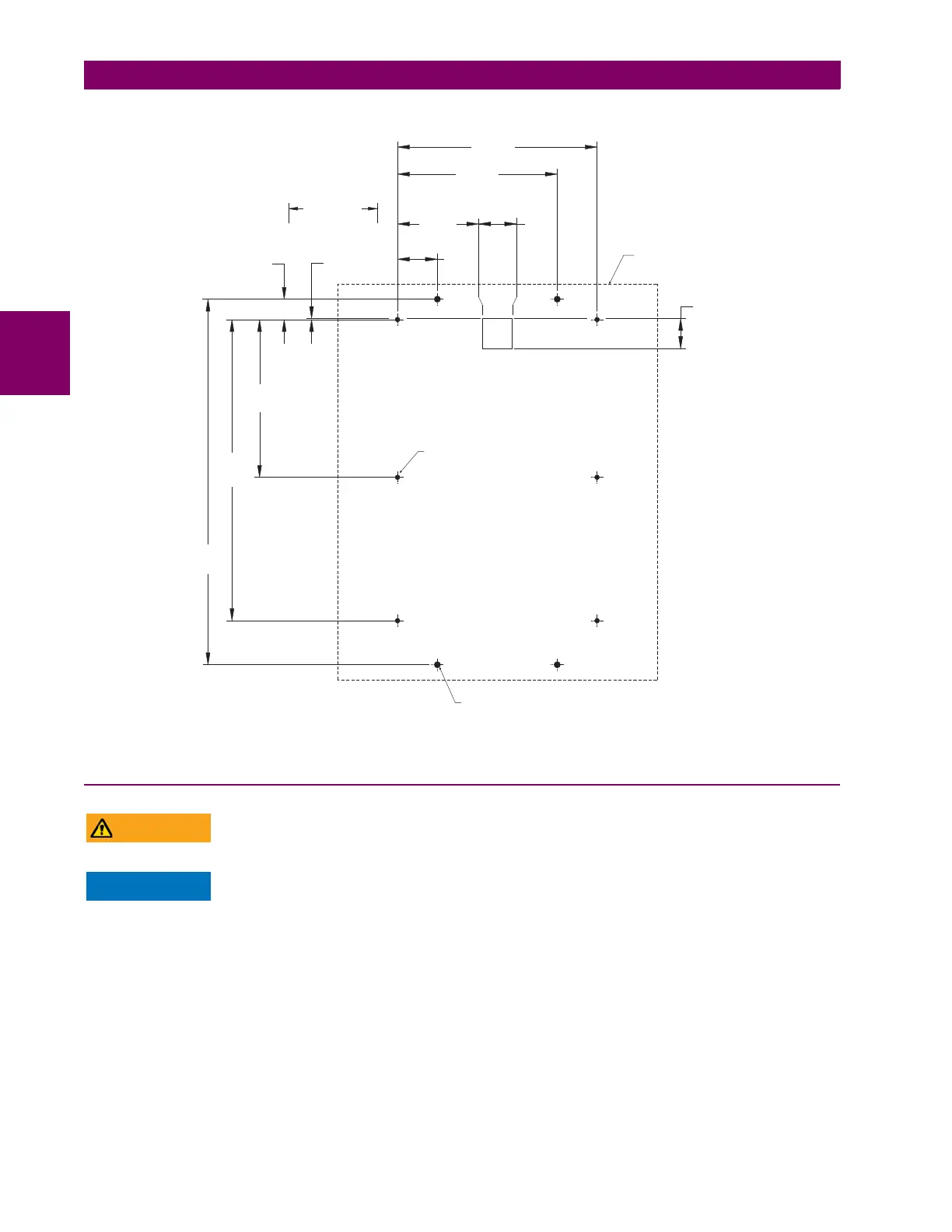

Figure 3–7: G60 VERTICAL SIDE MOUNTING REAR DIMENSIONS (STANDARD PANEL)
3.1.2 MODULE WITHDRAWAL AND INSERTION
Withdraw or insert a module only when control power has been removed from the unit, and be
sure to insert only the correct module type into a slot, else personal injury, damage to the unit
or connected equipment, or undesired operation can result.
To avoid damage to the equipment, use proper electrostatic discharge protection (for example, a
static strap) when coming in contact with modules while the relay is energized.
The relay, being modular in design, allows for the withdrawal and insertion of modules. Modules must only be replaced with
like modules in their original factory configured slots.
The enhanced faceplate can be opened to the left, once the thumb screw has been removed, as shown below. This allows
for easy accessibility of the modules for withdrawal. The new wide-angle hinge assembly in the enhanced front panel opens
completely and allows easy access to all modules in the G60.
CUT-OUT
1.33"
(33.9)
2.83"
(71.9)
6.66"
(169.2)
12.20"
(309.9)
0.159" DIA. (6 PLACES)
(4.0)
0.213" DIA. (5.4)
(4 PLACES)
SEE HOLES MARKED 'X'
INCHES
MILLIMETERS
5.33"
(135.4)
PANEL SHOWN FOR
REFERENCE ONLY
(VIEWED FROM FRONT)
'X' 'X'
'X' 'X'
1.00"
(25.4)
1.00"
(25.4)
10.05
(255.3)
"
0.04
(1.0)
"
0.68"
(17.3)
5.27
(133.8)
"
843753A3.cdr
WARNING
NOTICE
