5-40 Section 5-7 - Air Flow Control
Section 5-7
Air Flow Control
5-7-1 Air Flow Distribution
The four air flow pathes allow the scanner to be cooled down as shown in the figure above.
• Path A (Front lower > TRICON > Front Upper) for TRICON cooling.
• Path B (Bottom right > Filter > LV/HV unit > Bottom left) for LV and HV unit cooling.
• Path C (Bottom right > Filter > NEST Assy > Duct > Rear upper) for NEST Assy cooling.
• Path D (Bottom left > PC Box > Rear Upper) for PC Box cooling.
5-7-2 Filters
The scanner contains the two filters located at:
- Bottom right for air flow of the NEST Assy, LV unit, and HV unit.
- Bottom left for air flow of the PC Box.

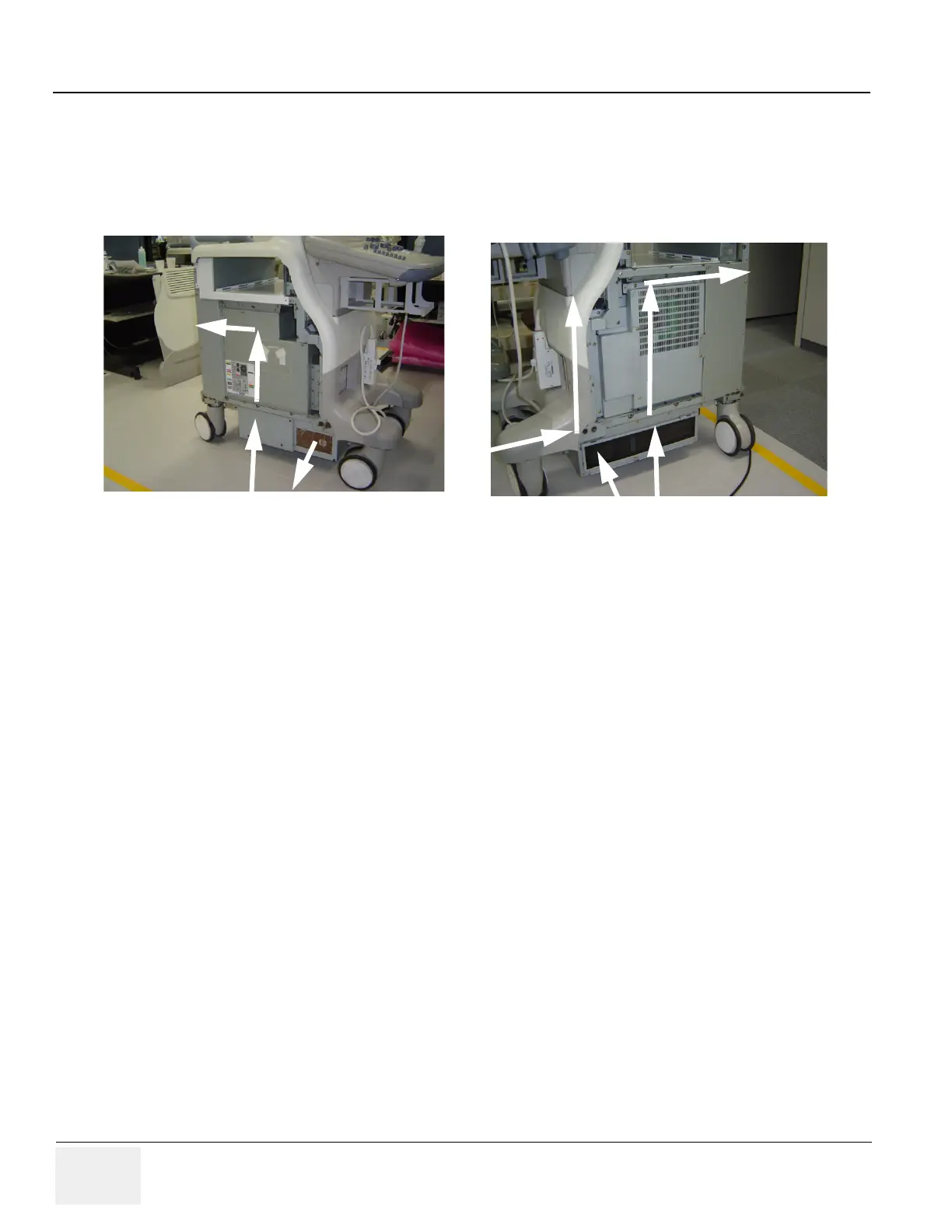

Figure 5-71 Air Flow Inside the Scanner
A
B
C
D
B
To Next Page
