4-2 Section 4-2 - General Procedure
Section 4-2
General Procedure
4-2-1 Lockout/Tagout Requirements
Follow OSHA Lockout/Tagout requirements by ensuring you are in total control of the plug.
4-2-2 Power On/Boot Up
NOTE: After turning off the system, wait at least ten seconds before turning it on again. The system
may not be able to boot if power is recycled too quickly.
4-2-2-1 Power Up
1.) Connect the Main Power Cable at the rear of the System.
2.) Connect the Main Power cable to an appropriate mains power outlet.
3.) Switch ON the Main Circuit Breaker (Equipotential terminal) at the rear of the System.
When power is applied to the Scanner, and the Rear Circuit breaker is turned ON, Power is distributed
to the Fans, Control panel, Monitor, Internal and External I/O’s, Cage Boards, Peripherals and the
Backend Processor. When the Power ON/OFF key is pressed once, the Backend Processor starts and
its software code is distributed to initiate the scanner.
CAUTION
SYSTEM REQUIRES ALL COVERS
Operate this unit only when all board covers and frame panels are securely in place. The covers
are required for safe operation, good system performance and cooling purposes.
WARNINGWARNING
PROTECTIVE EARTH MUST BE TAKEN WHEN CONNECTING AC POWER CABLE
(200V) WITHOUT ITS PLUG TO WALL OUTLET.

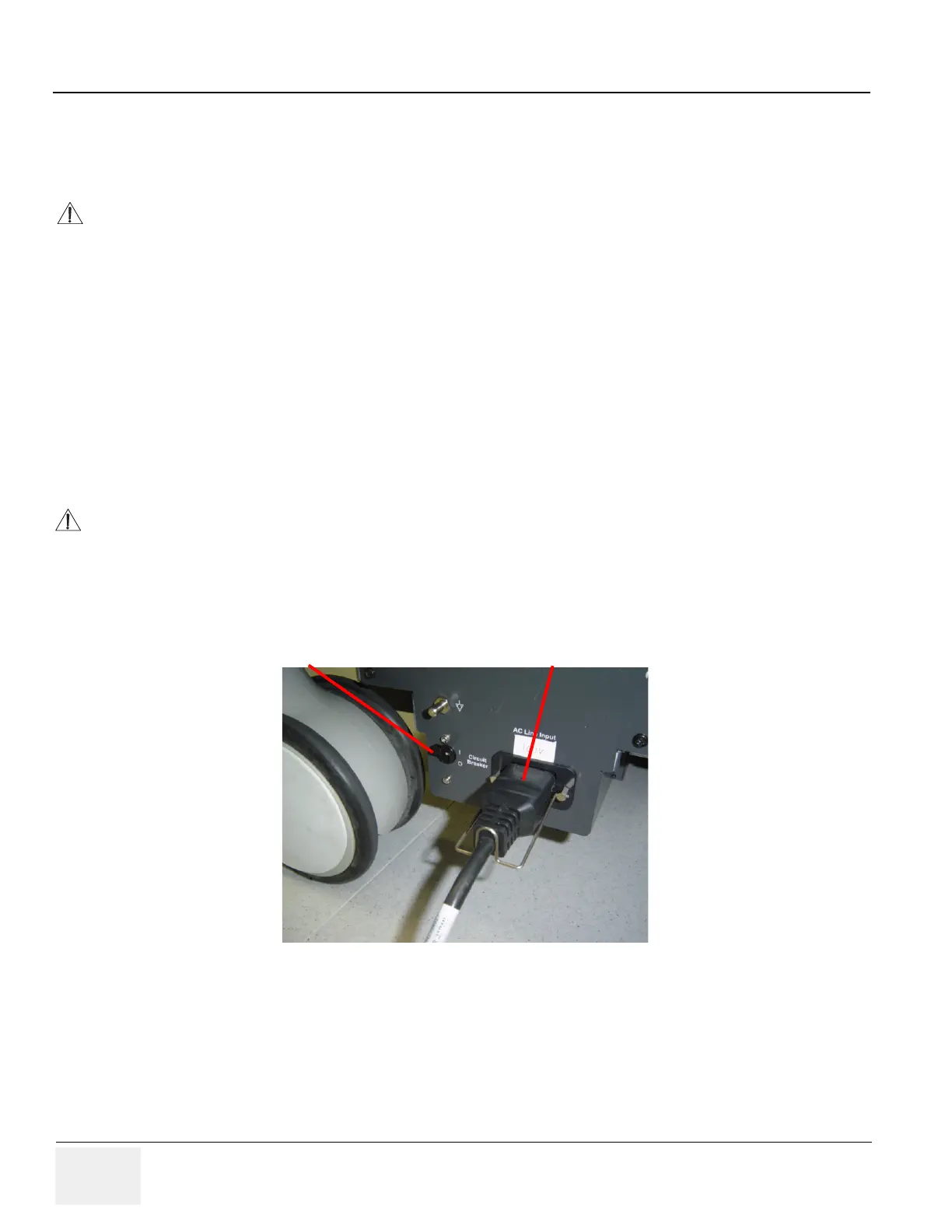

Figure 4-11 Circuit Breaker
Main Circuit Breaker
Main Power Cable
