DIRECTION 5162630, REVISION 3 LOGIQ™ S6 SERVICE MANUAL
Section 6-2 - Caster Brake/Swivel Function Adjustments 6-5
6-2-1-2 The Pedal does NOT lock even if the pedal is depressed (cont’d)
2.) Rotate the right adjusting bolts two turns
as shown. Perform this procedure at the left adjusting bolt.
3.) Tighten the left and right adjusting lock bolts.
4.) Verify that lock is applied when the brake pedal is depressed. If it is not, repeat steps 1 to 3.
6-2-1-3 Caster lock/swivel does NOT lock even if the pedal is locked in position
1.) Loosen the left and right adjuster lock bolts.

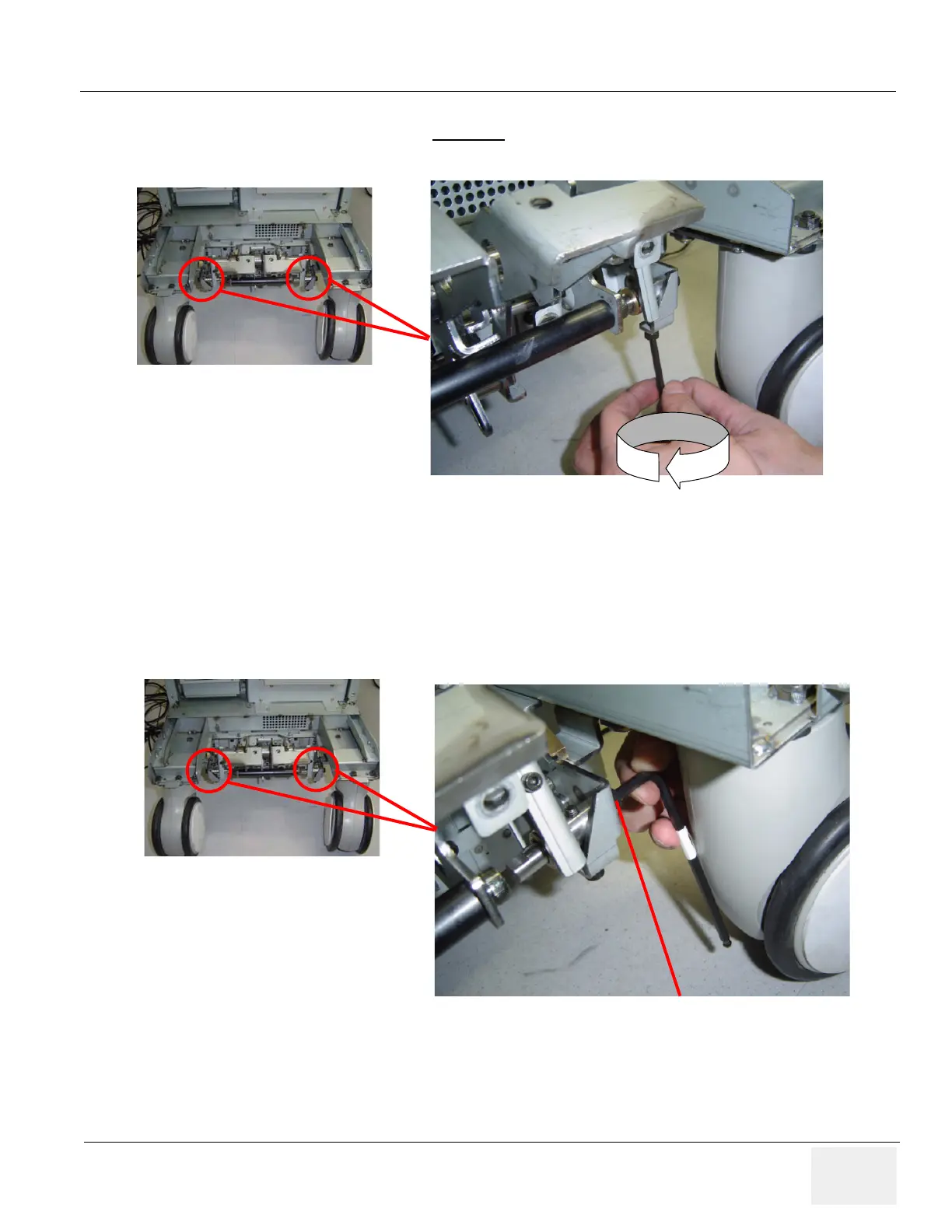

Figure 6-77 Rotating the bolts two turns
Figure 6-78 The left and right adjuster lock bolts
Adjuster Lock Bolt (each)
