8.4 USING MM2PC
®
8.4.1 SAVING SETPOINTS TO A FILE
MM2 setpoint filenames should follow standard DOS file naming convention: eight
characters, a period, and a three character extension (for example,
SPF_V340.MM2
).
Use the following procedure to save the current setpoints for use at a later date:
1. Start MM2PC
®
and establish communications with the MM2.
2. Select the File > Save As menu item. Enter the filename for the saved setpoints in the File Name
box or select any of the displayed file names to update them. All MM2 setpoint files should have
the extension MM2 (for example, MOTOR5.MM2). Click OK to save the setpoint file.
Use the following procedure when setting commissioning values for multiple MM2s or when an MM2
is not communicating or connected to the computer.
1. Start MM2PC
®
and select File > New to enter setpoint values for the specific off-line MM2. If the
software is communicating with the MM2, communications will be halted during the new file cre-

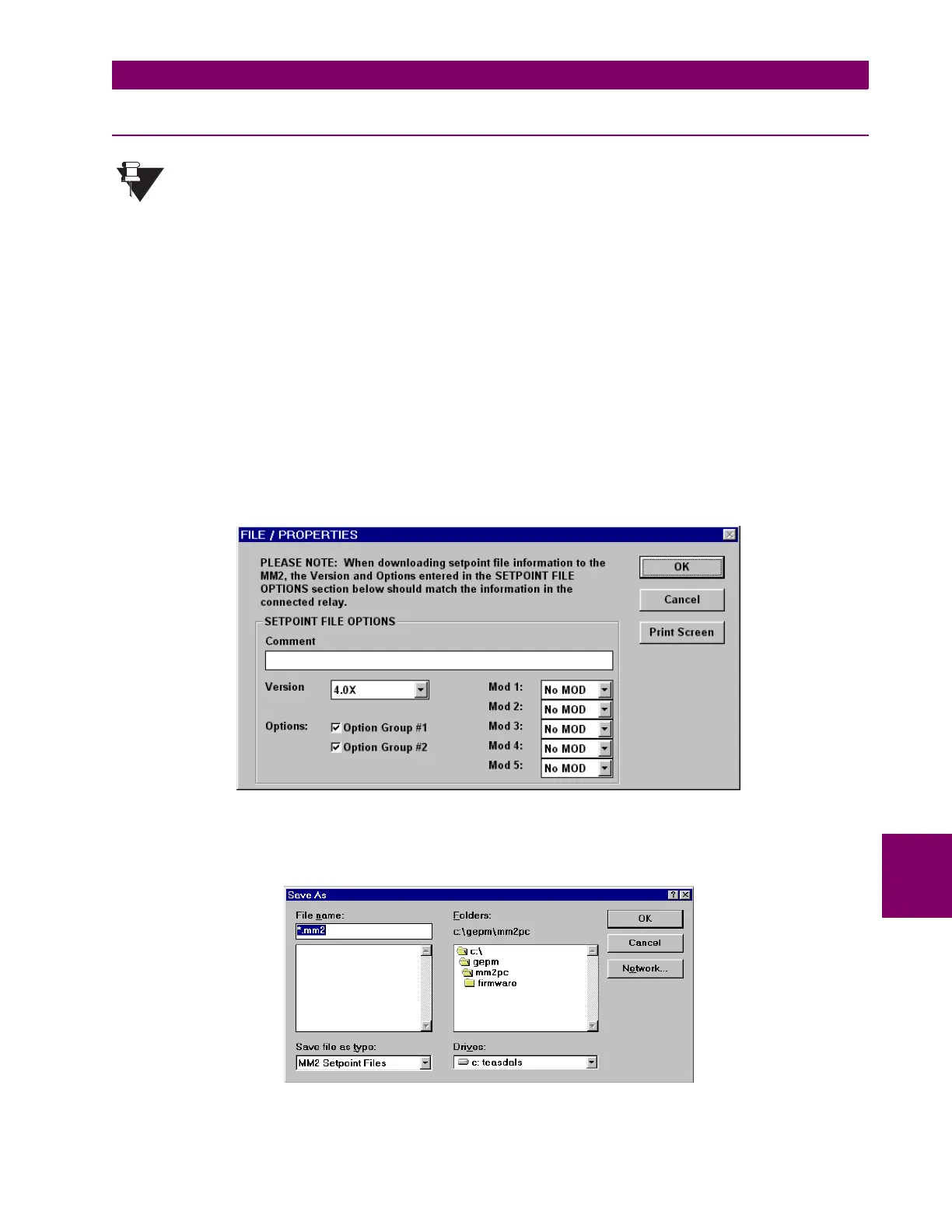

ation. The window shown below appears which allows the user to configure MM2 for the options
ordered with a particular MM2 unit. MM2PC
®
needs to know the correct options when creating a
setpoint file so that setpoints not available for a particular unit are not downloaded.
2. Select the installed options and firmware version then make the appropriate setpoints changes.
After configuration, select the File >Save As menu item. This launches the dialog box shown
below. Enter the file name for the saved setpoints or select a displayed file name for updating. All
MM2 setpoint files should have the extension MM2 (e.g., MOTOR4.MM2). Click OK to proceed.
3. MM2PC
®
reads the entered setpoint values and saves them in the selected file.
NOTE
