GE MOTOR MANAGER 2 User Manual

8-10 MM2 Motor Manager 2
GE Power Management
8.4 USING MM2PC
®
8 MM2PC
®
SOFTWARE
8
8.4.4 ENTERING SETPOINTS
The following
example
illustrates how to enter setpoints from MM2PC
®
.
1. Select the Setpoint > Protection > Motor Protection menu item.

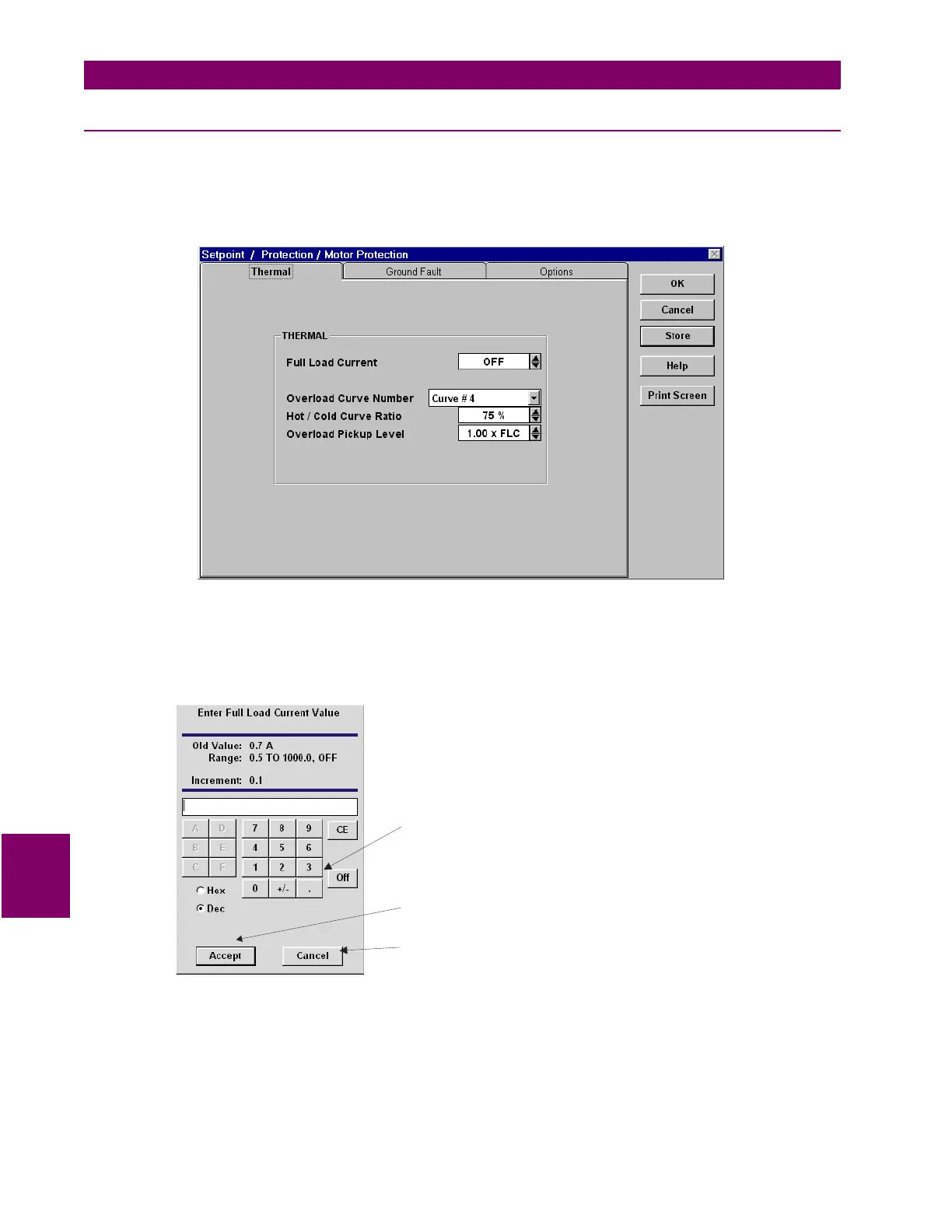

2. The following window prompts the user for motor protection information.
3. For numerical setpoints (in the example above, FULL LOAD CURRENT, HOT/COLD CURVE RATIO, and
OVERLOAD PICKUP LEVEL), click the
s
/
t
arrow keys at the end of the dialog box to increment/dec-
rement the setpoint by its step value. Alternately, click the mouse pointer anywhere inside the
setpoint box to display a numerical keypad showing the OLD value, RANGE, and INCREMENT
of the setpoint value being modified.
4. For setpoints requiring a non-numeric value (in the example above, OVERLOAD CURVE NUMBER),
click anywhere inside the setpoint box to open a drop-down menu. An appropriate setpoint may
then be selected.
5. After setpoint modifications are complete, click the OK to save the values into the local PC mem-
ory, Cancel to return to the previous values, or Store to send the values to the MM2 (if con-
nected). Clicking on Help displays help topics related to the setpoints being modified.
Enter the new value by clicking on the numerical keys.
Click to exit the keypad and keep the new value.Accept
Click to exit the keypad and keep the old valueCancel
