GE MOTOR MANAGER 2 User Manual

GE Power Management
MM2 Motor Manager 2 9-17
9 STARTER TYPES 9.6 INVERTER STARTER
9
9.6 INVERTER STARTER 9.6.1 DESCRIPTION
When the RUN contact closes the inverter ramps up the motor to the programmed speed. When the
RUN contact opens, the inverter ramps down the motor to a stop.

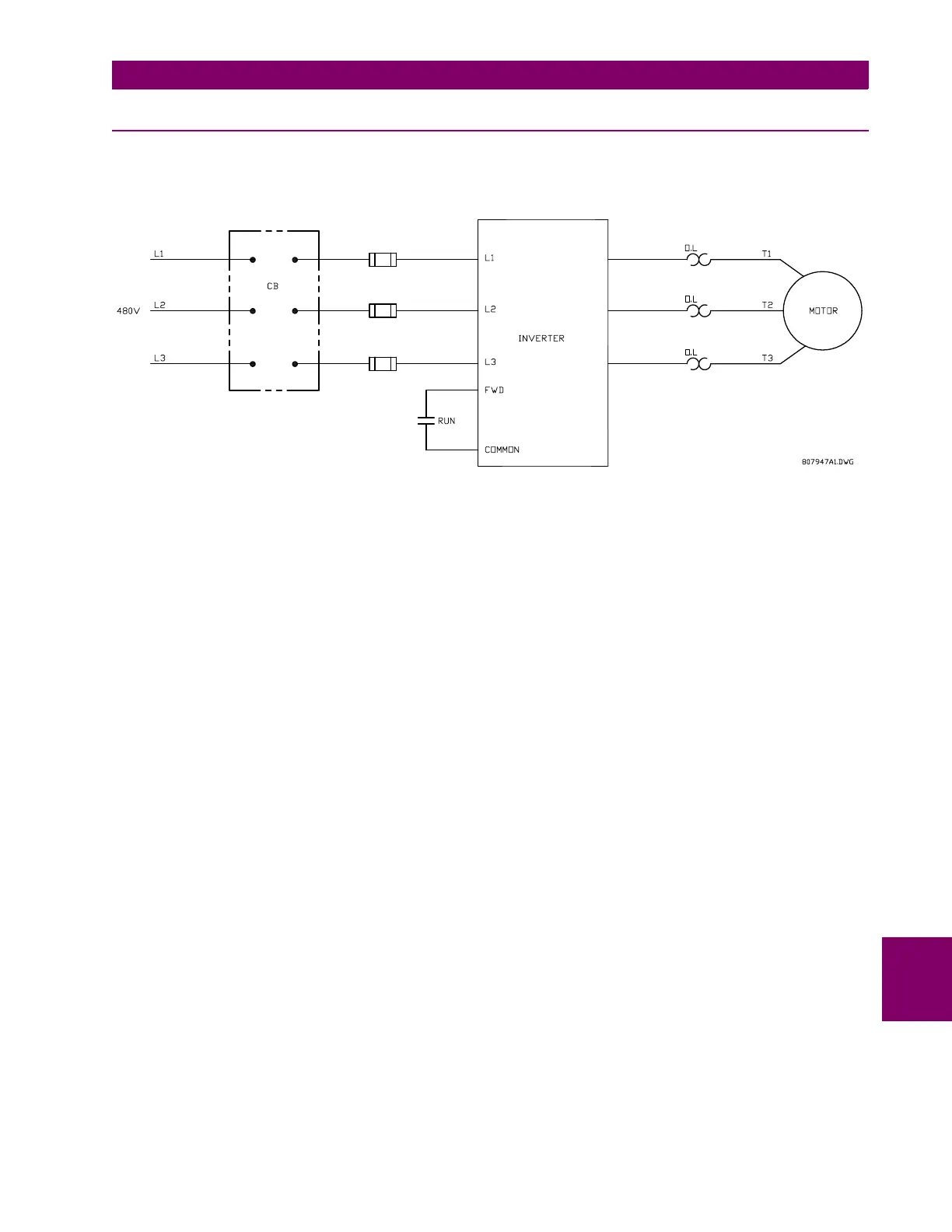

Figure 9–13: ELEMENTARY INVERTER STARTER
To program the MM2 for inverter starter, set:
S1 CONFIGURATION\STARTER\STARTER TYPE: INVERTER
S1 CONFIGURATION\STARTER\RAMP UP TIME: 1 to 125 sec.
S1 CONFIGURATION\STARTER\RAMP DOWN TIME: 1 to 125 sec.
The RAMP UP TIME and RAMP DOWN TIME setpoints appear when the STARTER TYPE is selected as
INVERTER. See the next section for details on functionality.
