CHAPTER 5: SETTINGS CONTROL ELEMENTS
T35 TRANSFORMER PROTECTION SYSTEM – INSTRUCTION MANUAL 5-233
5

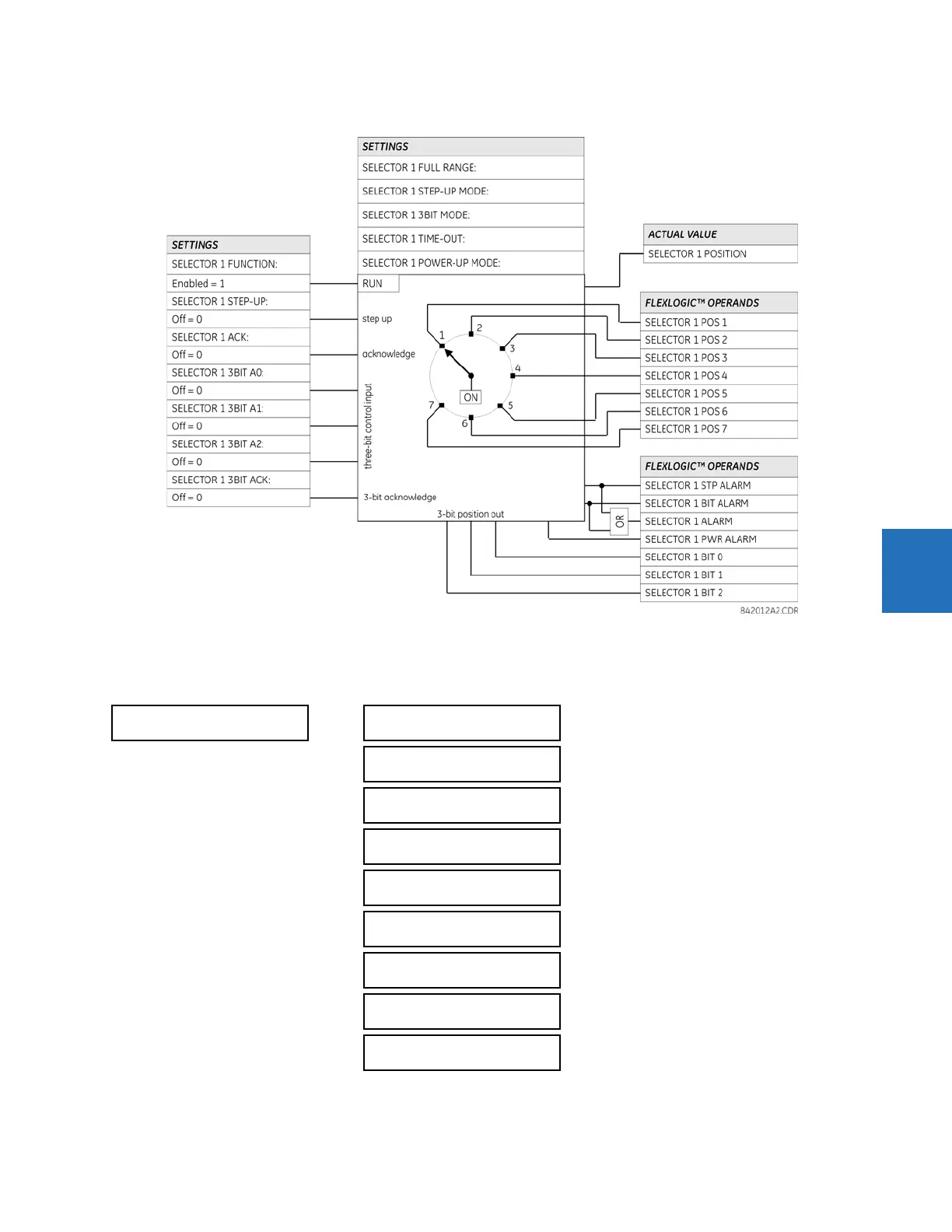

Figure 5-121: Selector switch logic
5.8.5 Digital elements
SETTINGS  CONTROL ELEMENTS  DIGITAL ELEMENTS  DIGITAL ELEMENT 1(48)
 DIGITAL ELEMENT 1


DIGITAL ELEMENT 1
FUNCTION: Disabled
Range: Disabled, Enabled

DIG ELEM 1 NAME:
Dig Element 1
Range: up to 16 alphanumeric characters

DIG ELEM 1 INPUT:
Off
Range: FlexLogic operand

DIG ELEM 1 PICKUP
DELAY: 0.000 s
Range: 0.000 to 999999.999 s in steps of 0.001

DIG ELEM 1 RESET
DELAY: 0.000 s
Range: 0.000 to 999999.999 s in steps of 0.001

DIGITAL ELEMENT 1
PICKUP LED: Enabled
Range: Disabled, Enabled

DIG ELEM 1 BLOCK:
Off
Range: FlexLogic operand

DIGITAL ELEMENT 1
TARGET: Self-reset
Range: Self-reset, Latched, Disabled

DIGITAL ELEMENT 1
EVENTS: Disabled
Range: Disabled, Enabled
