GE Voluson E8 Service Manual

GE HEALTHCAREDRAFT VOLUSON E8 / VOLUSON E6
D
IRECTION KTD102576, REVISION 7 DRAFT (AUGUST 23, 2012) SERVICE MANUAL
Chapter 6 - Service Adjustments 6-9
Section 6-6
Modification of Keyboard Layout
NOTE: Configuring the layout of the keyboard is only useful by changing the concerned keys also.
see: Section 8-13 "Replacement of Key Caps (by special native language keys)" on page 8-21.
6-6-1 Setup the Voluson E8 / Voluson E6 Keyboard Language Layout
1.) Press the UTILITIES key on the control panel.
2.) In the “Utilities” menu touch SYSTEM SETUP
to invoke the setup desktop on the screen.
3.) On the left side of the screen select ADMINISTRATION
and then click the SERVICE tab.
The “password window” appears automatically.
4.) Enter the password SHE and click the ACCEPT
button to display the Service Tools window.
5.) Click on the KEYBOARD LAYOUT
button.

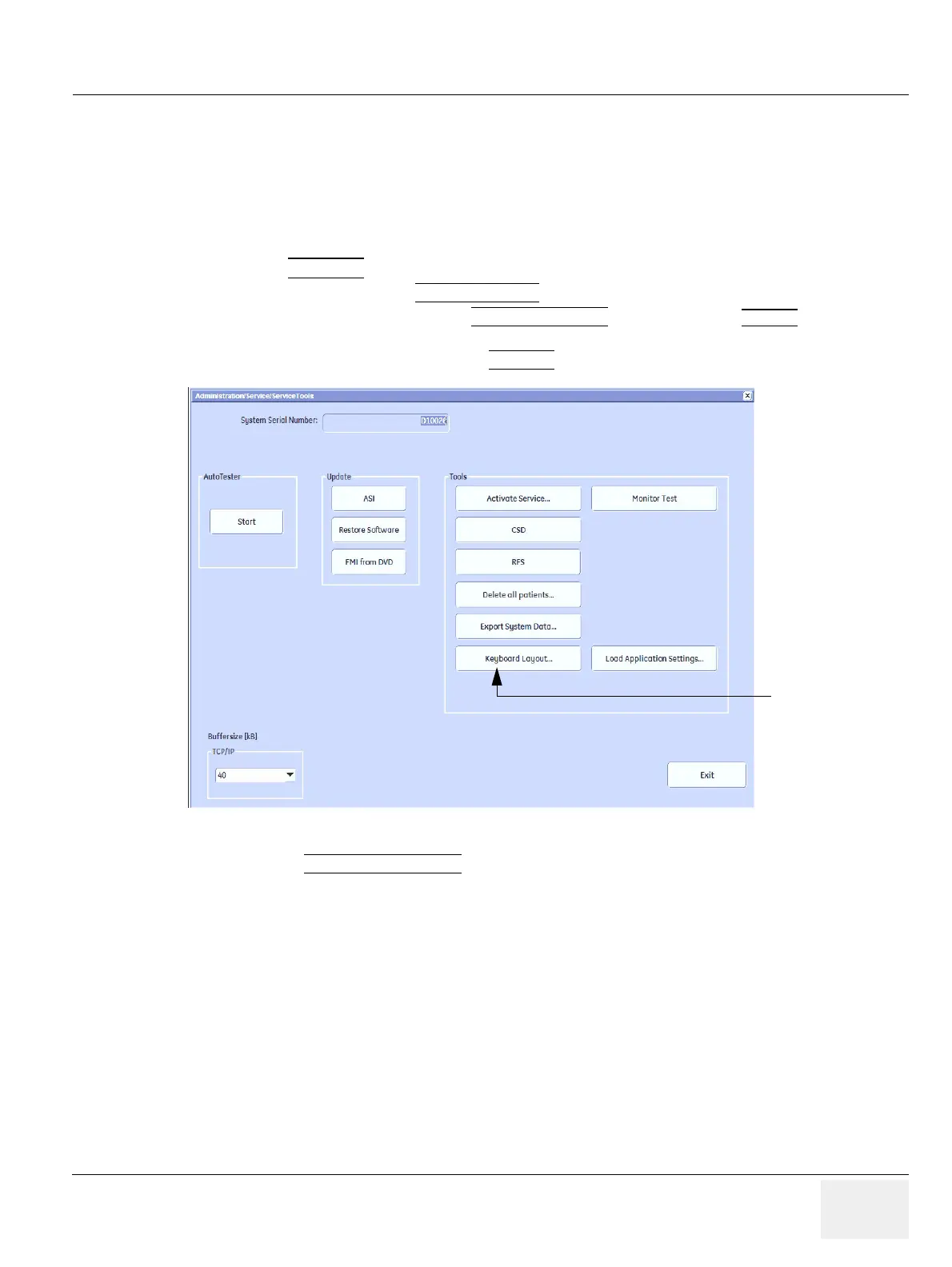

Figure 6-9 Service Tools window
[Keyboard Layout]
button
