GE Voluson E8 Service Manual

GE HEALTHCAREDRAFT VOLUSON E8 / VOLUSON E6
D
IRECTION KTD102576, REVISION 7 DRAFT (AUGUST 23, 2012) SERVICE MANUAL
Chapter 9 - Renewal Parts 9-41
9-13-2 2D-Probes - Linear Array Transducers

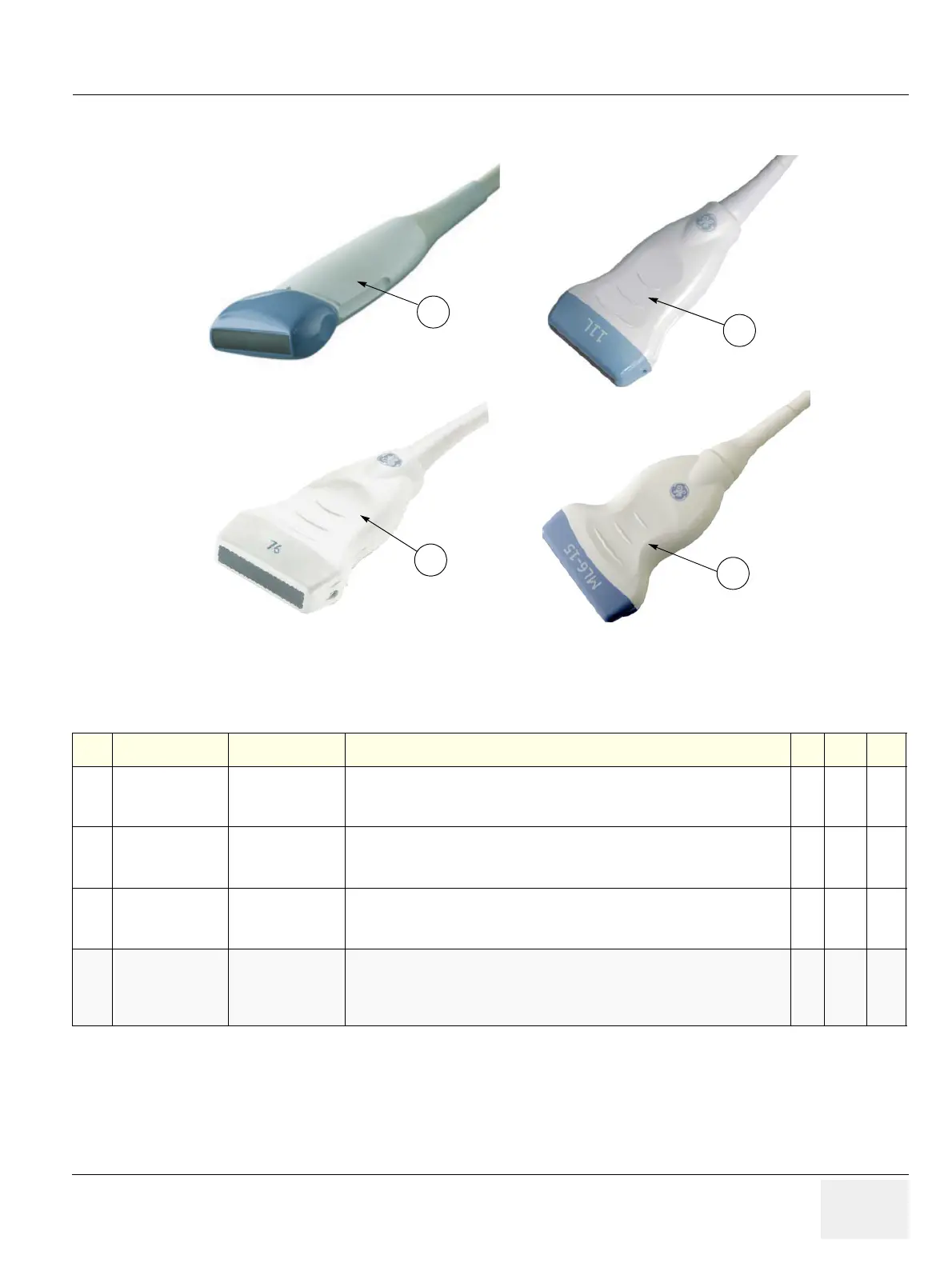

Figure 9-17 2D linear array Transducers
Table 9-23 2D linear array Transducers
Item Part Name Part Number Description Qty CRU FRU
910 SP10-16-D
KTZ157047
(H48651MT)
broadband linear array transducer, 7.0 - 18.0 MHz, 192 Elements,
electronically steerable
Applications: Small Parts, Peripheral Vascular, Pediatrics, Orthopedics
-YY
911 11L-D
KTZ157048
(H40432LN)
broadband linear array transducer, 4.0 - 10.0 MHz, 192 Elements,
electronically steerable
Applications: Small Parts, Peripheral Vascular, Pediatrics, Orthopedics
-YY
912 9L-D
KTZ280048
(H40442LM)
broadband linear array transducer, 3.0 - 8.0 MHz, 192 Elements,
electronically steerable
Applications: Small Parts, Peripheral Vascular, Pediatrics, Orthopedics
-YY
913
ML6-15-D*
5271060
(H40452LG)
1,25D Matrix linear array transducer, 4.0 - 13.0 MHz,
336 Elements / 3 rows (= 1008)
Applications: Small-Part (Breast), Peripheral Vascular, Pediatrics,
Orthopedics (Musculoskeletal), Neonatal, Urology
- Y Y
910
911
912
913

GE Voluson E8 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Connectivity	DICOM, USB, Ethernet
Power Requirements	100-240 V AC, 50/60 Hz
Applications	Obstetrics, Gynecology, Cardiology
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler
Transducer Ports	4 active transducer ports
Image Storage	Internal hard drive, USB storage
Transducer Types	Linear, Endocavitary
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
