Hardi COMMANDER 7000 User Manual

3 - Description
23

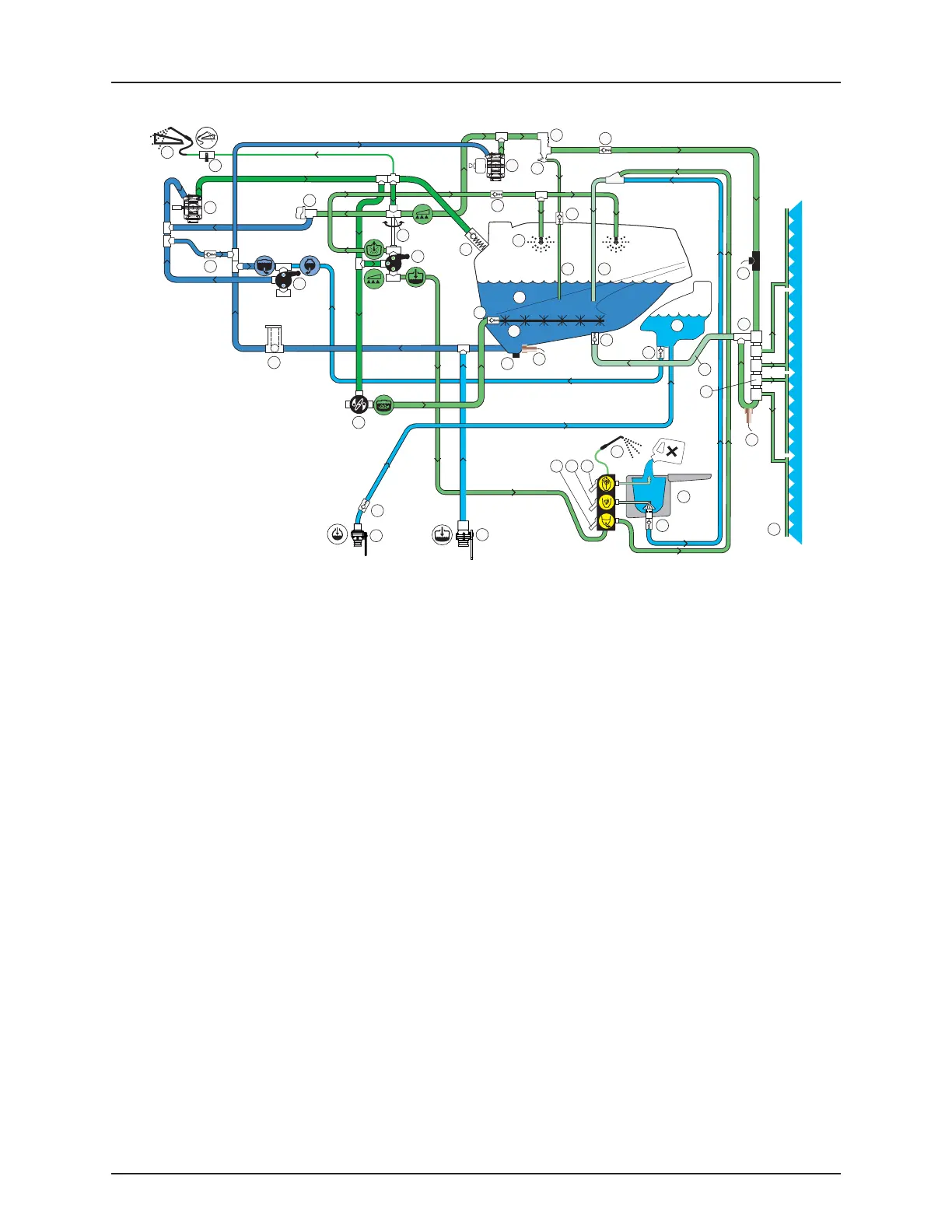

Diagram - Liquid system with optional extras
1. Suction SmartValve
2. Pressure SmartValve
3. Agitation valve
4. Chemical container cleaning valve
5. TurboDeflector ON/OFF valve
6. TurboFiller suction ON/OFF valve
7. Pump
8. Main tank
9. EasyClean filter
10. RinseTank
11. Spray valve
12. CycloneFilter
13. Boost valve
14. Return line for boost function
15. TurboFiller
16. Wand for cleaning TurboFiller
17. TurboFiller to tank tube
18. Safety valve
19. Internal tank rinsing nozzles
20. Agitation tube
21. Main Tank Quick Fill coupler
22. Rinse Tank Quick Fill coupler
23. DynamicFluid4 pressure regulation valve
24. One-way valve
25. Drain valve
26. Sprayer boom
27. Flow meter
28. Bypass valve
29. Boom pressure sensor
30. Distribution valves
31. Return from distribution valves
Options
32. Main tank gauge sensor
33. External cleaning device
34. External cleaning ON/OFF valve
35. FlexCapacity pump
33
9
24
32
25
20
24
10
24
1
2
18
19
24
8
14 17
24
23
7
3
11
16
6
15
24
5 4
34
22
21
24
35
24
30
29
28
24
12
13
31
27
26
