4 - Sprayer setup
36
Mechanical connections

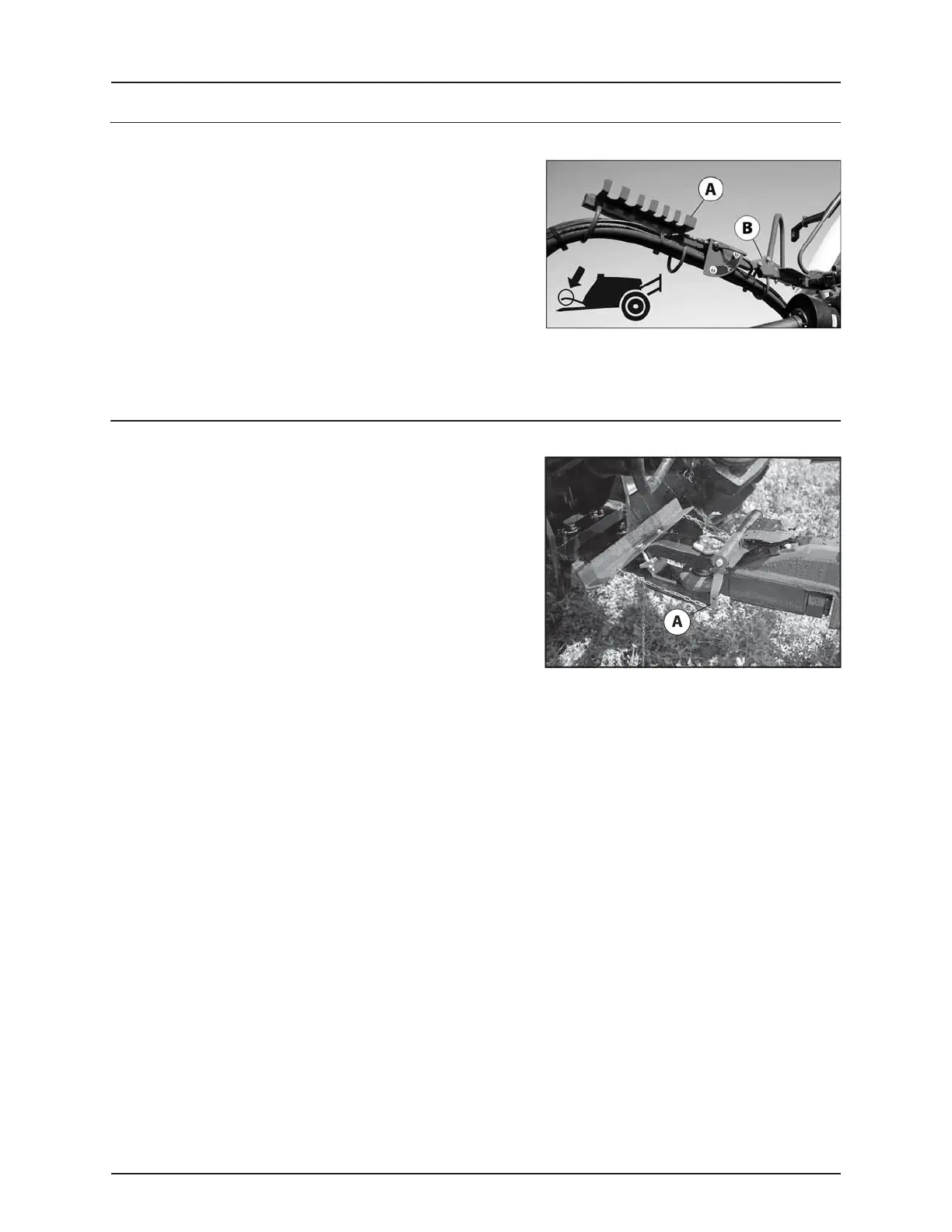

Hose package support
To prevent hoses and wiring from being damaged by the tractor wheels,
P.T.O. shaft etc. all hoses, cables and wires are held by the hose package
support fitted to the sprayer platform.
The bracket (A) is for the storing of hydraulic and electric connectors etc.
when the sprayer is disconnected from the tractor. The height of the
bracket can be adjusted by the means of the bolts (B).
ATTENTION! Check that the length of the hoses and cables are
sufficient by tight turns.
ATTENTION! A sprayer with SafeTrack requires more slack in the cables. Make sure cables are long enough in tight
turns when fully steered.
SafeTrack potentiometer connection
When connecting the SafeTrack sprayer to the tractor, it is important to
set up the front potentiometer on the drawbar correctly. The
potentiometer must be connected to the tractor with the 2 supplied
chains.
÷
NOTE! To ensure a high precision the chains must be parallel and
horizontal.
÷
NOTE! To ensure a high precision the tractor hitch point may not
have any sidewards movement.
Procedure when connecting the sprayer to the tractor:
1. Connect the sprayer.
2. Drive forward to ensure the sprayer follows the tractor in a straight line.
3. Connect the two chains for the potentiometer, while ensuring the transverse potentiometer bar is perpendicular to
the drawbar. The chains must be parallel and horizontal, and tightened so that the torsion levers (A) are vertical.
4. Check if the potentiometer is reading 2.50 Volt, i.e. in center position. Go to: HC 6500 / ISOBUS VT: Menu 4.5.4.6 Track
sensor test and check if the Front sensor reading is 2.50 Volt.
5. If the voltage reading is not correct, then adjust the chain connection until voltage = 2.50 Volt. Allowable deviation is
±0.05 Volt.
