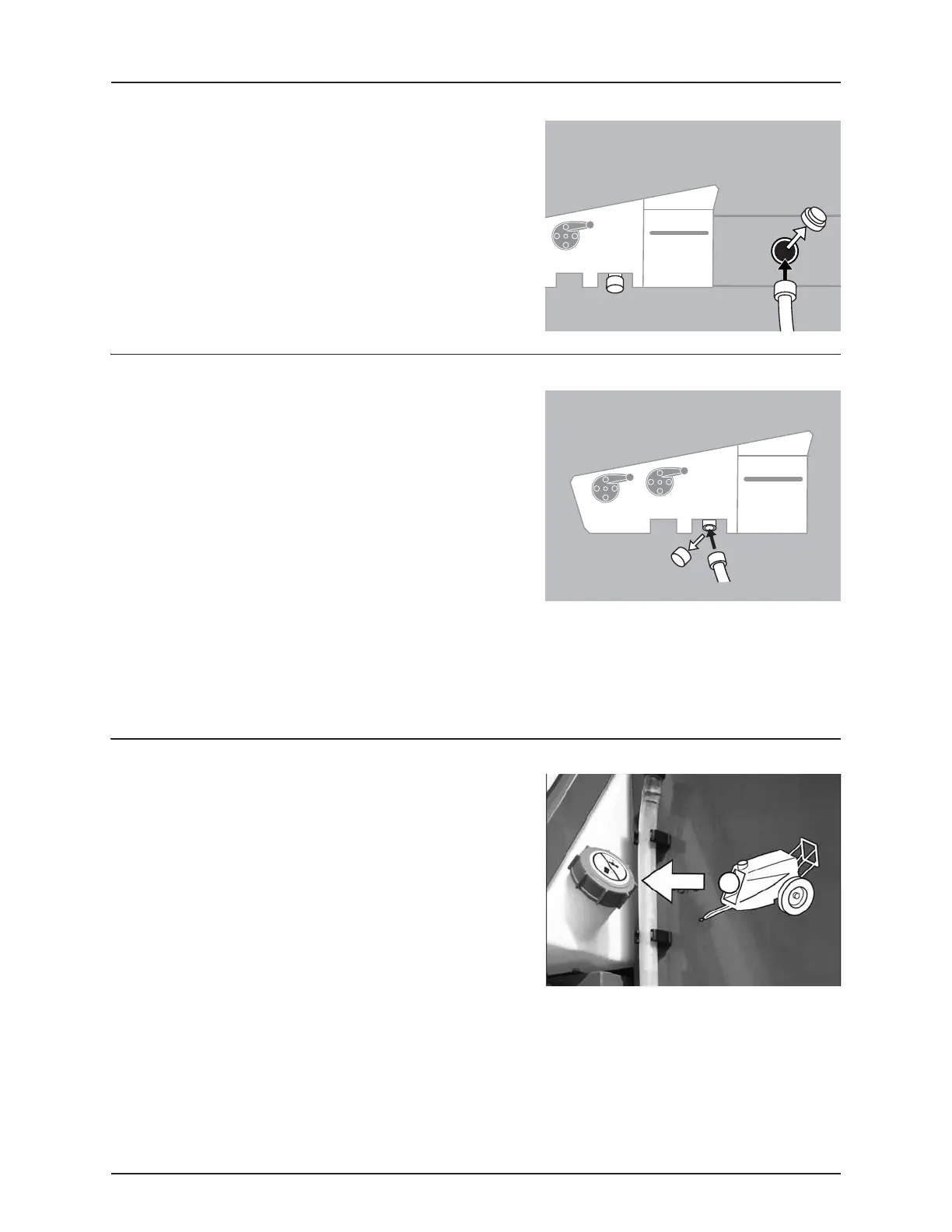

Main Tank Quick Fill
The main tank is filled via the 3” quick coupler located behind the
TurboFiller:
1. Remove plug from Quick Fill valve and connect filling hose from
water supply.
2. Open the Quick Fill valve and fill tank to desired level.
3. Keep an eye on the main tank level indicator in order not to overfill
the tank.
4. Close the Quick Fill valve and remove the filling hose.
5. Replace the plug to the Quick Fill coupler when filling is complete.
Filling of rinsing tank
The rinsing tank is filled via the 2” quick coupler at the manifold system:
1. Remove plug from Quick Fill valve and connect filling hose from
water supply.
2.
Open the Quick Fill valve and fill tank to desired level.
3. Keep an eye on the level indicator in order not to overfill the tank.
4. Close the Quick Fill valve and remove the filling hose.
5. Replace the plug to the Quick Fill coupler when filling is complete.
Capacity: approximately 120 gallons (450 liters).
ATTENTION! Only fill rinsing tank with clean water! To avoid algae developing in the rinsing tank, always drain the
rinsing tank if the sprayer is not in use for a long period of time.
ATTENTION! For cleaning purposes etc. the rinsing tank is also accessible via the tank lid on top of the tank.
Filling of clean water tank
To fill the clean water tank:
1. Remove the tank lid.
2. Fill with clean water.
3. Replace the tank lid.
For use of water:
• Turn the ball valve lever to open. The ball valve is located on the
valve cover.
The water from this tank is for hand washing, cleaning of clogged
nozzles etc. Only fill the clean water tank with clean water.
Capacity: 4.5 gal. (20 liters).
±
WARNING! Although the clean water tank is only filled with clean water, this water must NOT be used for drinking.
