Hardi COMMANDER 7000 User Manual

5 - Operation
46
Maneuvering of the FORCE™ boom
±
WARNING! The center lock automatically turns ON when pressing one of the folding buttons. Boom folding is not
possible if the center is unlocked. A manual override of the center lock is possible by activating switches 2 or 3 on the
SetBox.
±
WARNING! Only operate the folding functions when the sprayer is stationary! Failure to do so may damage the boom.
The pendulum lock automatically opens at speeds exceeding 0.9 mph (1.5 km/h)!

ATTENTION! If a folding sequence is not completed, a warning message on the Hardi display will ask you to complete
this sequence before starting next sequence.

ATTENTION! Only buttons relevant for boom functions are mentioned here.

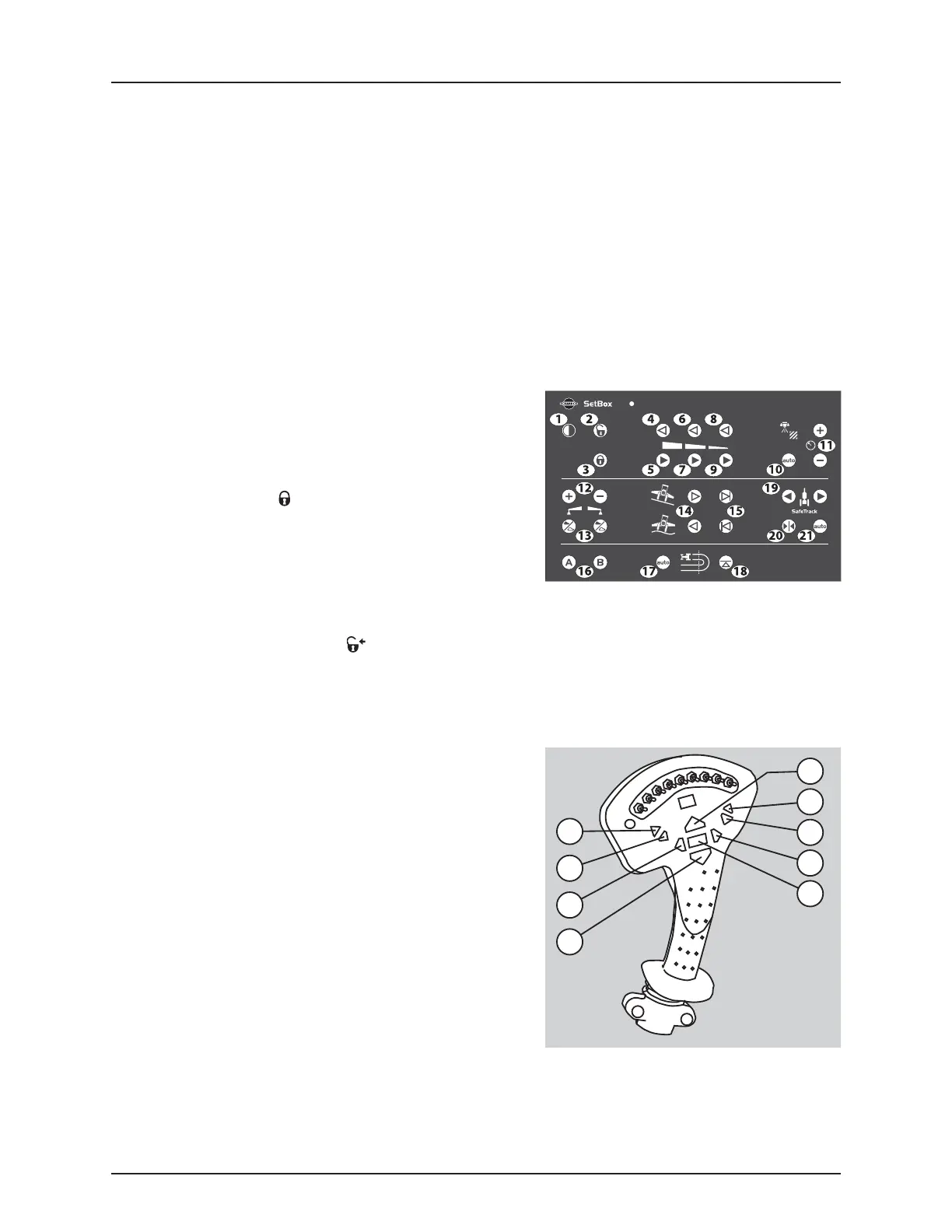

To unfold the boom using the SetBox & Grip controls
1. Press the boom lift button (H) to lift the boom clear of the transport
brackets.
2. Press and hold (A) and (C) to tilt boom wings up.
3. Press and hold button (5) to unfold the inner sections completely
(approximately 5 sec. or a warning will appear). Check that the
center locked symbol is visible in the display.
4. Press and hold (B) and (D) to tilt boom wings down.
5. Press and hold button (7) to unfold 1st outer sections.
6. Press and hold button (8) to unfold 2nd outer sections (120’-132’
tri-fold booms only).
7. Press and hold the boom down button (I) to lower the boom to the correct working height.
8. If not unlocked, then press (2) and symbol appears in display until pendulum is unlocked. This takes approximately
10 seconds.
9. WARNING! The center lock automatically opens when you begin to drive. Drive slowly until the center is completely
unlocked. The boom must be unlocked before engaging AutoTerrain system.
To fold the boom using the SetBox & Grip controls
1. Press the boom lift button (H) to raise the boom to the highest
possible position.
2. Press and hold button (8) to fold 2nd outer sections (120’-132’ tri-
fold booms only).
3. Press and hold button (6) to fold 1st outer sections.
4. Press and hold (A) and (C) to tilt boom wings up.
5. Press and hold button (4) to fold the inner sections.
6. Press the boom down button (I) to lower the boom until it rests in
the transport locks.
7. Press and hold (B) and (D) to tilt boom wings down into the
transport rests.
A
B
E
I
H
C
F
G
D
