Electrical connections
Installation of control unit brackets
Find a suitable place in the tractor cabin to mount the control units. Best
recommended position is to the right of the driver seat.

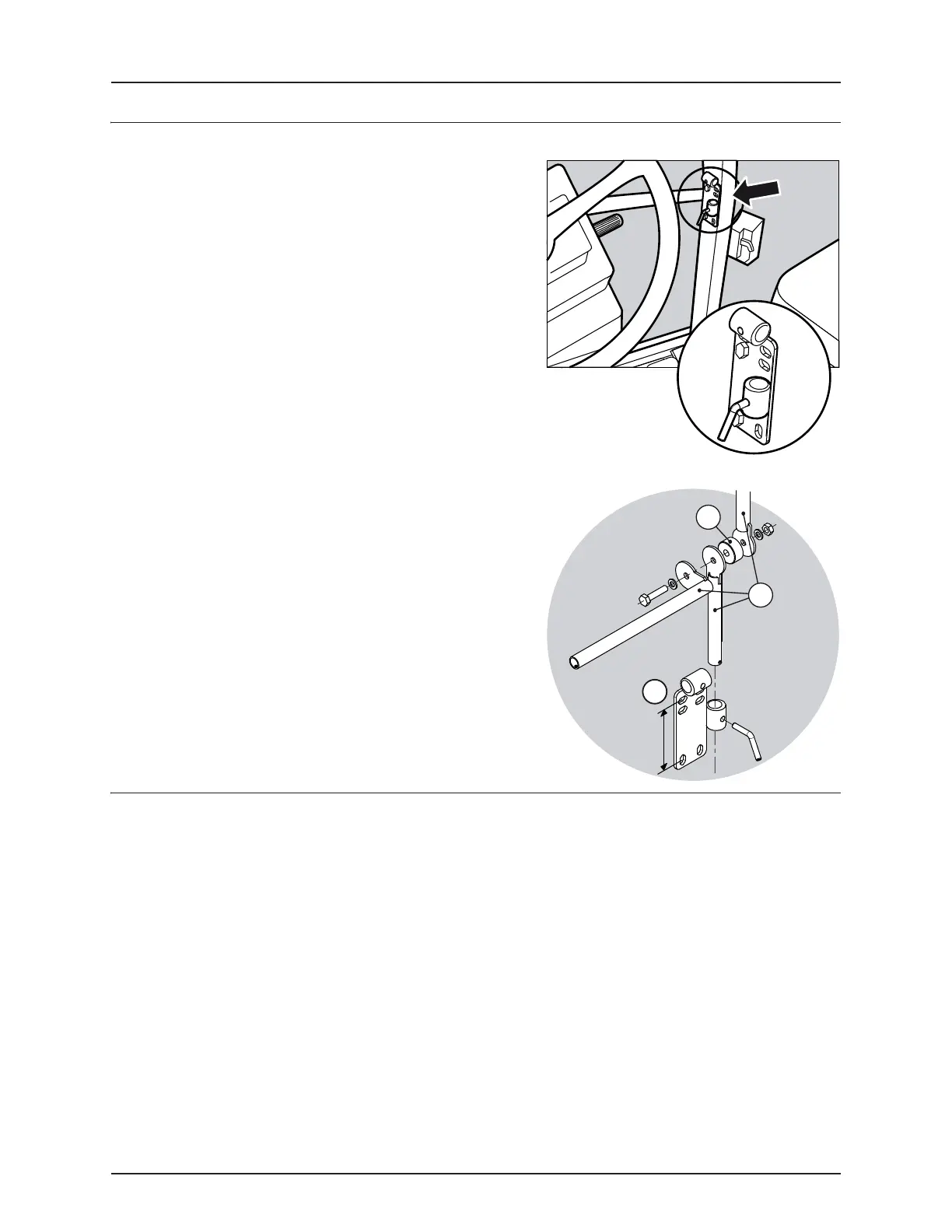

The supplied tractor pillar bracket (A) has a hole spacing of 3.9 in.
(100 mm) and 4.7 in. (120 mm) that fits most tractors. Threaded
mounting holes may be hidden behind front corner cover. Check tractor
instructions manual for information regarding attachment points.
Three mounting tubes (B) are supplied. One, two or all three may be
used. They can be bent and shortened. A spacer (C) is also supplied to
allow further attachment possibilities. Find the best solution for your
tractor or vehicle.
Tube (B) plate is staggered so that, if correctly orientated, all boxes will
line up.
ATTENTION! See also the controllers instruction book for further
details of fitting the controller equipment.
Road safety kit
Connect the plug for rear lights to the tractor’s 7-pin socket, and check the function of rear lights, stop lights and direction
indicators on both sides before driving.
The wiring is in accordance with ANSI/ASAE S279.11. See section “Electrical connections” on page 86.
ATTENTION! Turn OFF all work lights when driving on public roads!
